G10 Installation Guide 7.13.2 55



Connect Ethernet and SAS Cabling

Rev. 005-140228

2. Connect Ethernet cables from the G10 to the controller storage enclosure(s)—

refer to Figure 3.7.

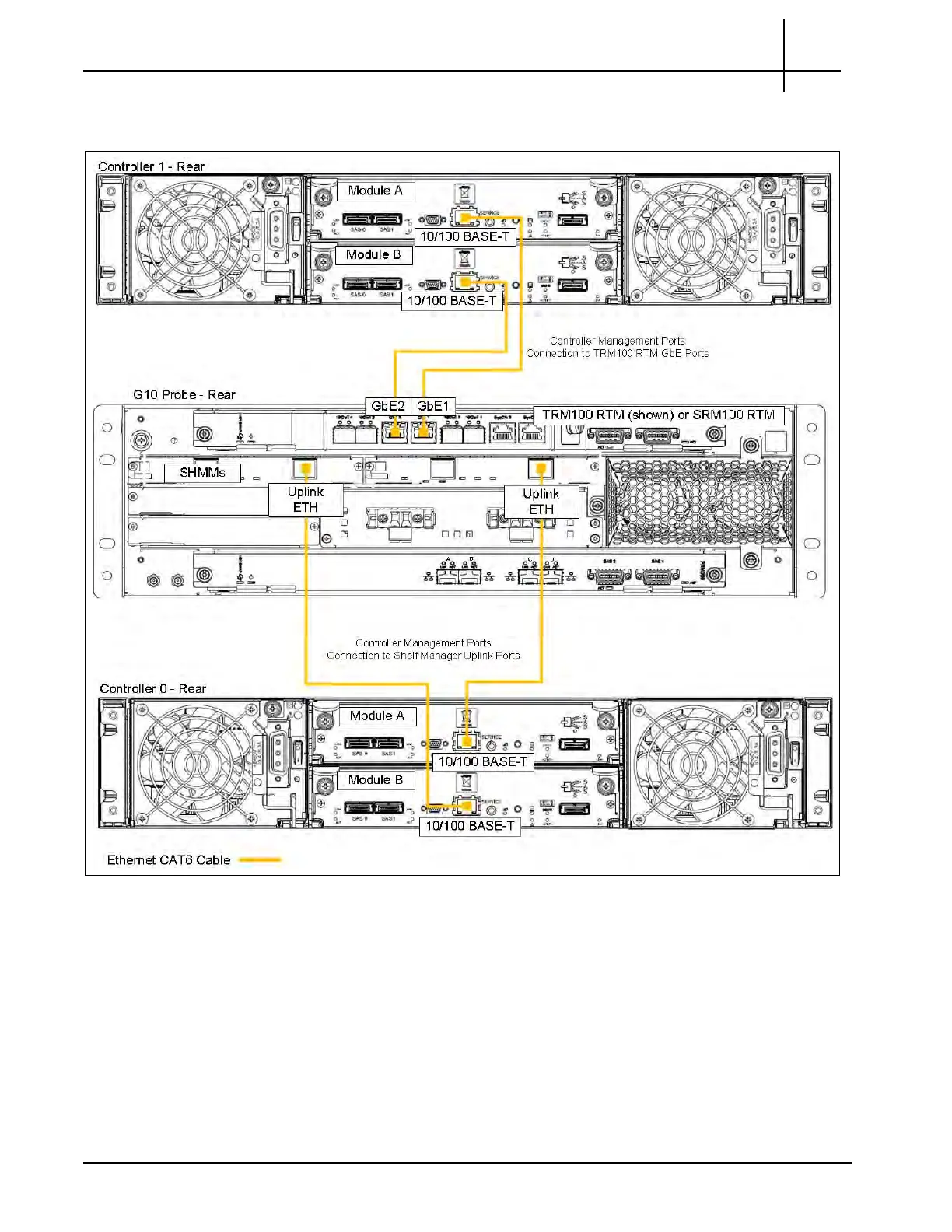

Figure 3.7 - Ethernet Connections - G10 to One or Two Controller Enclosures

3. Continue with Connect IIC100 + IAP200 SAS

Cabling

Tektronix Communications | For Licensed Users | Unauthorized Duplication and Distribution Prohibited
