Connect Ethernet and SAS Cabling
Rev. 005-140228
Controller Enclosure to Expansion Enclosures SAS Connections
Use Figure 3.9 to connect SAS cables from the controller enclosure to the expansion
enclosures. Each controller enclosure supports
three expansion enclosures. Then continue
with Power On the System.

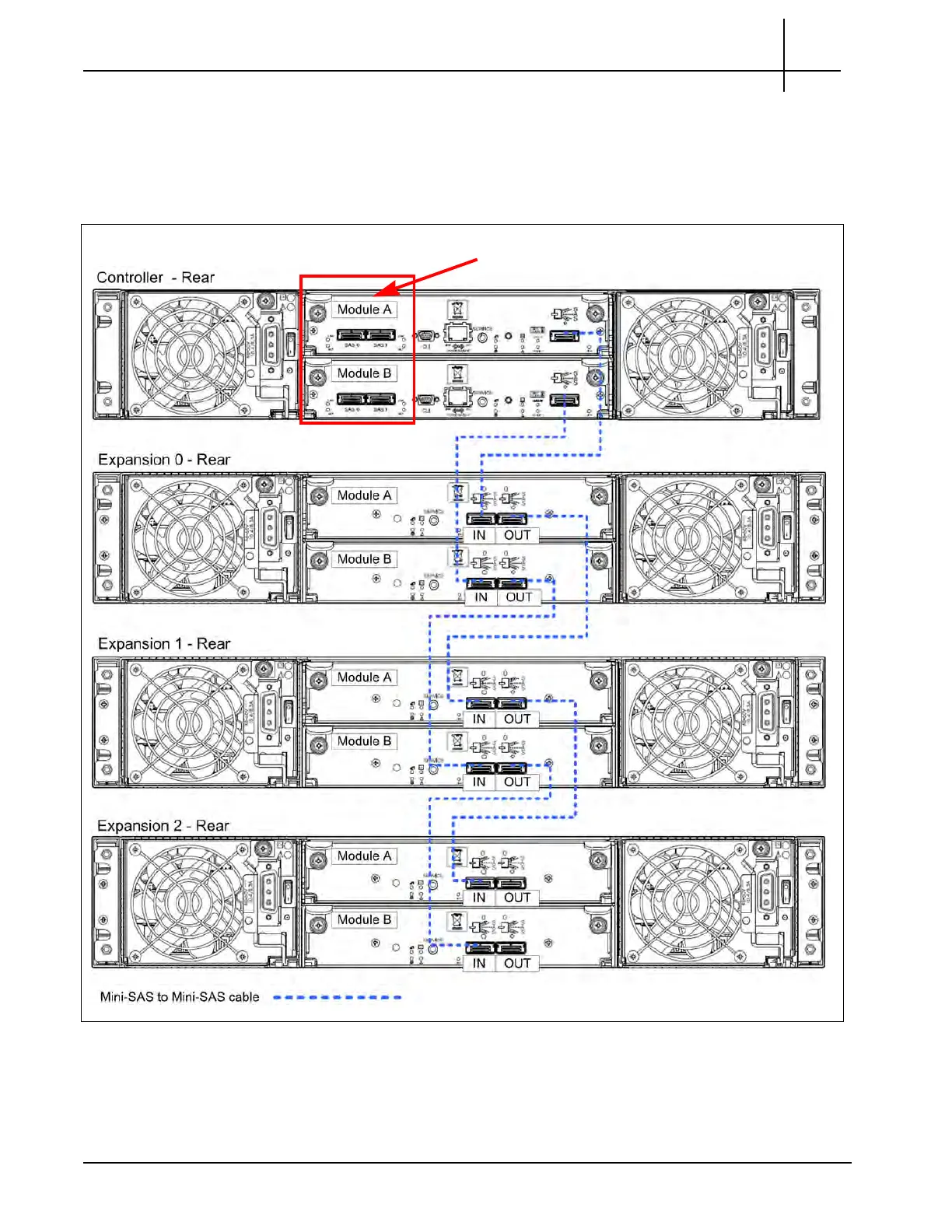

Figure 3.9 - SAS Connections - Controller Enclosure to Expansion Enclosures
SAS Cabling to G10 - see Figure 3.8
