G10 Installation Guide 7.13.2 58
3
Connect Ethernet and SAS Cabling
Rev. 005-140228
IIC100/IIC200 + IAP100 ETHERNET AND SAS CABLING
This section provides information necessary for cabling a G10 probe with one of the following
supported configurations:
IIC200/SRM200 RTM + IAP100/PRM100 RTM
IIC200/TRM100 RTM + IAP100/PRM100 RTM
IIC100/SRM100 RTM + IAP100/PRM100 RTM
IIC100/TRM100 RTM + IAP100/PRM100 RTM
Connect IIC/IAP100 Ethernet Cabling
Tektronix provides shielded Ethernet cables; any customer-provided Ethernet cables must
also be shielded. Connect Ethernet cables from the G10 to your LAN for a non-redundant
primary interface configuration as shown in Figure 3.10.

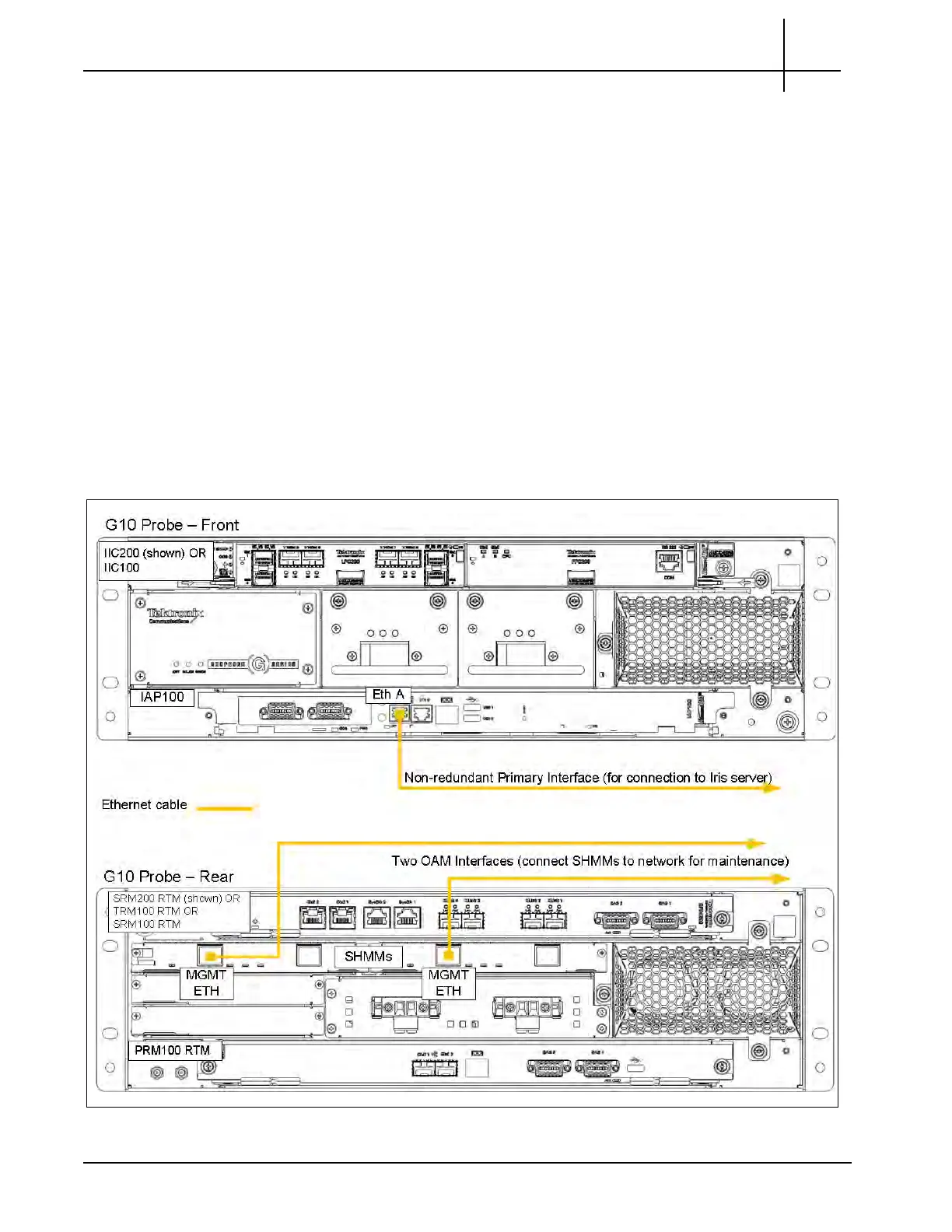

Figure 3.10 - Ethernet Connections from G10 to LAN - Non-Redundant Primary Interface
