Connect Ethernet and SAS Cabling
Rev. 005-140228
Use Figure 3.11 to connect Ethernet cables from the G10 to the controller storage
enclosure(s).

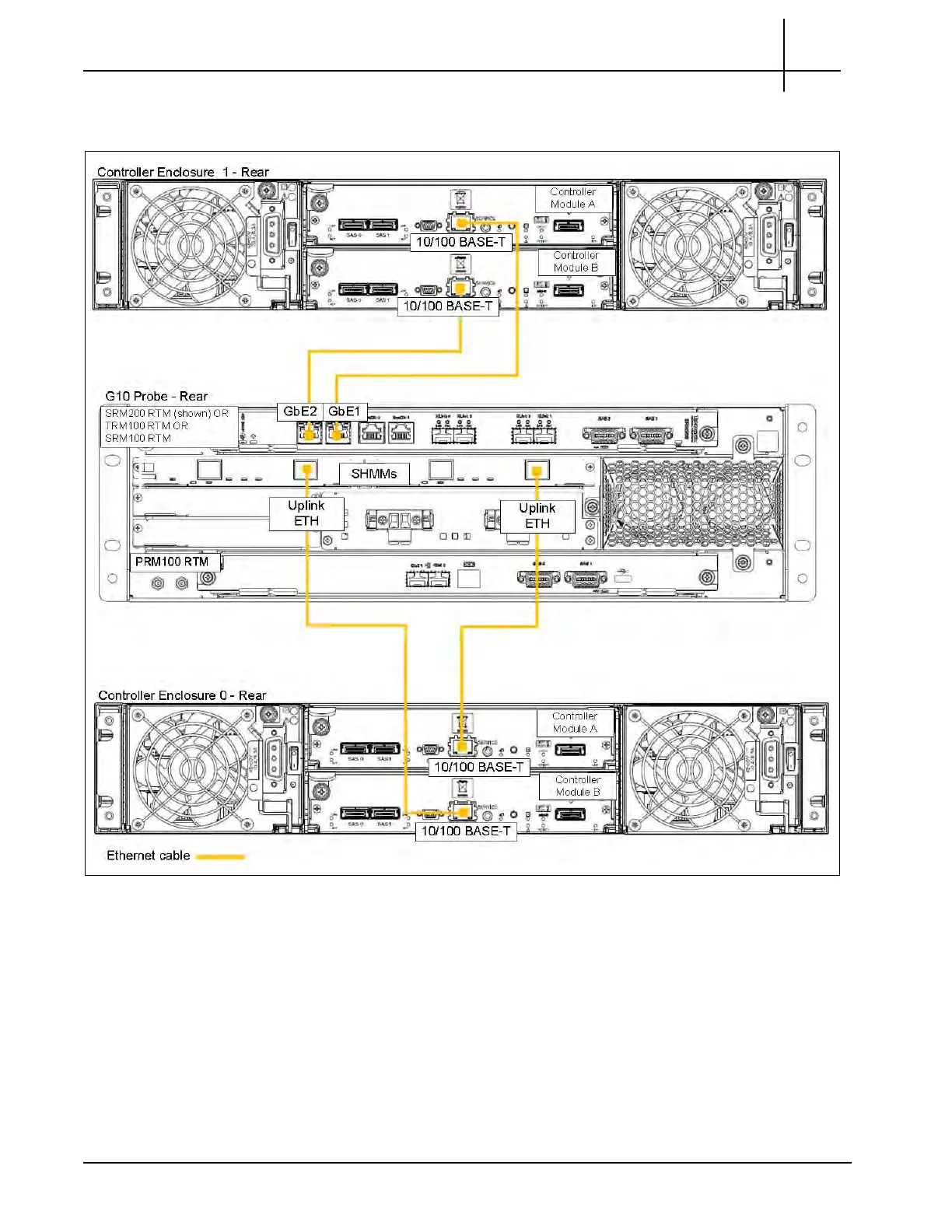

Figure 3.11 - Ethernet Connections - G10 to One or Two Controller Enclosures
