G10 Installation Guide 7.13.2 51 
3
Connect Ethernet and SAS Cabling
Rev. 005-140228

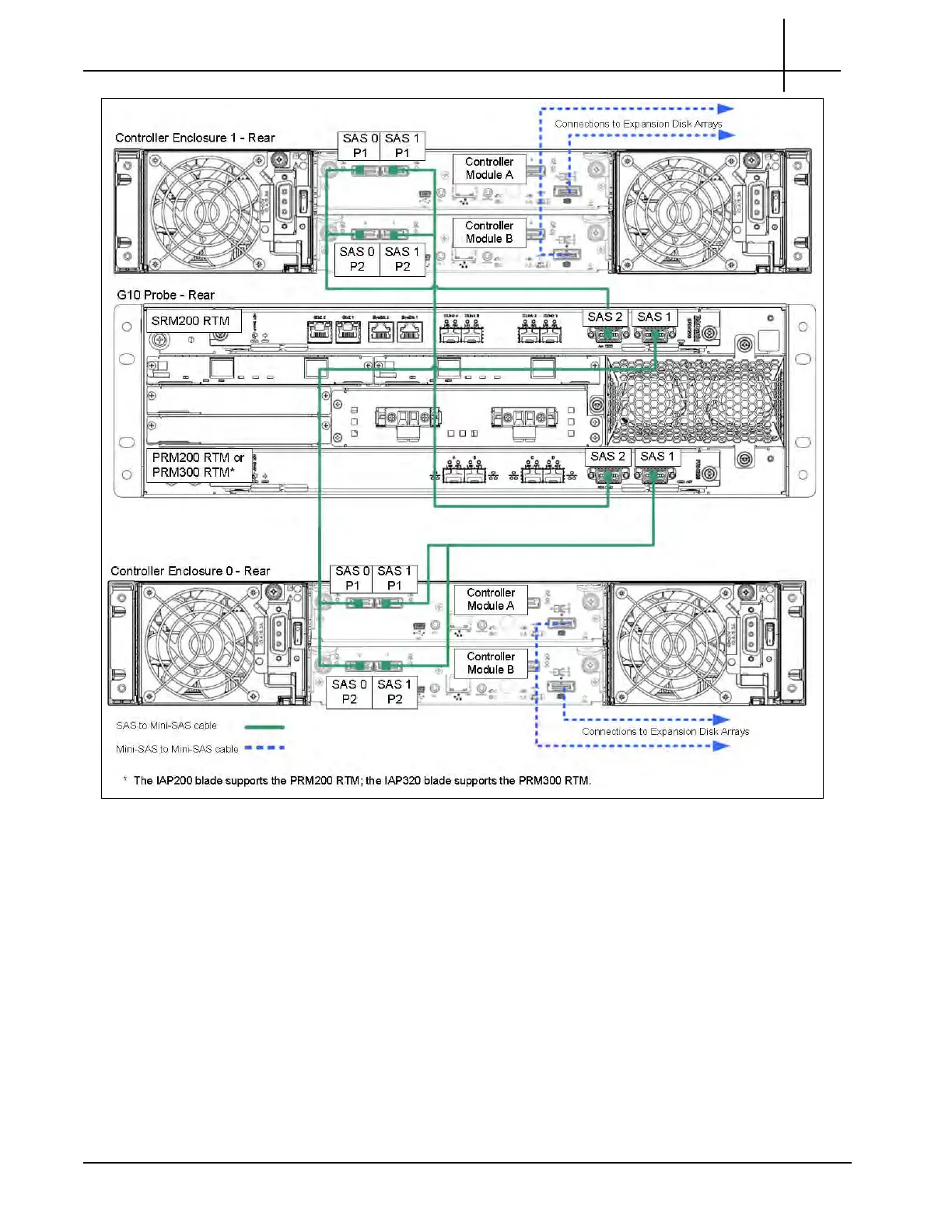

Figure 3.3 - G10 SRM200 RTM SAS Connections - One or Two Controller Enclosures
