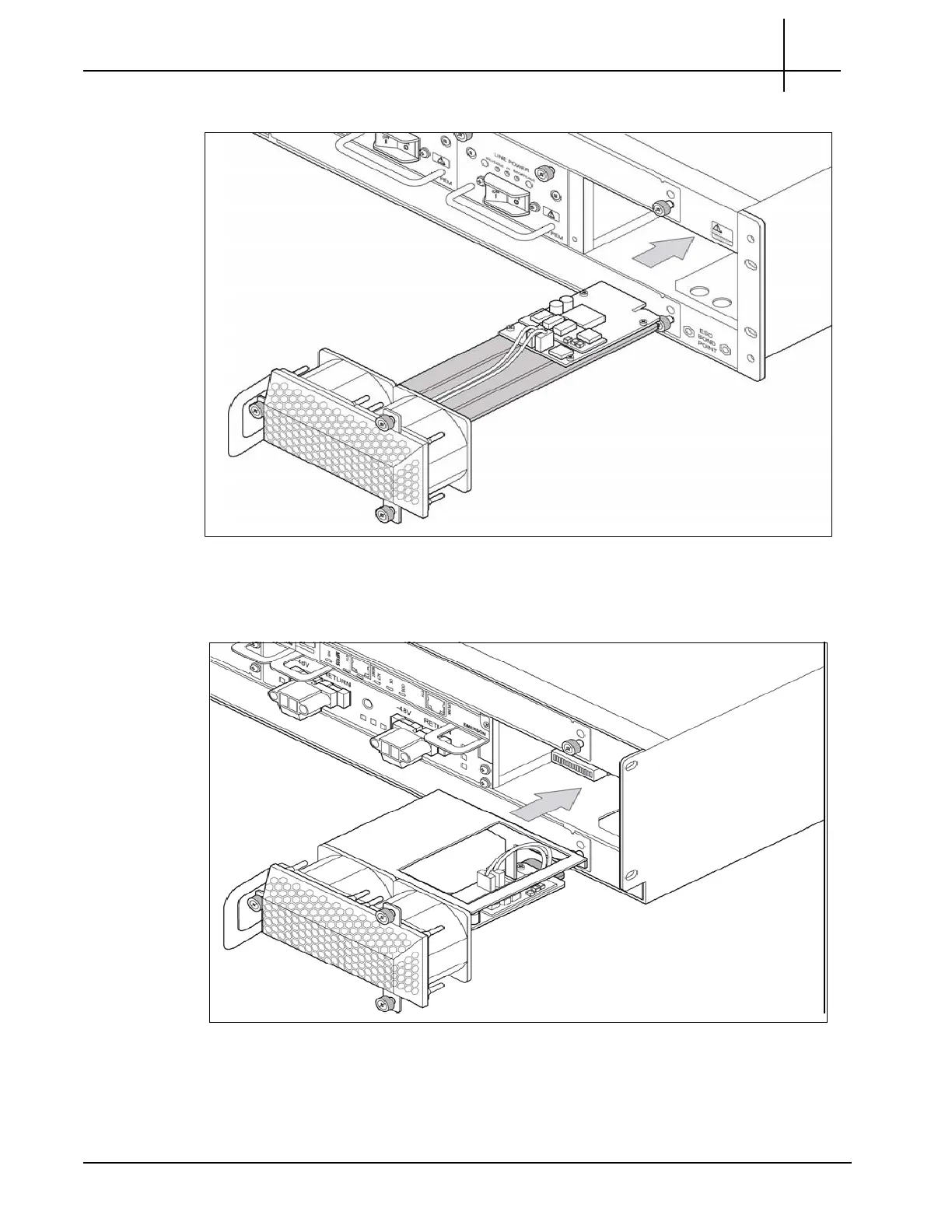

5. Take the replacement fan tray and insert it into the shelf (see Figure C.7).
Figure C.7 - Front Fan Tray (Front)
6. Slide the tray into the slot until you feel resistance (see Figure C.8). The fans
start rotating during this step.
Figure C.8 - Rear Fan Tray
7. Fasten the three mounting scr
e
ws of the tray.
