2. The blue Hot Swap LED starts to blink, indicating that the blade is shutting down
the OS.

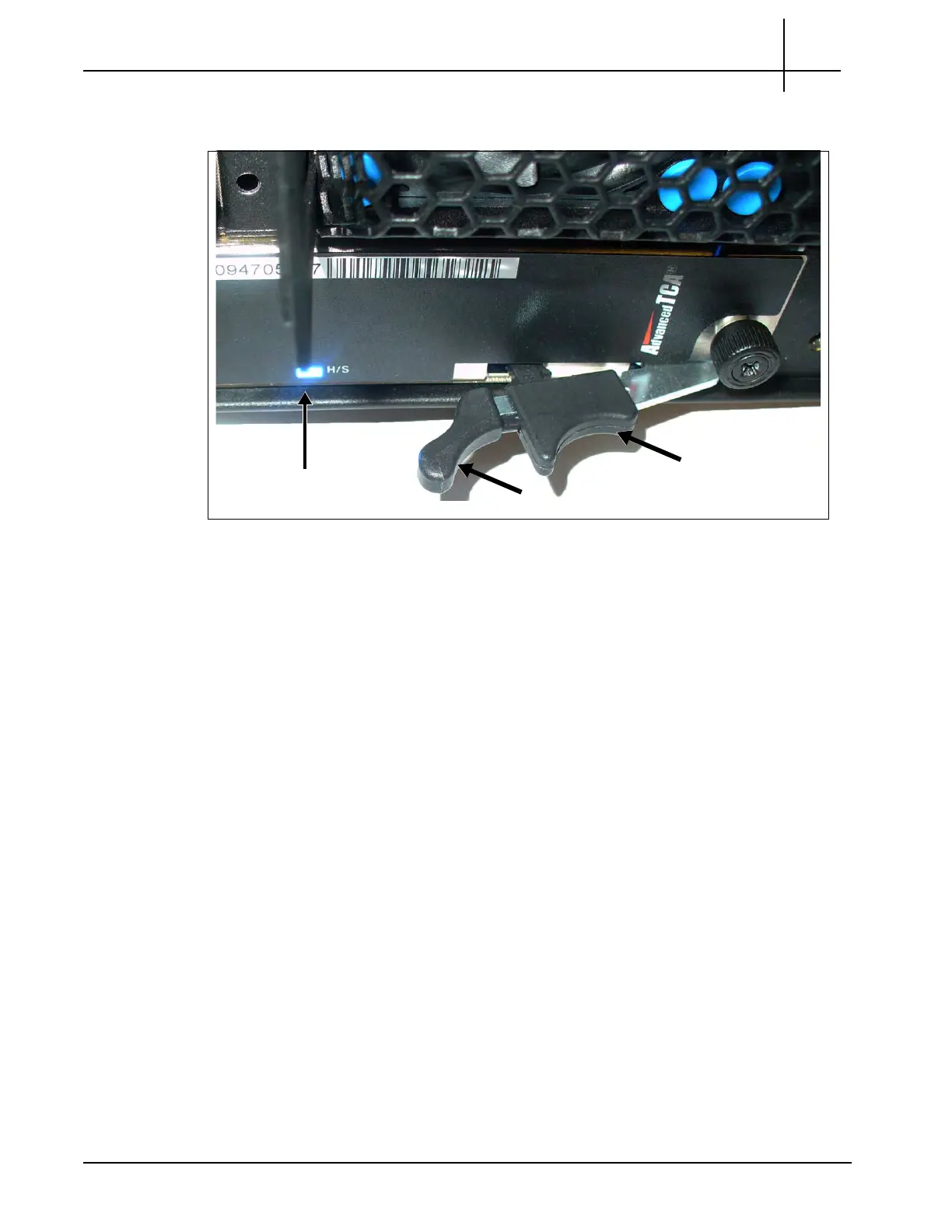

Figure C.15 - IAP100 Right Ejector Handle - Hot Swap Position
3. Wait until the Hot Swap LED is solid blue. Th
is indicates that the blade’s OS has
powered down completely.
4. If you are resetting the board, pinch the
latch and lever together and push the
ejector handle back in toward the chassis until the Hot Swap LED turns off. The
PWR LED turns GREEN. Wait about 10 minutes for the IAP100 to boot up.
5. If you are removing the blade, perform the following:
Loosen the thumbscrews on each side of the blade.
Pinch the latch and lever on each ejector handle and rotate the ejector
handles outward.
Gently remove the blade from the chassis.
6. To reinstall the blade or install a new blade, refer to Installing the IAP100.
