Tektronix GeoProbe G10 Installation Guide

G10 Installation Guide 7.13.2 156 
C
Rev. 005-140228

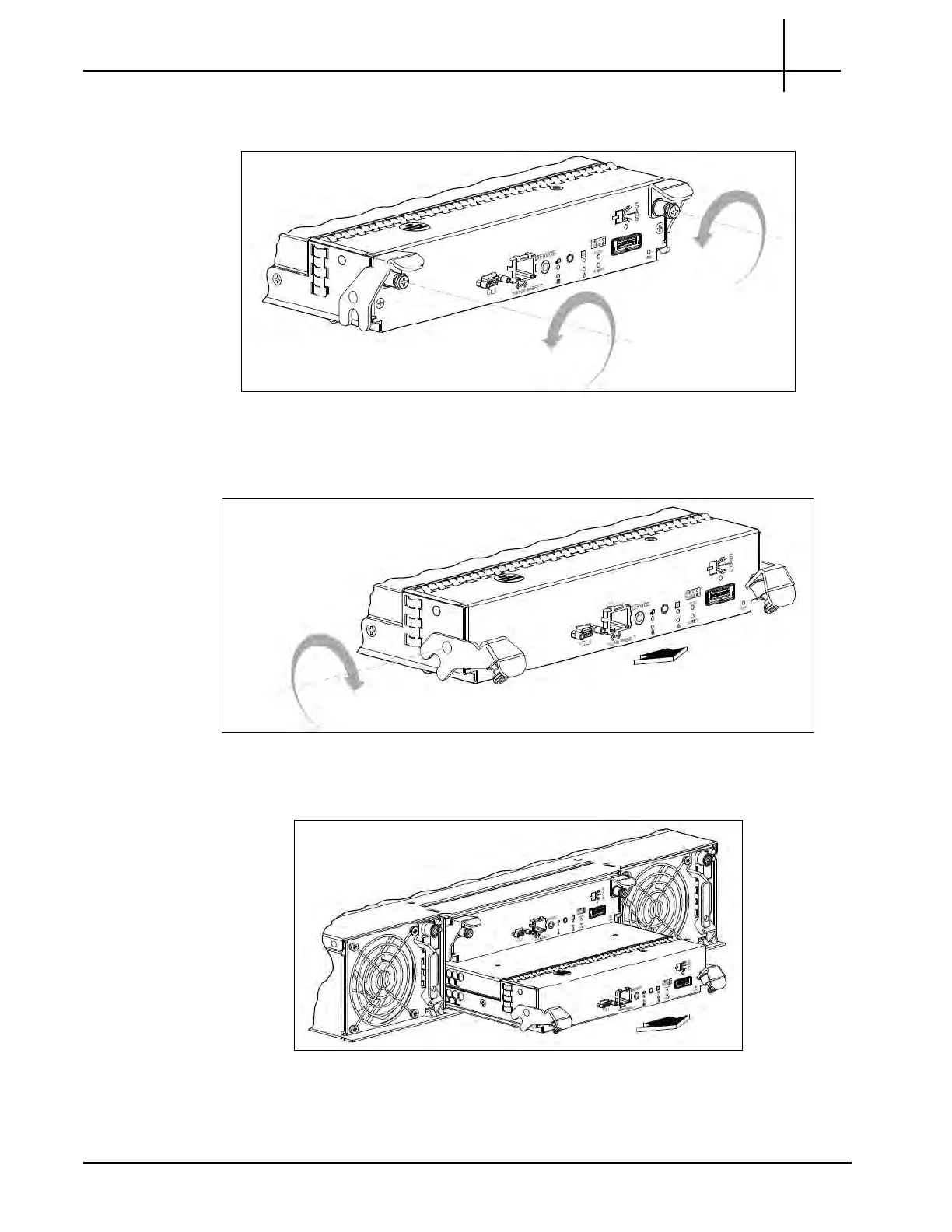

3. Turn the thumbscrews counterclockwise until they disengage from the module
(Figure C.46).
Figure C.46 - Disengaging a Controller Module
4. Press both latches downward to disconnect the module from the midplane
(Figure C.47).
Figure C.47 - Extracting a Controller Module
5. Pull the module straight out of the enclosure (Figure C.48).
Figure C.48 - Removing a Controller Module
