G10 Installation Guide 7.13.2 37
2
Install Hardware and Power Cabling
Rev. 005-140228
Step Action
1. Determine the location in the rack in which you will install the fuse panel (see
Example Rack Installations). If you prefer the alternate mid-mount option,
reposition the brackets on each side of the fuse panel.
2. Attach the fuse panel to the front of the rack with two rackmount screws on each
side.

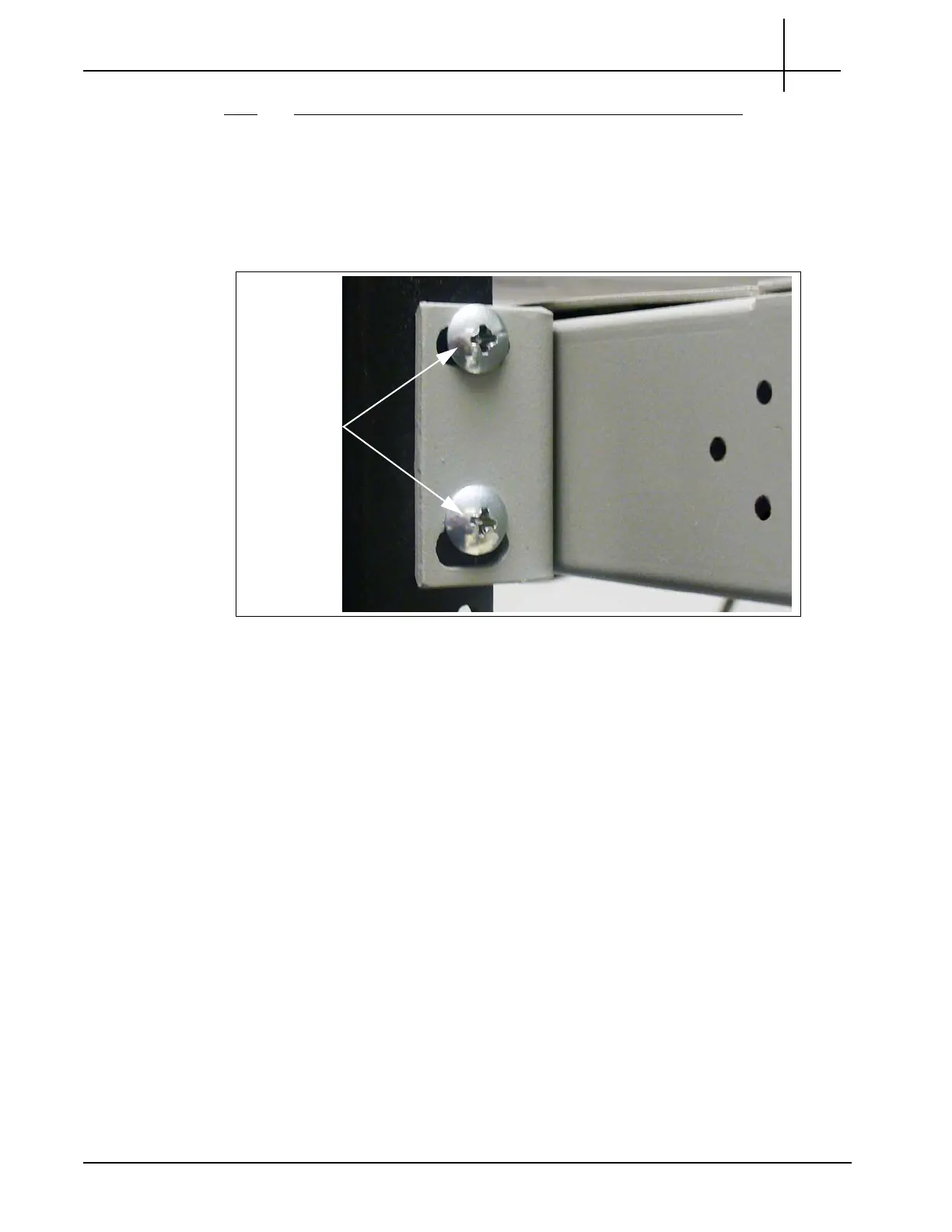

Figure 2.22 - Attaching Fuse Panel to Rack Post
3. Continue with Connect Power Cabling.
