Attaching the Boat Mounting Plate
The mounting plate is located in the boat assembly box. Once installed, it can remain installed
on the ADCP even while it is in the shipping case.
To attach the mounting plate:
1. Place the RiverPro/RioPro ADCP on a soft pad to protect the transducer face.
2. Install the mounting plate to the transducer end-cap using the six M6 bolts and flat washers.

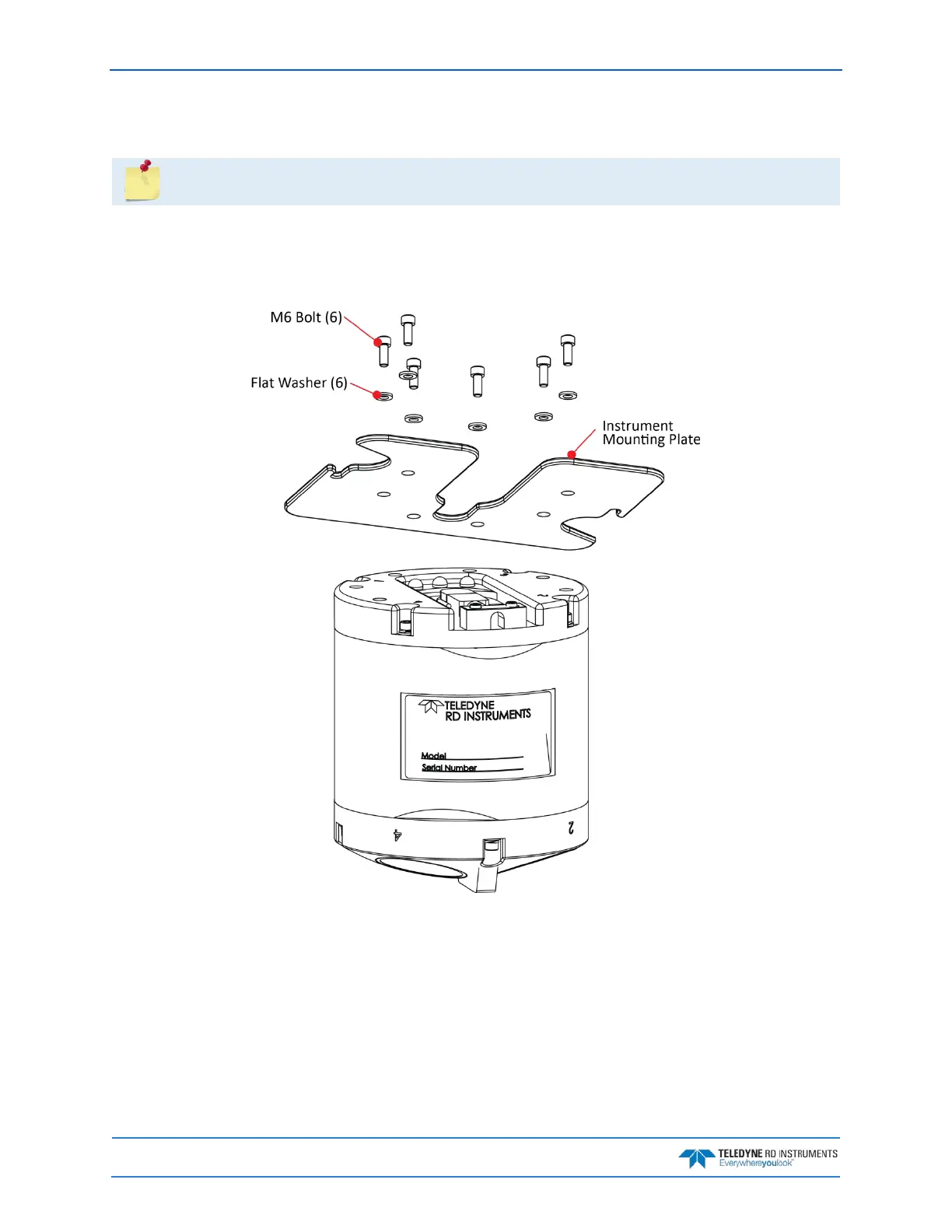

Figure 6. Mounting Plate Installation
