October 2017 RiverPro and RioPro ADCP Guide
Page 26
EAR-Controlled Technology Subject to Restrictions Contained on the Cover Page.

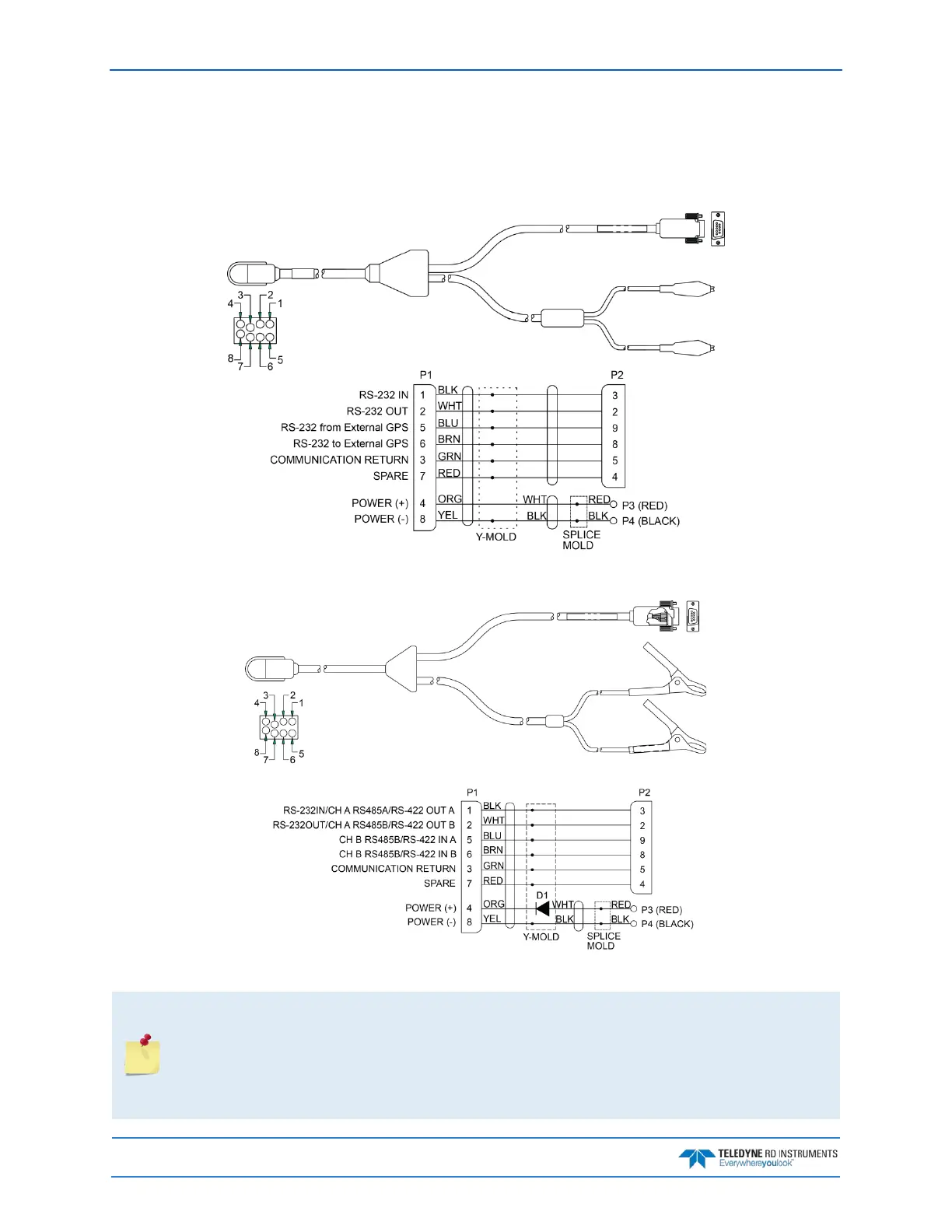

Cable Wiring Diagram
This section has information on RiverPro/RioPro cabling. Special user-requests may cause changes to the
basic wiring system and may not be shown here.
Figure 9. RiverRay/RiverPro/RioPro I/O Cable Wiring
Figure 10. Rio Grande I/O Cable Wiring
Where shown, IN refers to signals going into the RiverPro/RioPro and OUT refers to signals
coming out of the RiverPro/RioPro.
If the RiverRay/RiverPro/RioPro cable is not available, a WorkHorse Rio Grande I/O cable can
be used. Please note that a 0.7 volt drop in voltage will occur due to the diode installed inside
the Rio Grande cable. This protective diode has been added to the RiverPro/RioPro
electronics.
