Boat Wiring Diagram

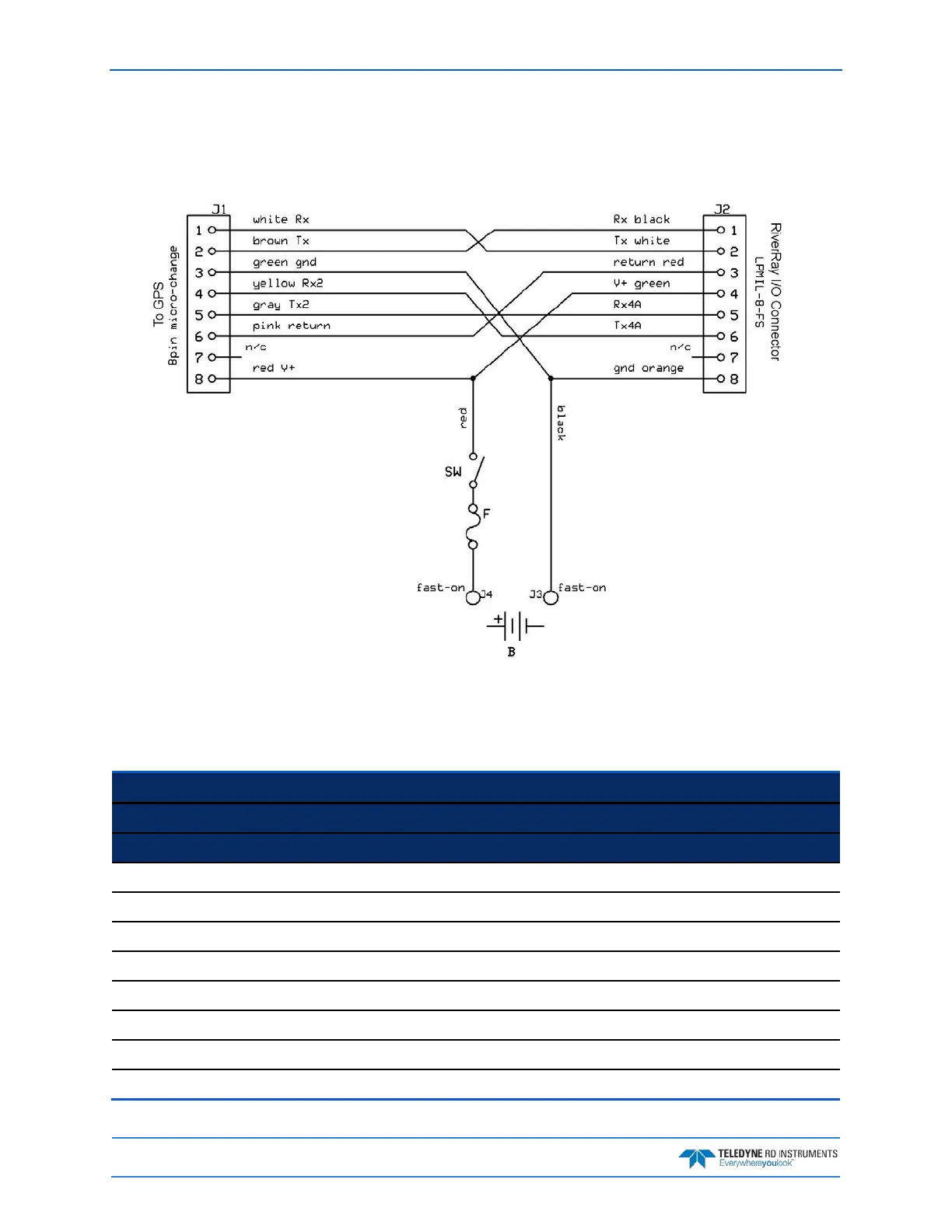

Figure 21. RiverRay/RiverPro/RioPro Boat Wiring Diagram
Table 7: RiverRay/RiverPro/RioPro Boat Wiring
To GPS (J1) RiverRay I/O Connector (J2)
8pin micro/change LPMIL-8-FS Connector
Pin Number Function Function Pin Number
1 Rx
←
Tx 2
2 Tx
→
Rx 1
3 Gnd
↔
Gnd 8
4 Rx2
←
Tx4A 6
5 Tx2
→
Rx4A 5
6 Coms Return
↔
Coms Return 3
7 n/c n/c 7
8 V+
↔
V+ 4
