4. System Components System Manual
Page 2-34 8/09 76.7300FP11/2, Rev A
Front Panel LEDs
4.26 For Fan Tray LED placement, refer to Figure 4.7, page 2-34. For LED
descriptions and states, refer to Table 4.5, page 2-34.

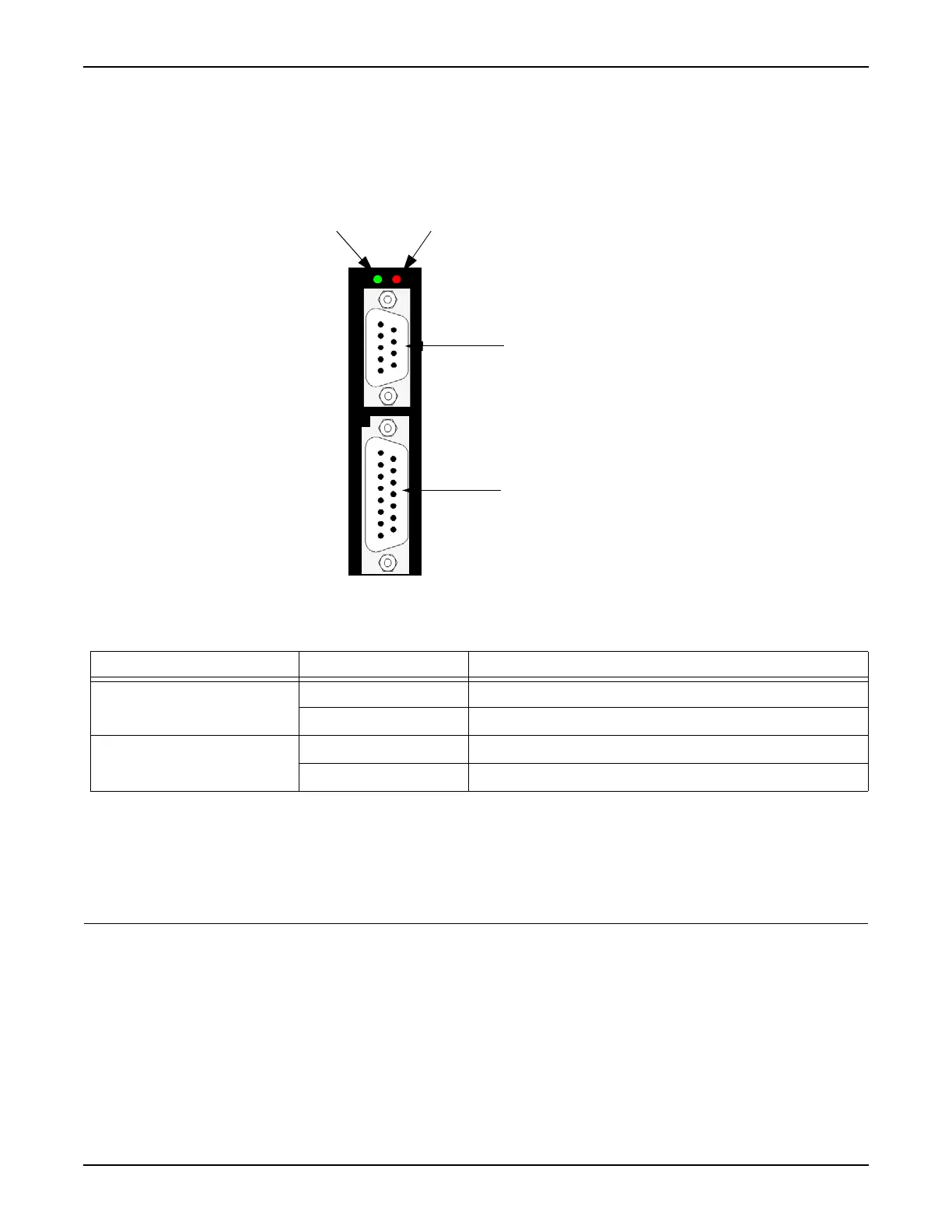

Figure 4.7 Fan Tray LED Placement
Fan Tray Physical Specifications
Weight 1.44 pounds (0.65 kg)
Dimensions Height: 3.27 inches (83 mm)
Depth: 8.86 inches (225 mm)
Width: 2.05 inches (52 mm)
SYNC
ALARM
POWER
FAULT
Power
Fault
Alarm interface
Sync interface (reserved for future use)
Table 4.5 Fan Tray LED Descriptions
LED Status Description
Power green Power is present.
off The module has no power or the LED is not functional.
Fault red One or more fans has failed.
off No fault exists.
