Tellabs 7300 Series User Manual

System Manual 5. Installation
76.7300FP11/2, Rev A 8/09 Page 2-69
RJ-45 Electrical SFP Pinouts
5.62 Refer to Figure 5.25, page 2-69 and Table 5.2, page 2-69 for pinout
information if you need to make a CAT5e cable. The Tellabs 7300 NE’s electrical
SFPs are auto sensing for DCE/DTE. Therefore, a straight-through cable can be
used for all applications.

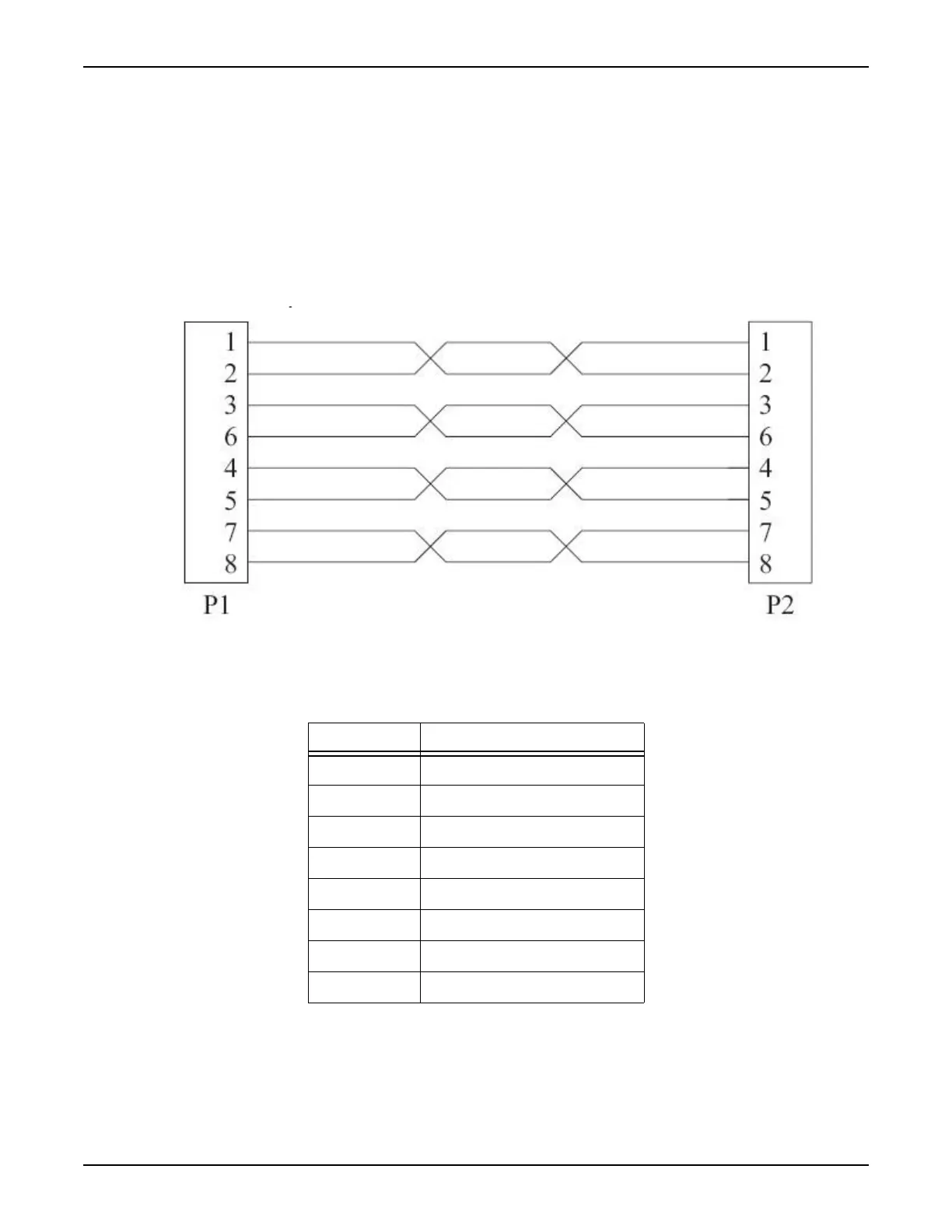

Figure 5.25 Pinout for 10/100/1000 Base-T RJ-45 SFPs
Table 5.2 Wiring Table Color Code (EIA/TIA 568B)
Pin Number Base/Stripe Color
01 White/Orange
02 Orange/White
03 White/Green
04 Blue/White
05 White/Blue
06 Green/White
07 White/Brown
08 Brown/White
RJ-45
RJ-45
CAT5e
straight-through cable
