Tellabs 7300 Series User Manual

System Manual 5. Installation
76.7300FP11/2, Rev A 8/09 Page 2-55
Grounding the Tellabs 7300 Shelf
5.35 A separate earth-ground strategy is recommended as it connects the shelf
to a ground connection at the building ground and otherwise keeps the ground
wiring separate from the power-feed return lines. A universal ground kit is included
with the Tellabs 7300 NE. Refer to Figure 5.9, page 2-55 or Figure 5.10, page 2-55.

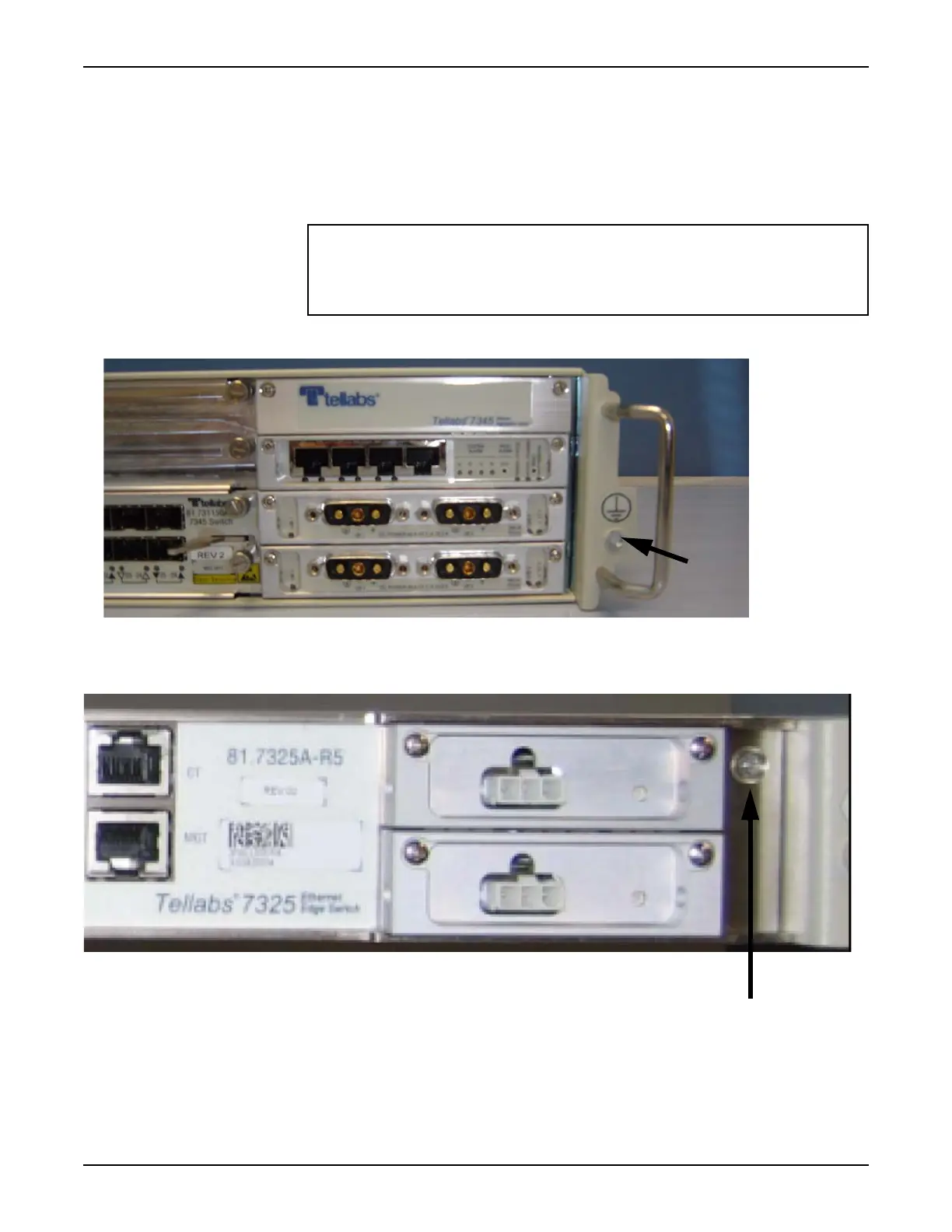

Figure 5.9 Connecting Tellabs 7345 Shelf Ground
Figure 5.10 Connecting Tellabs 7325 NE Ground
Warning:
Carefully read all procedure safety precautions and instructions before attaching
the frame ground connections to the shelf.
shelf ground connection
shelf ground connection
