System Manual 4. System Components
76.7300FP11/2, Rev A 8/09 Page 2-25

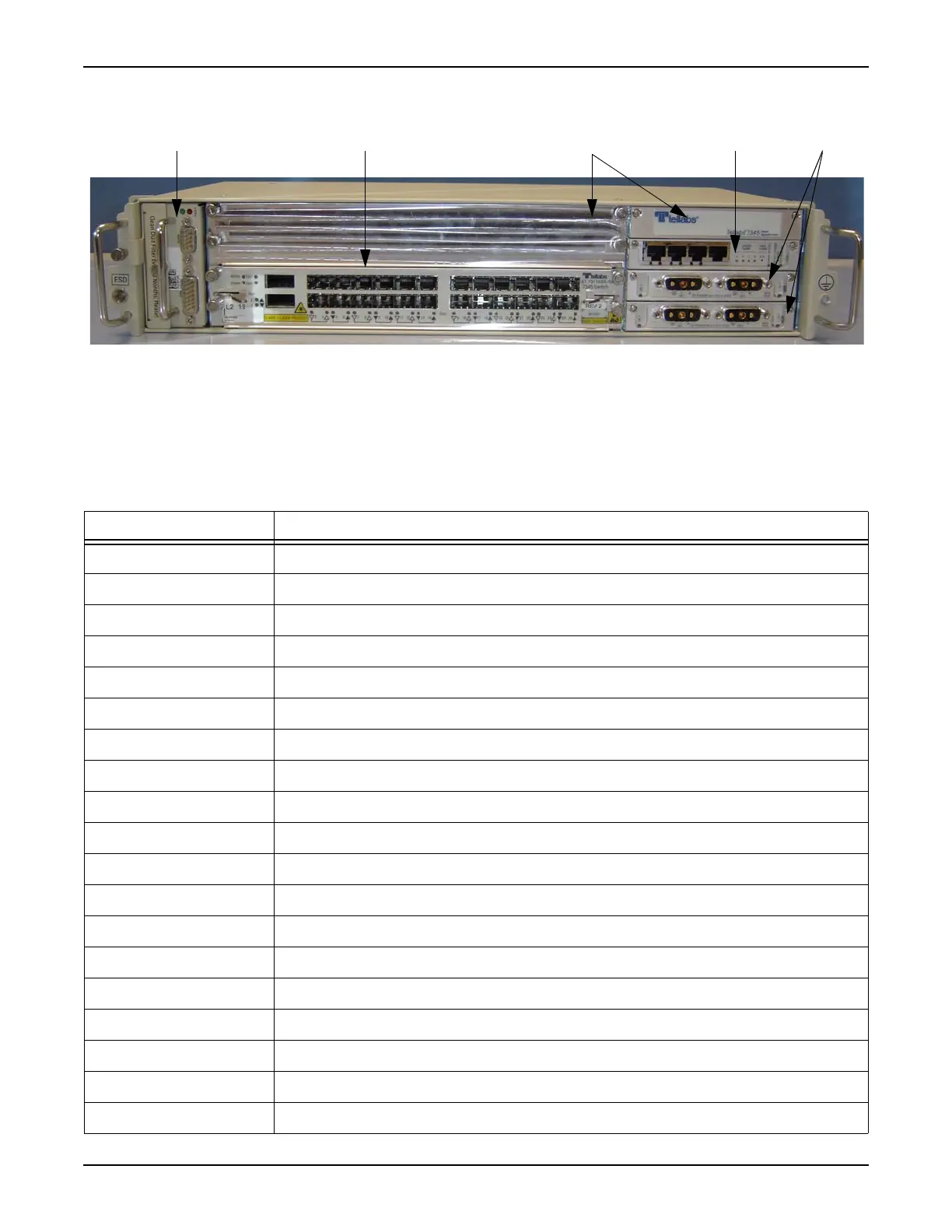

Figure 4.1 Tellabs 7345 Switch Basic Components
Hardware Components
4.04 Tellabs 7345 Switch components and part numbers are listed in Table 4.1,
page 2-25.
PSUsFan Tray
CMCC
10G Switch module (731150A shown) blank plates
module
Table 4.1 Available Hardware for Tellabs 7345 Switch
Tellabs Part Number Description
81.07300A-R5 Tellabs 7300 Shelf
81.73040-R5 Tellabs 7300 Fan Tray w/Filter (Fan Tray)
81.CM3501-R5 Tellabs 7300 Power Supply (PSU)
81.CM3502-R5 Tellabs 7300 Central Management Controller Card (CMCC)
82.731150A-R5
1
Tellabs 7345 Ethernet Aggregation Switch - 10G, 2 XFP, 24 SFP (TGX2)
82.731150B-R5
1
Tellabs 7345 Ethernet Aggregation Switch - 10G, 1 XFP, 24 SFP (TGX1)
82.731150C-R5
1
Tellabs 7345 Ethernet Aggregation Switch - 10G, No XFP, 24 SFP (TGX0)
81.731150-BLK-R6 Tellabs 7345 Ethernet Aggregation Switch - Blank Plate
81.7300PCBLB-R5 Tellabs 7345 DC Power Cable (2-wire)
81.73020D-R5 7300 Extended Temp AC-DC Power Converter
81.73020-TRAY-R6 7300 Power Converter Tray
PS402838117246A AC Wall Cord: Type G (British)
PS402838117253A AC Wall Cord: Type AS3112, IRAM 2073 (Australian, Argentina, Chinese 10A/240v)
PS402839MSK310A AC Wall Cord: Type CEE 7/7 (Euro)
PS402839SVT3US AC Wall Cord: Type b Nema 5-15 (North America)
PS402838117408 AC Wall Cord: Type I (Italy)
81.73060-R6
2
Tellabs 7345 Fan Filter
81.73CM-BLK-R6
2,3
Tellabs 7345 CMCC/PSU Blank Plate
81.73EXT-TOOL
2
Tellabs Module Extraction/Reset Tool
