System Manual 6. Maintenance
76.7300FP11/2, Rev A 8/09 Page 2-95

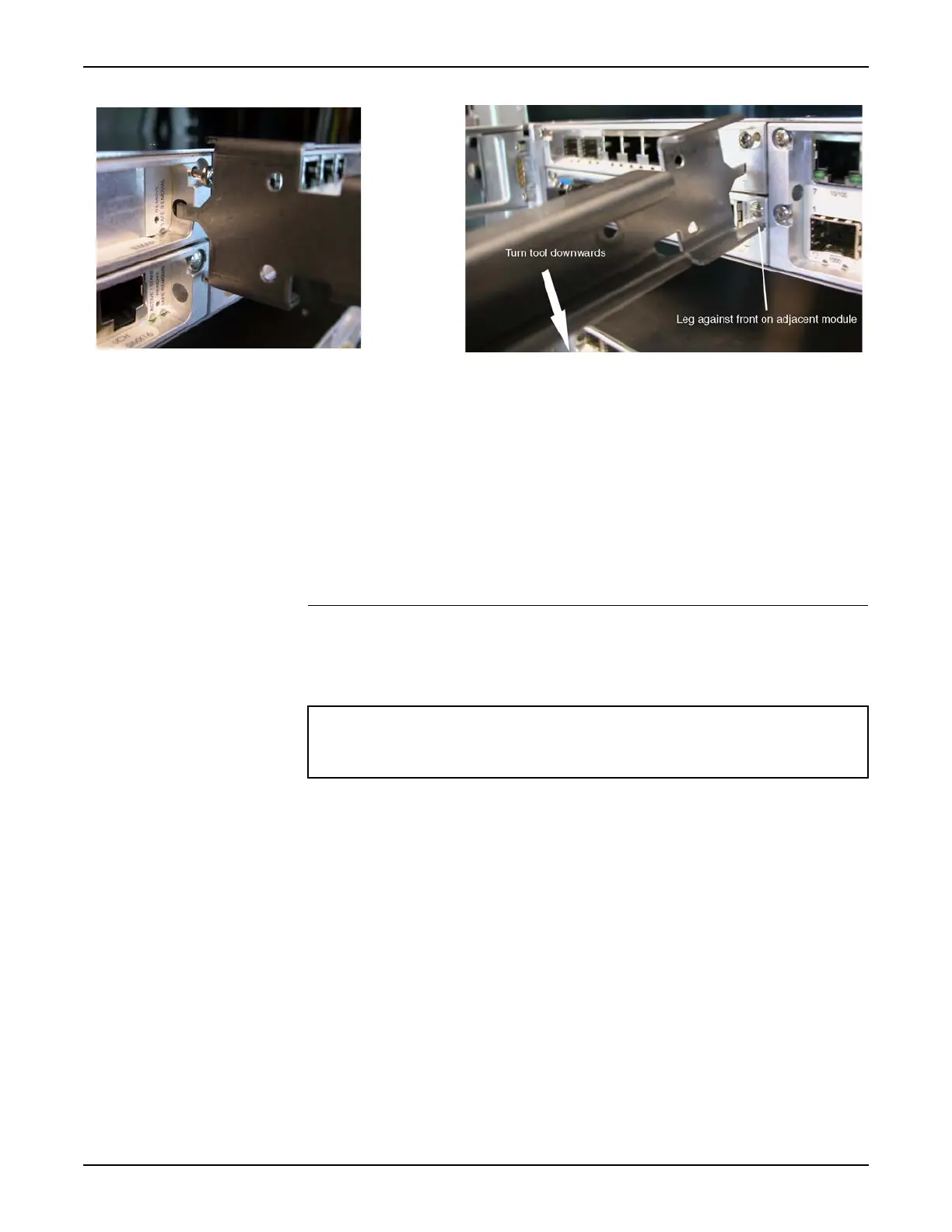

Figure 6.3 Using the Module Extraction/Reset Tool
__ 7. Pull out the module and store it in its antistatic packaging.
__ 8. Remove the replacement CMCC module from its antistatic packaging.
__ 9. Install the replacement CMCC module in slot 8 of the shelf.
__ 10. Securely fasten the replacement CMCC module to the shelf with the
included screws.
__ 11. Reconnect all cables to the replacement CMCC module.
__ 12. Verify that the Power/Status and Active/Standby LEDs are lit green
and steady (not flashing).
Replacing a PSU Module
6.15 Replace a PSU module by performing the following steps. Note that two
PSUs are required in the Tellabs 7325 Switch.
__ 1. Perform the steps in the Module Replacement Pre-Checklist,
page 2-92.
__ 2. Use an antistatic wriststrap connected to the shelf to ensure you are
adequately grounded while installing or servicing the system. Do this
to avoid damaging components sensitive to static electricity. Connect
the antistatic wriststrap to the shelf as shown in Figure 6.4, page 2-96.
Warning:
The Tellabs 7300 NE resets if this procedure is not followed.
