6. Maintenance System Manual
Page 2-94 8/09 76.7300FP11/2, Rev A

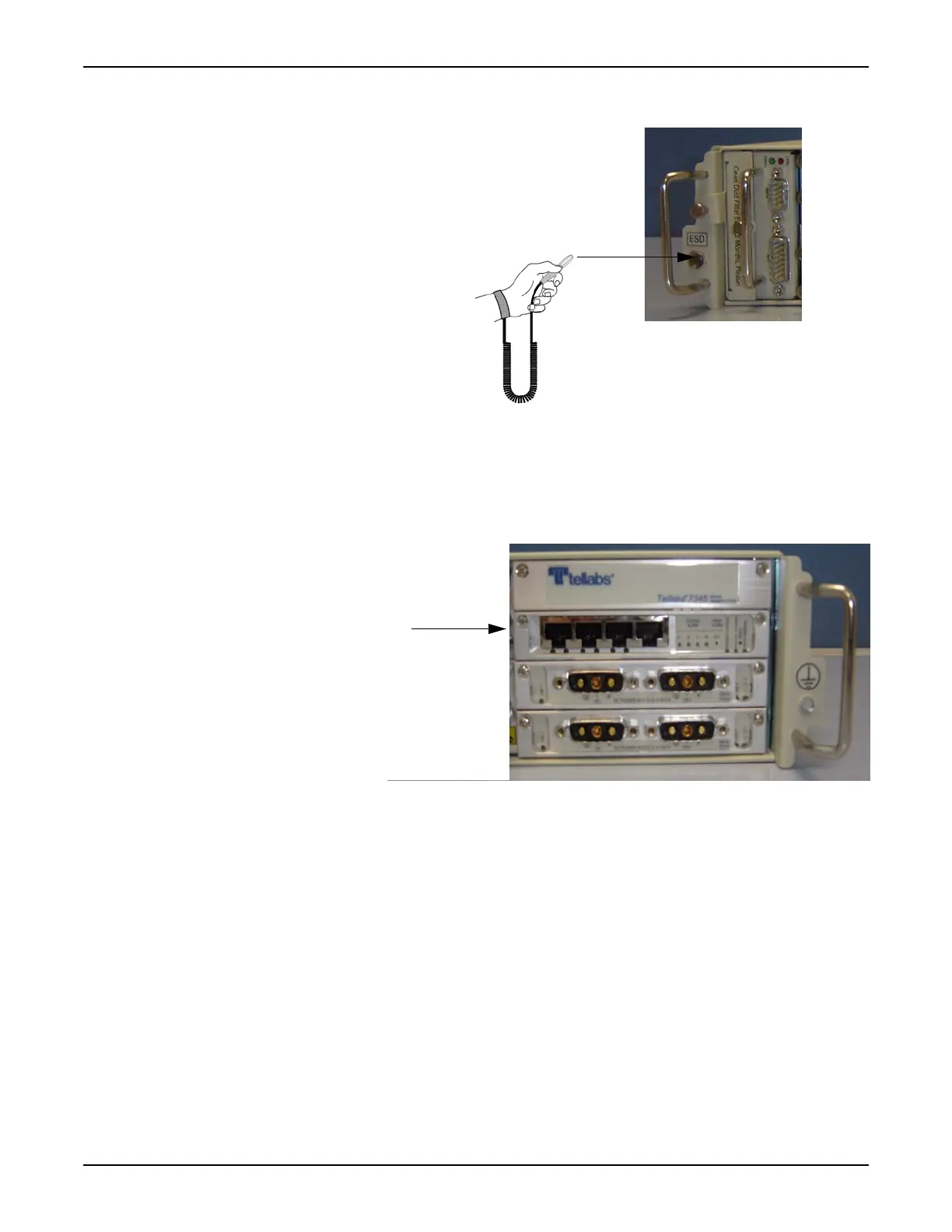

Figure 6.1 Connect Antistatic Wriststrap to Shelf
__ 4. Disconnect all cables connected to the module.
__ 5. Remove the screws that fasten the module to the shelf. Refer to Figure
6.2, page 2-94.
Figure 6.2 Placement of CMCC Module on Shelf
__ 6. Place the pin of the ejector tool (Tellabs part number
81.73EXT-TOOL) in the hole on the module and turn the ejector tool
down or up (depending whether the module to be extracted is placed
in an upper or lower slot of the shelf) pressing one of the legs of the
tool against the front of an adjacent module in the shelf. Push the
ejector tool downward to eject the module. Refer to Figure 6.3,
page 2-95.
CMCC Module
