System Manual 5. Installation
76.7300FP11/2, Rev A 8/09 Page 2-65
Installing the Transceivers
5.53 The Tellabs 7300 NEs allow you to insert and remove SFPs and XFPs
into/from modules without powering down. These easily replaceable high-speed
transceivers plug into the 10G Switch module on the Tellabs 7345 Switch and into
the Tellabs 7325 enclosure. Refer to the Tellabs 7300 Software Release
Document for SFP/XFP options.
Transceiver Installation
(Tellabs 7345 Switch)
5.54 The 10G Switch module comes without SFP or XFP transceivers
pre-installed. Up to 24 1G SFPs and zero, one, or two 10G XFPs (depending on
the switch module installed in the shelf) may be installed in the 10G Switch module.
5.55 Figure 5.20, page 2-65 shows the correct orientation for inserting an
SFP/XFP. Figure 5.21, page 2-66 shows the SFP/XFP 10G Switch module
numbering scheme.

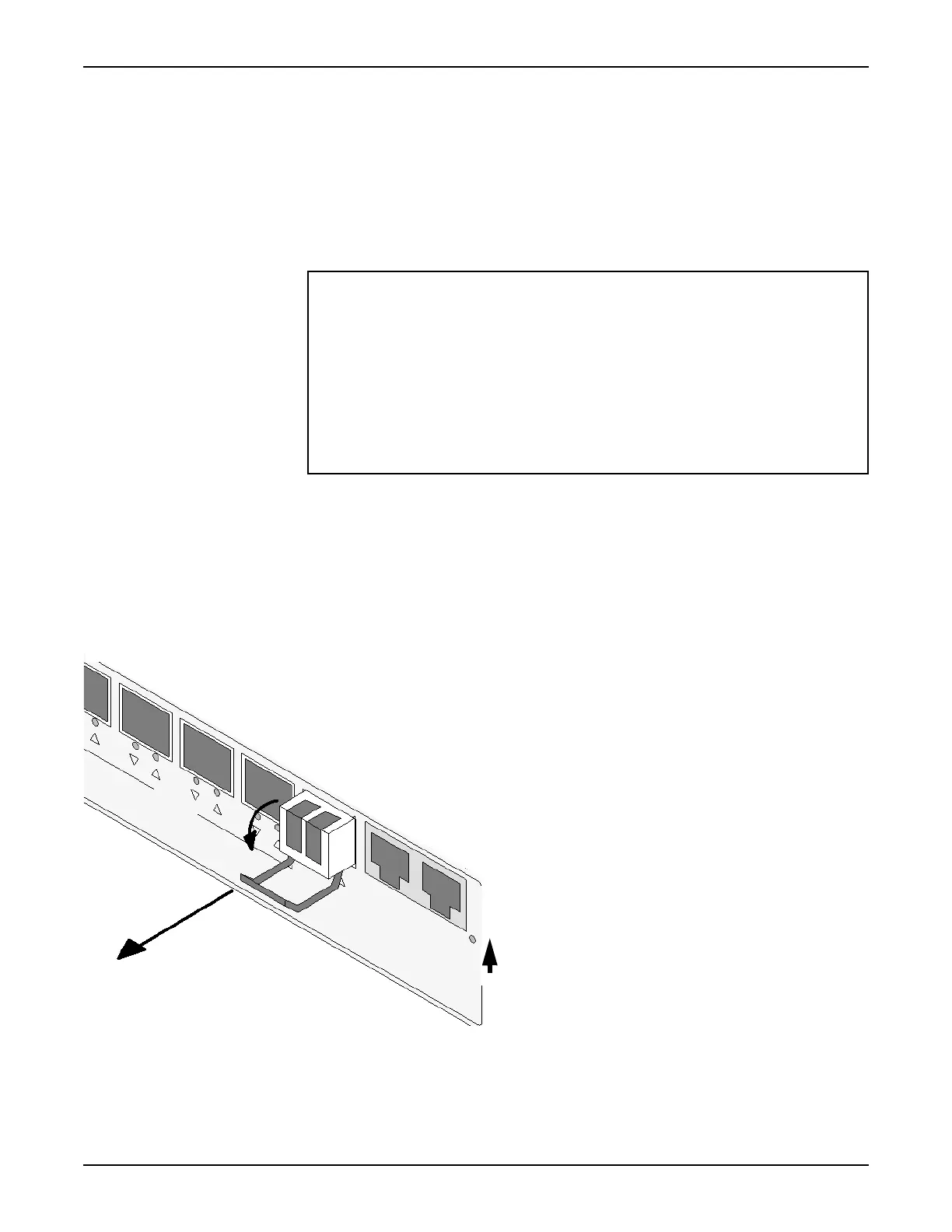

Figure 5.20 Insertion of Transceiver
Warning:
Electrostatic discharge (ESD) may damage sensitive electronic components
resulting in a traffic-affecting condition. Ensure that plug-in modules are stored
in static preventive material. Do not touch any components on the modules.
Handle modules by the edges or front panel. Always wear a properly grounded
wrist strap when handling, removing, or inserting a module and when touching
the equipment shelf or cables. ESD protective flooring, used with proper ESD
footwear, may be used as an alternative to a wrist strap. Check ESD wrist straps
and footwear daily to verify performance.
Upper-row transceivers are installed
bale up
