5. Installation System Manual
Page 2-68 8/09 76.7300FP11/2, Rev A
__ 6. Reinsert dust covers into the SFPs.
__ 7. Repeat steps 1, page 2-67 through 6, page 2-68 for each SFP/XFP
being installed.
Connecting the Cables to the 10G Switch Module in the Tellabs 7345 Switch
5.60 Connect the cables to the 10G Switch module by performing the following
steps:
Note: For a listing of facility cables, refer to Table 5.1, page 2-46.
__ 1. Connect the fiber cables to the XFP 10G ports of the 10G Switch
module. Refer to Figure 5.24, page 2-68.
Note: The 10G Switch module supports zero, one, or two 10G XFPs, depending
on the switch module installed in the shelf.
__ 2. Connect the cables, either optical or electrical, to the SFP 1G ports of
the 10G Switch module. Refer to Figure 5.24, page 2-68.
Note: If optical cables are used, verify that the mode of the fiber cable that is
used (single-mode or multi-mode) matches the SFP that is installed.
Note: If 10/100/1000 electrical SFPs are used, use CAT5e cable. Refer to Figure
5.25, page 2-69.
5.61 For fiber optic cleaning procedures, refer to Fiber Optic Cleaning
Procedures, page 2-109.

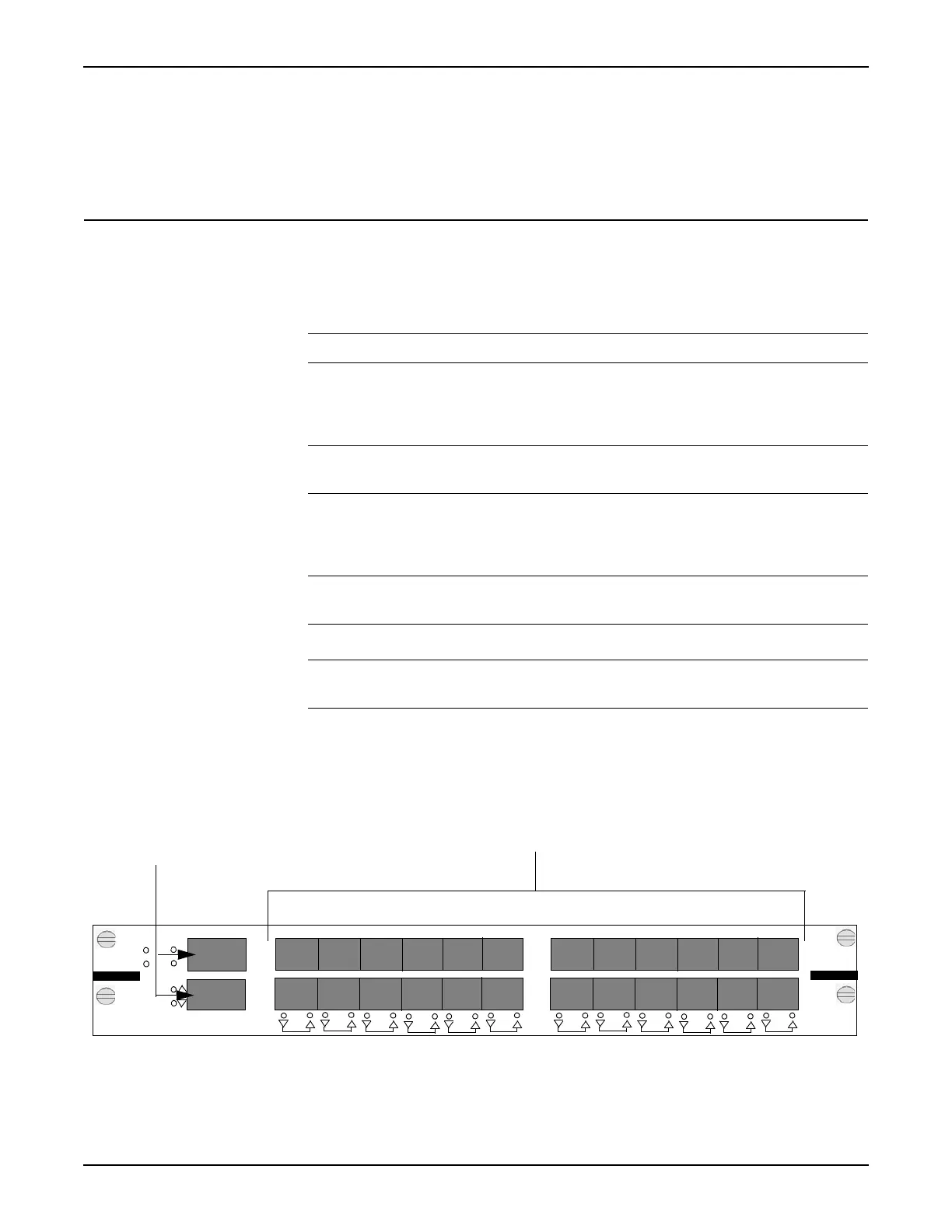

Figure 5.24 10G Switch Module (731150A-R5 shown)
Active
Fault
SyncPower
Port
2
1
Port
3
45
6
78
9
10
11 12
13 14
15 16
17
18
19
20
21 22
23
24
25
26
SFP ports (10/100/1000 Base-T or 1G x 24)
XFP ports (10G x 0, 1, or 2, depending
on switch module option)
