System Manual 5. Installation
76.7300FP11/2, Rev A 8/09 Page 2-67

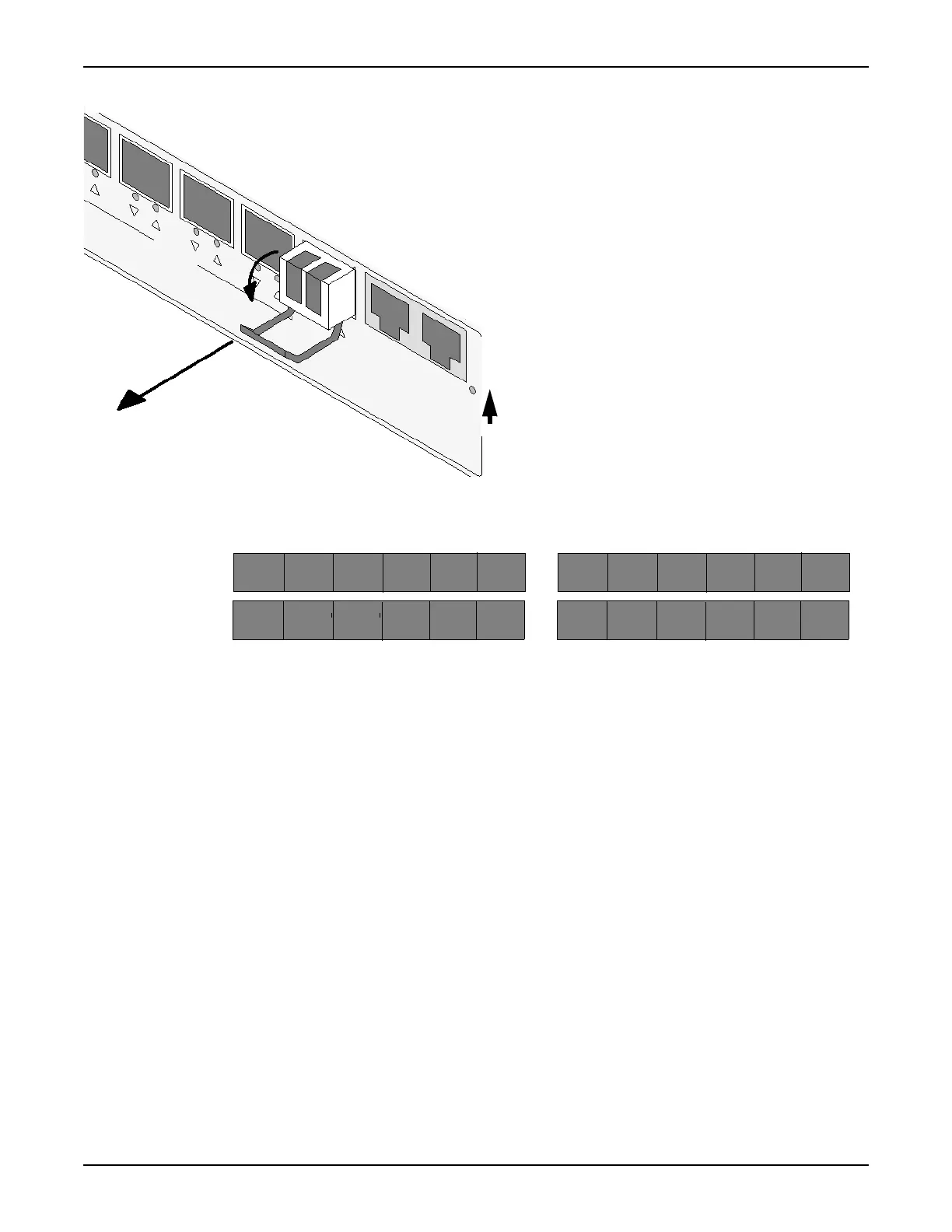

Figure 5.22 Insertion of Transceiver
Figure 5.23 Transceiver Numbering
5.59 Install transceivers by performing the following steps:
__ 1. Follow ESD precautions and make sure you are adequately grounded
before handling the SFPs.
__ 2. Remove the SFPs from their antistatic packaging.
__ 3. Remove dust covers from the SFPs.
__ 4. Ensure the SFP’s bale (the latch on the cable side of the transceiver)
is in the open position.
__ 5. Insert the SFPs into the sockets and carefully slide the SFP into the
socket until its connector is fully seated. Close the bale.
The upper-row of SFP sockets require that transceivers be
installed bale-side up. Refer to Figure 5.22, page 2-67 and Figure
5.23, page 2-67.
The lower-row SFP sockets require that transceivers be installed
bale-side down. Refer to Figure 5.22, page 2-67 and Figure 5.23,
page 2-67.
Do not force SFPs into sockets.
Upper-row transceivers are installed
bale up
2101284 5 14 22 242016 18
13 21 231915 171911735
