Front Panel LEDs
4.35 For PSU LED placement, refer to Figure 4.9, page 2-38. For PSU LED
description and states, refer to Table 4.8, page 2-38.

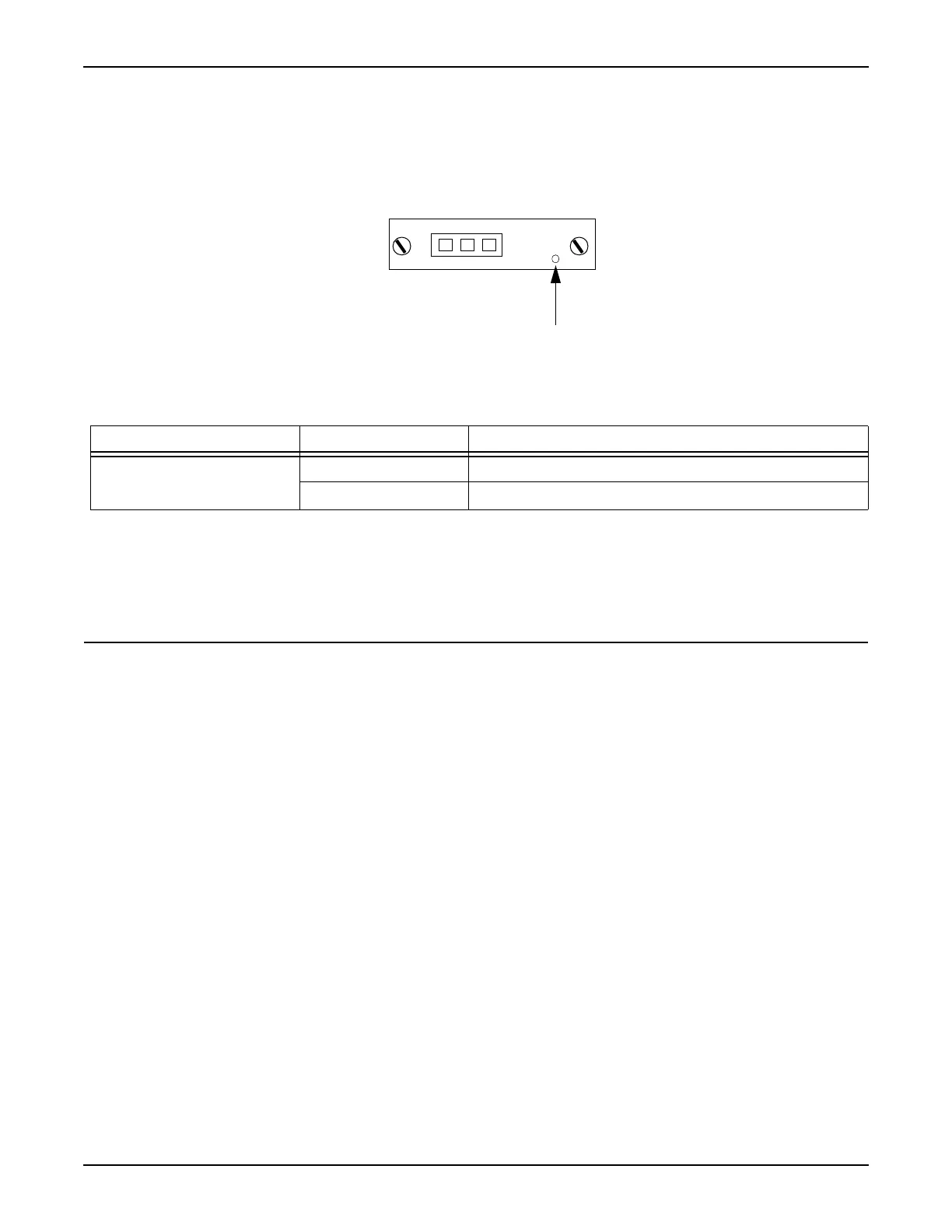

Figure 4.9 PSU LED Placement
Power Supply Unit Physical Specifications
Weight 0.80 pounds (0.36 kg)
Dimensions Height: 0.80 inches (20.25 mm)
Depth: 7.95 inches (202 mm)
Width: 4.57 inches (116 mm)
4.36 All Tellabs 7325 Switch common components are available for individual
ordering.
Table 4.8 PSU LED Description
LED Status Description
Active/Standby green Indicates that power is present.
off The PSU has no power or the PSU has failed.
