Disassembly and Assembly

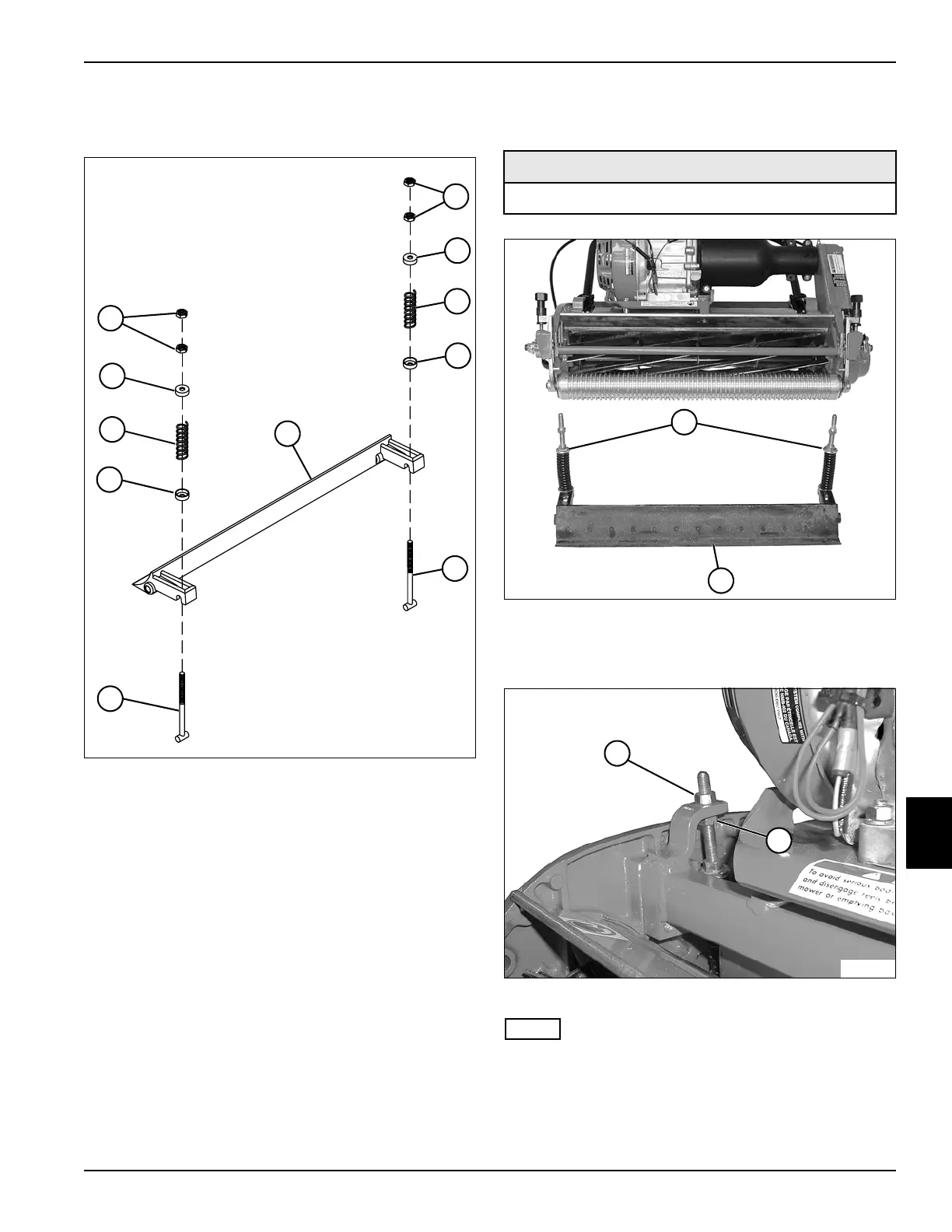

See Figure 8-16.
Figure 8-16
Installation
See Figures 8-17 through 8-19.
Figure 8-17
1. Install the bedknife shoe assembly (2) with
adjustment rod assemblies (1).
Figure 8-18
NOTE
Steps 2 through 4 apply to both sides of the mower.
2. Install nut (3).
3. Turn nut (4) clockwise until the bedknife makes light
contact with the reel.
1Nut (4)
2Cups (4)
3 Spring (2)
4 Bedknife Shoe
5 Bedknife Adjuster Bolt (2)
TN0038
1
2
3
2
5
2
3
2
5
4
1
Required Materials
Anti-Seize Compound
2
TN0156
1
3
TN0030
4
