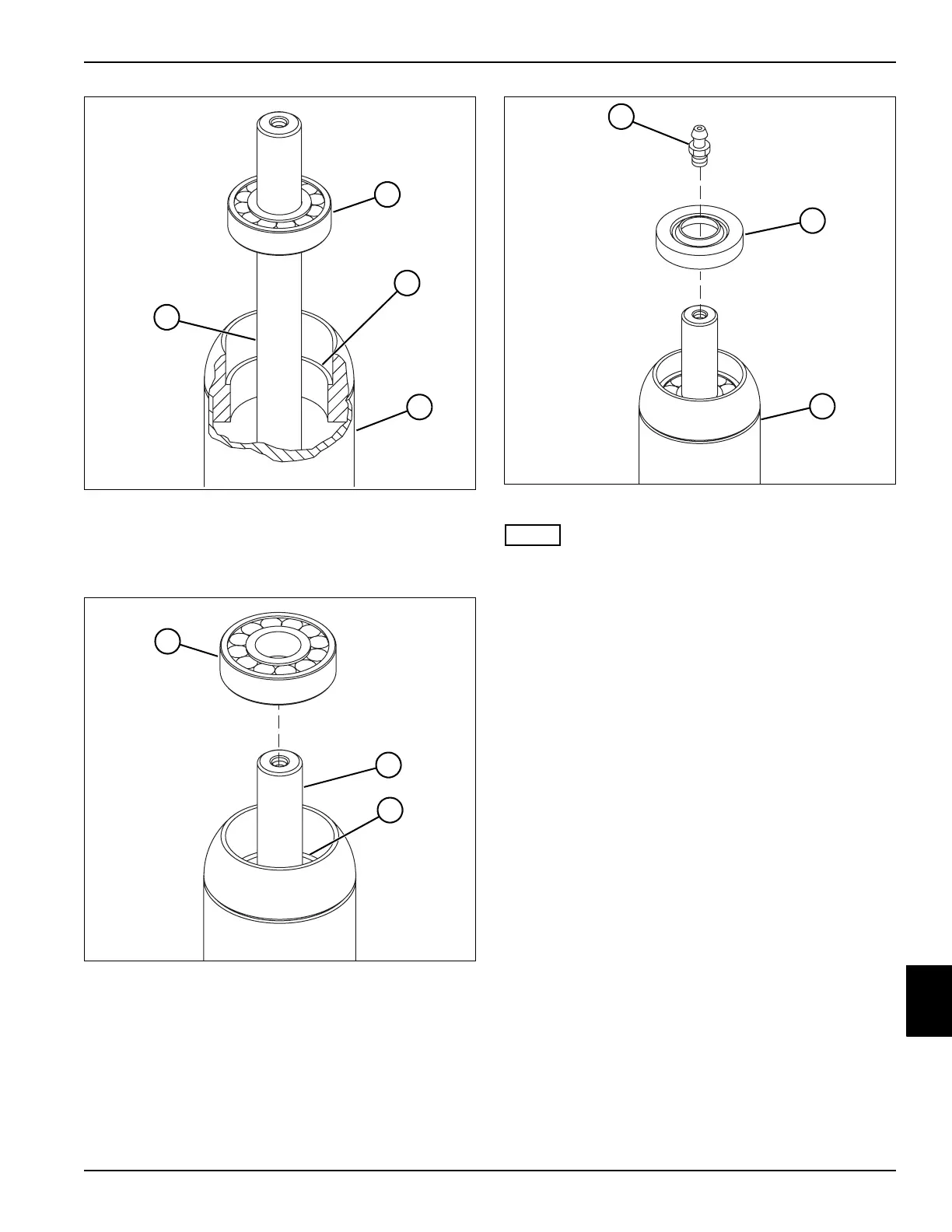

Figure 10-15
4. Install the roller shaft (9) with bearing (6) into the
roller (8) until the bearing is seated against the
shoulder (7) in the roller.
Figure 10-16
5. Pack bearing (10) with a good grade of
general-purpose grease before installation.
6. Install bearing (10) over the other end of the roller
shaft (11), with the sealed side toward the inside of
the roller. Seat the bearing against shoulder (12).
Figure 10-17
NOTE
Always use new grease seals for installation.
7. Apply a thin film of Permatex
®
Anaerobic Sealant (or
equivalent) to the outside diameter of the new grease
seal (14). Install grease seals into each end of the
roller (15).
8. Install grease fittings (13) in both ends of the roller
shaft.
6
TN0316
7
8
9
10
TN0317
11
12
13
TN0318
14
15
