10-12 4157082 First Edition
ACCESSORIES
10
Disassembly—Solid Tube and Grooved
Rollers
See Figure 10-18.

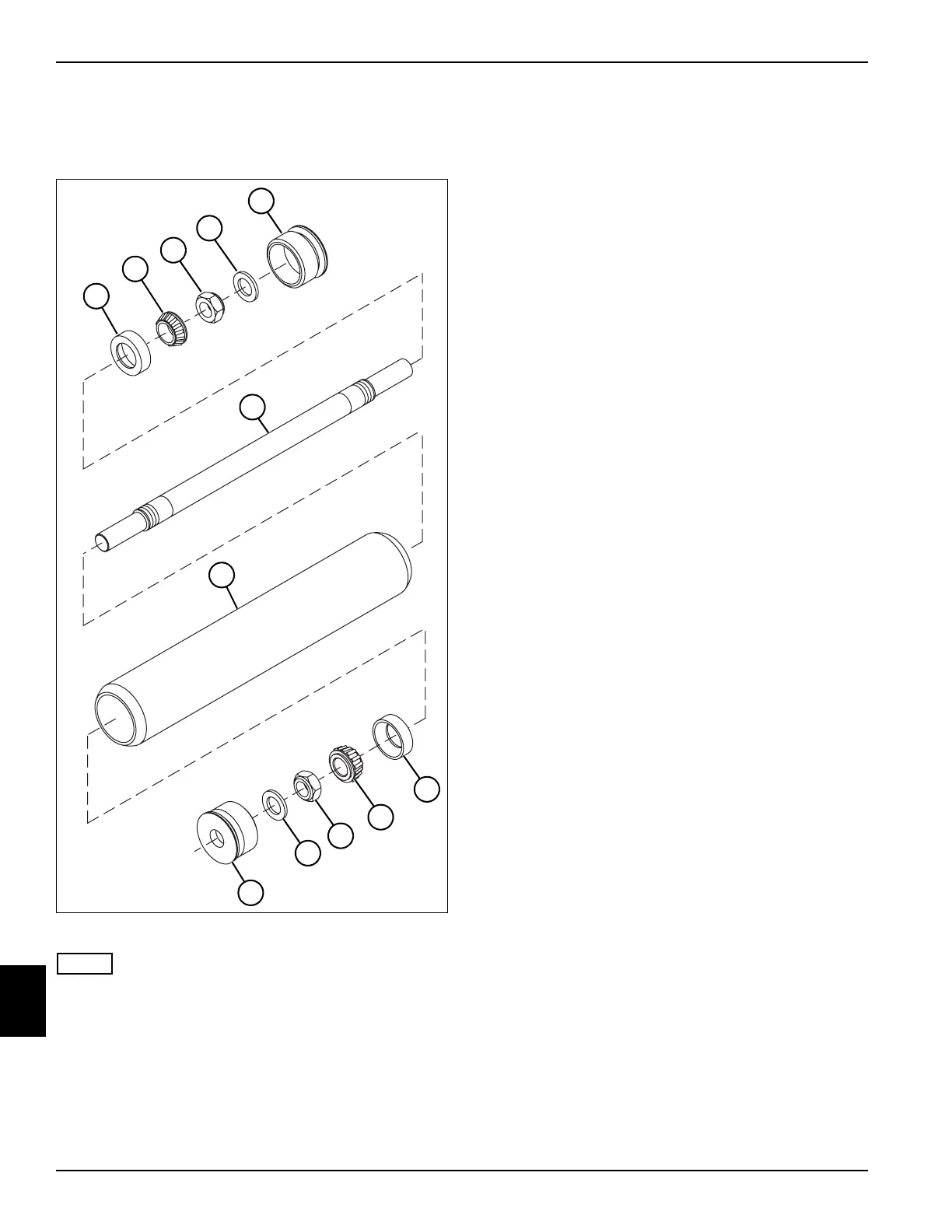

Figure 10-18
NOTE
Solid tube roller shown; grooved roller is similar.
1. Using a puller, remove the adapter seals (5 and 12)
from both ends of the roller assembly.
2. Remove lock nuts (3 and 10) and bearings (2 and 9)
from both ends of the roller assembly.
3. Remove the roller shaft (6).
4. Inspect the bearings (2 and 9). If replacement is
required, use a blind hole bearing puller to remove
the bearing cups (1 and 8) from both ends of the
roller (7).
5. Remove grease seals (4 and 11) from the adapter
seals (5 and 12).
TN0253
1
TN0253
2
3
4
5
6
7
8
9
10
11
12
