3-8 4157082 First Edition
ENGINE
3

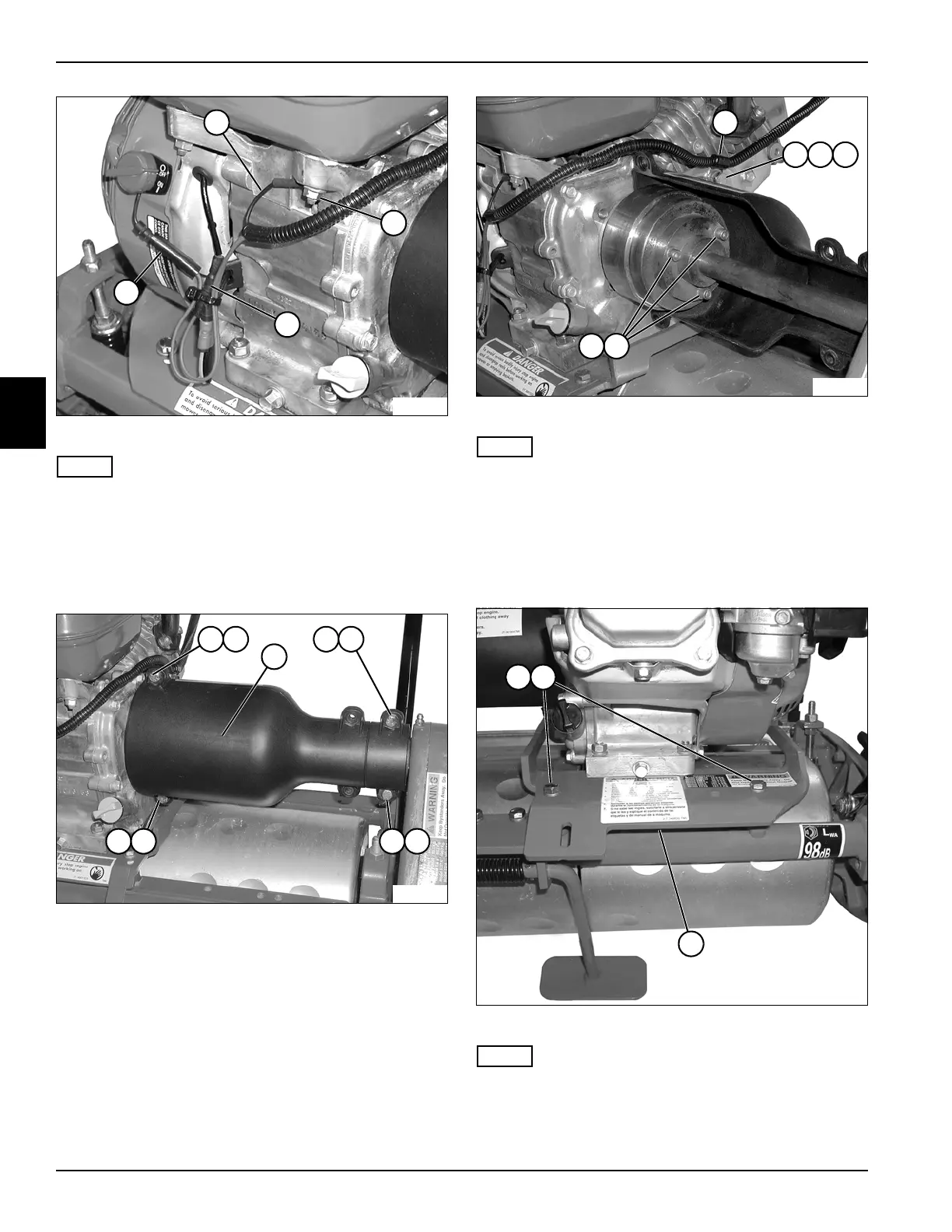

Figure 3-11
NOTE
Label all wires before disconnecting to ensure correct
installation.
7. Remove nut (10) and disconnect ground wire (9).
8. Disconnect engine on/off switch wire (12).
9. Disconnect engine harness wire (11).
Figure 3-12
10. Remove four screws (13) and lock nuts (14), and
remove front half of clutch cover (15).
Figure 3-13
NOTE
Use a strap wrench to prevent clutch from turning while
removing screws.
11. Remove three socket-head screws (20) and lock
washers (21).
12. Remove screw (17), lock washer (18), flat washer
(19), and clamp (16) from engine.
Figure 3-14
NOTE
Support engine before removing mounting hardware.
13. Remove two screws (22) and lock washers (23) from
rear of engine mounting plate (24).
TN0072
9
10
12
11
TN0008
~
13 14 13 14
13 14 13 14
15
17
TN0009
18
16
2120
19
TN0073
24
22 23
