ENGINE
4157082 First Edition 3-9
3

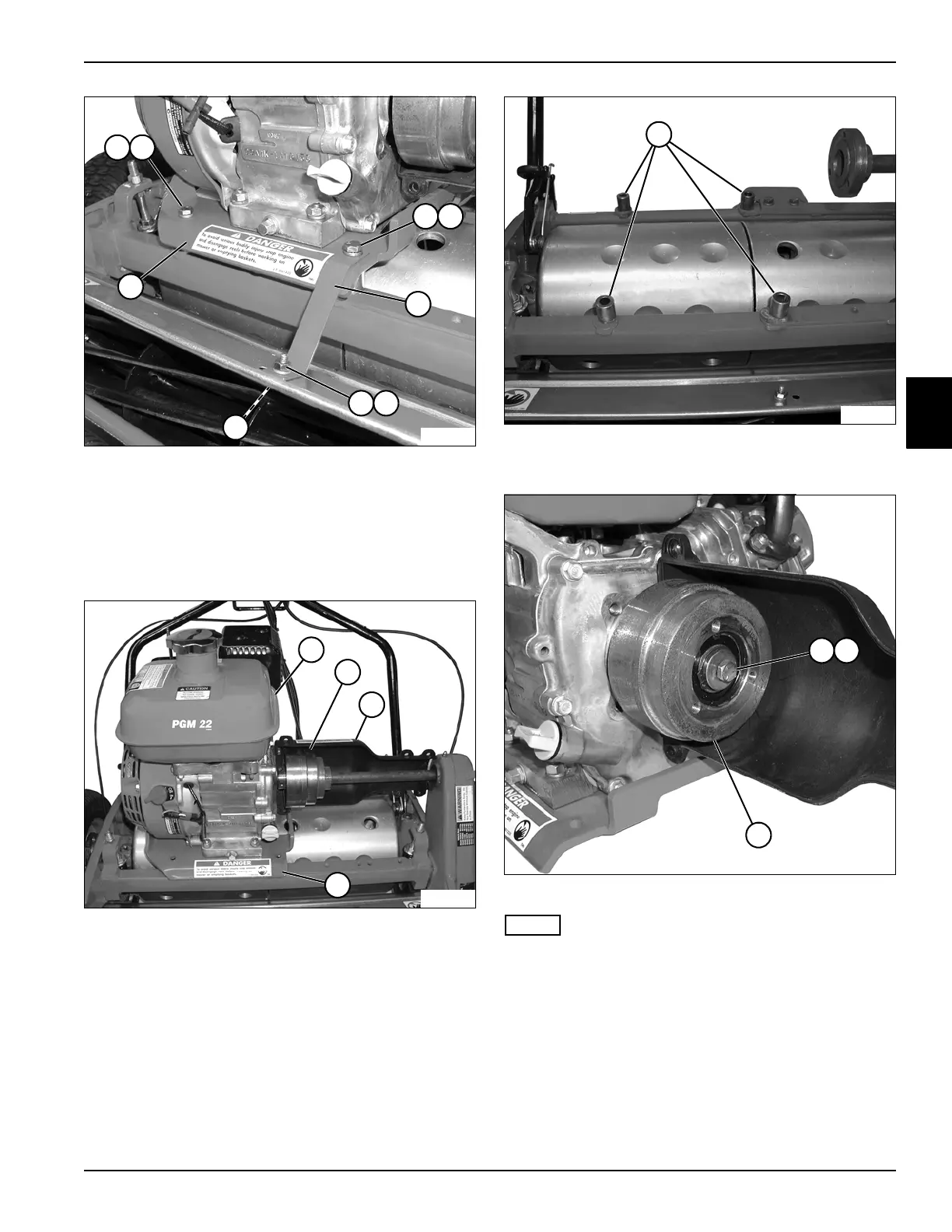

Figure 3-15
14. Remove nut (30), lock washer (31), and screw (32).
15. Remove screw (27), lock washer (28), and bracket
(29) from front of engine mounting plate (33).
16. Remove screw (25) and lock washer (26) from front
of engine mounting plate (33).
Figure 3-16
17. Remove engine (34) with mounting plate (37),
clutch (35), and cover (36).
Figure 3-17
18. Remove four spacers (38) from frame.
Figure 3-18
NOTE
Use a strap wrench to prevent clutch from turning while
removing screw.
19. Remove screw (39) and washer (40) from clutch (41).
25
TN0074
27
29
30
32
26
28
31
33
34
TN0080
35
36
37
TN0079
38
39
TN0075
40
41
