5-20 4157082 First Edition
POWER TRAIN
5
Disassembly and Assembly

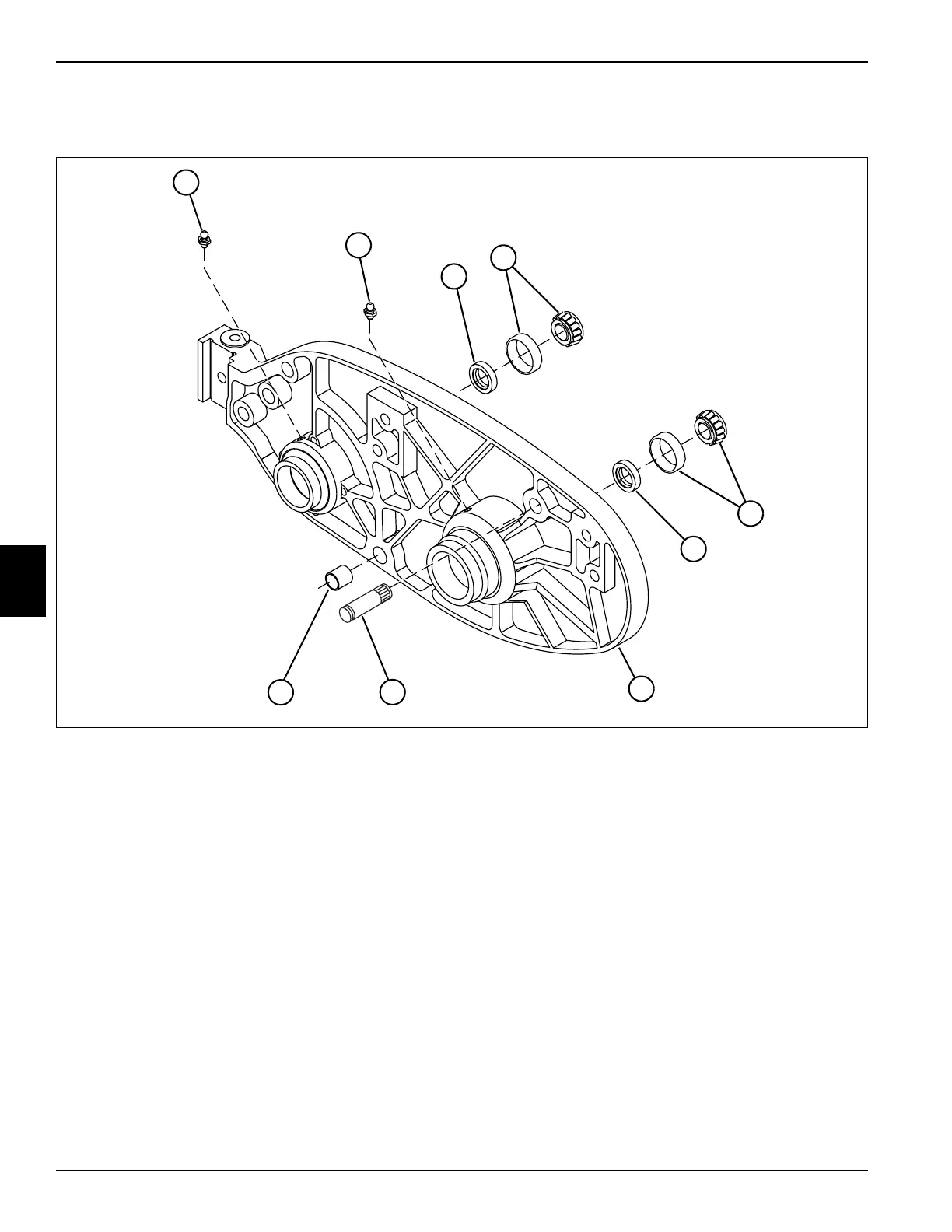

See Figure 5-56.
Figure 5-56
Assembly Note
• Install new oil seals (3 and 5).
• Apply lithium grease NLGI Grade 2 to grease fitting
(1) after assembly is completed.
• Apply Lubriplate
®
grease to grease fitting (2) after
assembly.
1Grease Fitting
2Grease Fitting
3Oil Seal
4 Bearing Cup and Cone (2)
5Oil Seal
6Frame
7 Handle Stud (Press-Fit)
8 Bushing (Press-Fit)
TN0120
3
4
2
1
5
6
7
8
4
To Next Page
