POWER TRAIN
4157082 First Edition 5-21
5
Installation

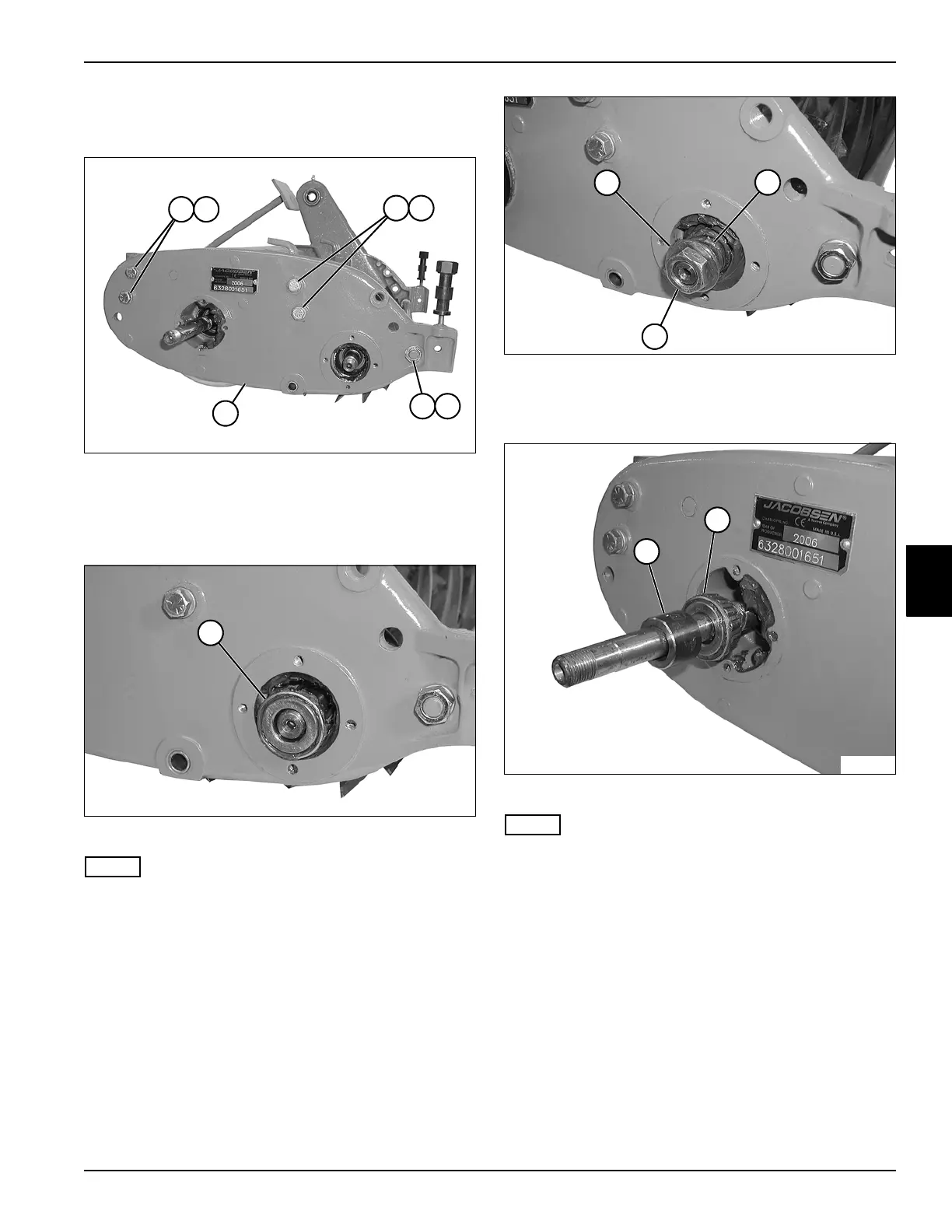

See Figures 5-57 through 5-64.
Figure 5-57
1. Install the right side frame (5) to the front and rear
crossbars using four screws (1) and lock washers (2).
2. Install nut (3) and lock washer (4).
Figure 5-58
NOTE
Pack bearing with lithium grease NLGI Grade 2 before
installation.
3. Install bearing (6) on reel shaft.
Figure 5-59
4. Install spring (8), washer (7), and nut (9) on the reel
shaft.
Figure 5-60
NOTE
Pack bearing with Lubriplate
®
grease before installation.
5. Install bearing (11) and spacer (10) on the traction
drum shaft.
3
TN0113
4
5
1 2
1 2
6
TN0119
7
TN0112
8
9
10
TN0118
11
