5-22 4157082 First Edition
POWER TRAIN
5

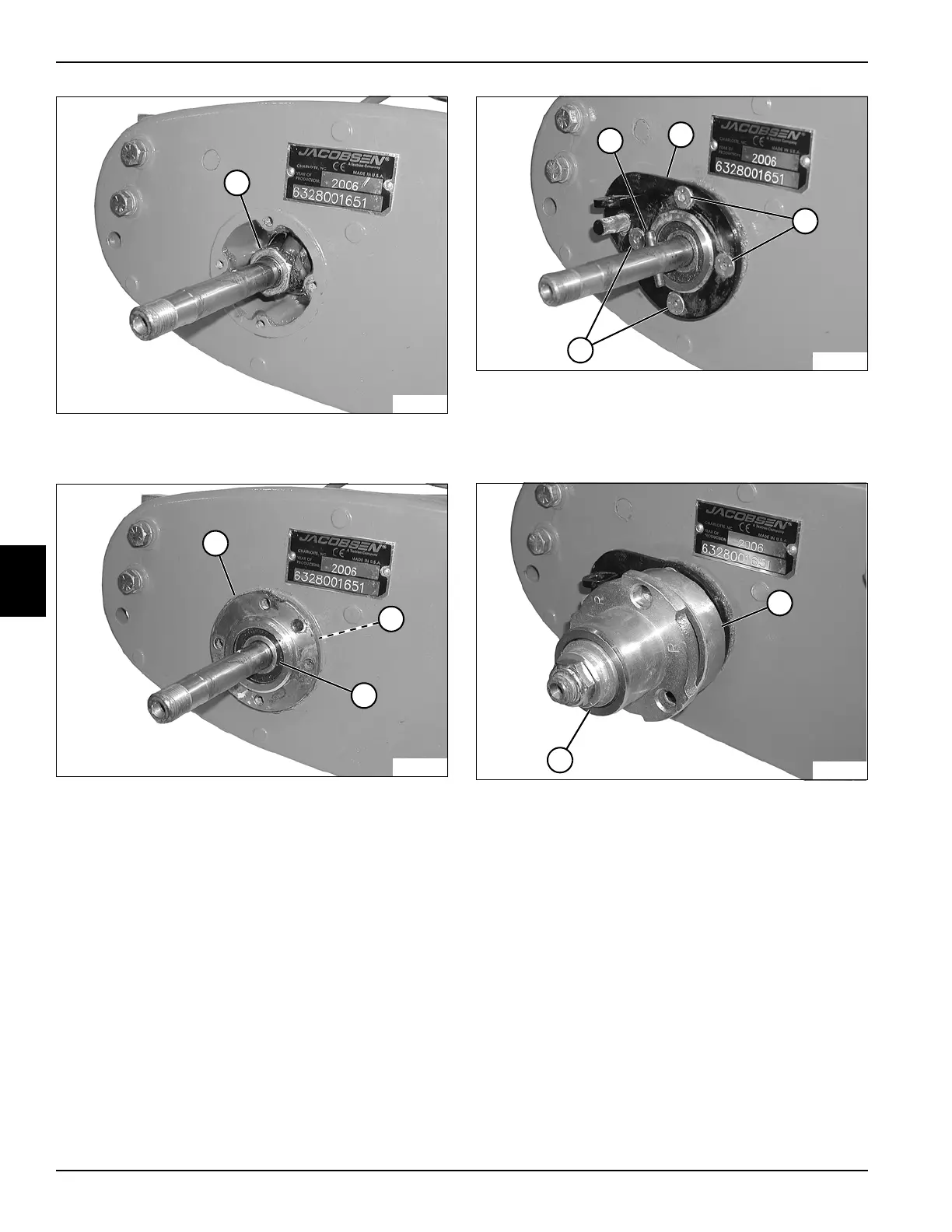

Figure 5-61
6. Install nut (12) on the traction drum shaft.
Figure 5-62
7. Install bearing (15), gasket (14), and bearing housing
(13).
Figure 5-63
8. Install the right brake mounting bracket (17) using
four flat socket-head screws (18).
9. Install roll pin (16) in the transport drum shaft.
Figure 5-64
10. Install the right-side wheel hub (20) and brake band
(19). (See “Wheel Hubs and Bearings” on page 9-3.)
11. Install the engine. (See “Engine and Clutch” on
page 3-7.)
12. Install the handle assembly. (See “Handle Assembly”
on page 6-3.)
13. Install the bedknife shoe. (See “Bedknife Shoe” on
page 8-18.)
14. Install the grass shield. (See “Grass Shield” on
page 8-17.)
15. Adjust reel bearing pre-load. (See “Reel Bearing
Pre-Load Adjustment” on page 8-15.)
12
TN0117
13
TN0116
14
15
TN0110
16
17
18
18
19
TN0109
20
