Thermo Electron 48C User Manual

Chapter 3 Operation
3-7
Single Range Mode
In single range mode, there is one range, one averaging time, and one span coefficient.
The two CO analog outputs are arranged on the rear panel terminal strip as shown in
Figure 3-3. To use the single range mode, set option switches 4 and 5 off. For more
information about setting the internal option switches, see “Internal Option Switches,”
later in this chapter.
42P942-2

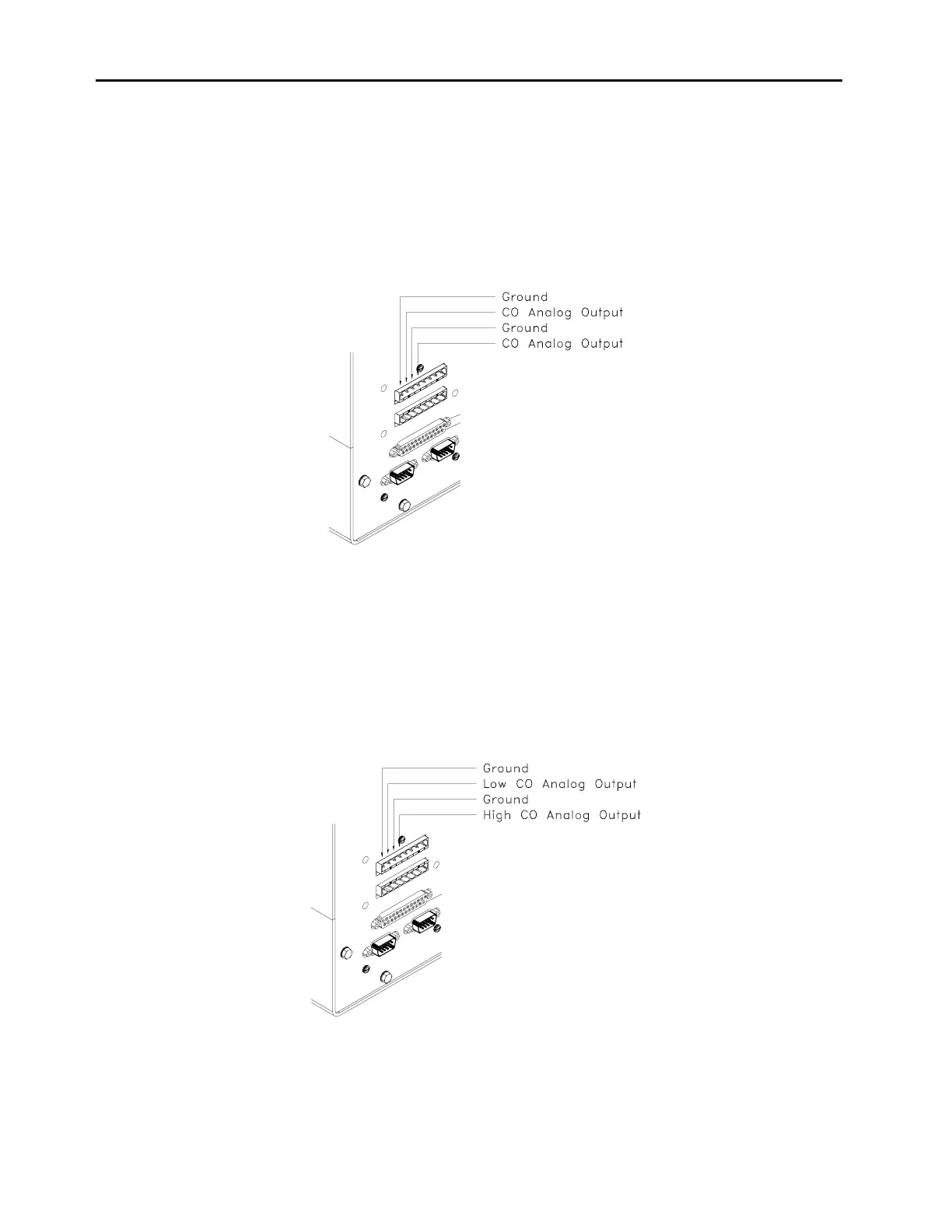

Figure 3-3. Pin-Out of Rear Panel Terminal Strip in Single Range Mode
Dual Range Mode
In dual range mode, there are two independent CO analog outputs as shown below.
42P943-3
Figure 3-4. Pin-Out of Rear Panel Terminal Strip in Dual Range Mode
