Chapter 3 Operation
3-41
Motor Speed

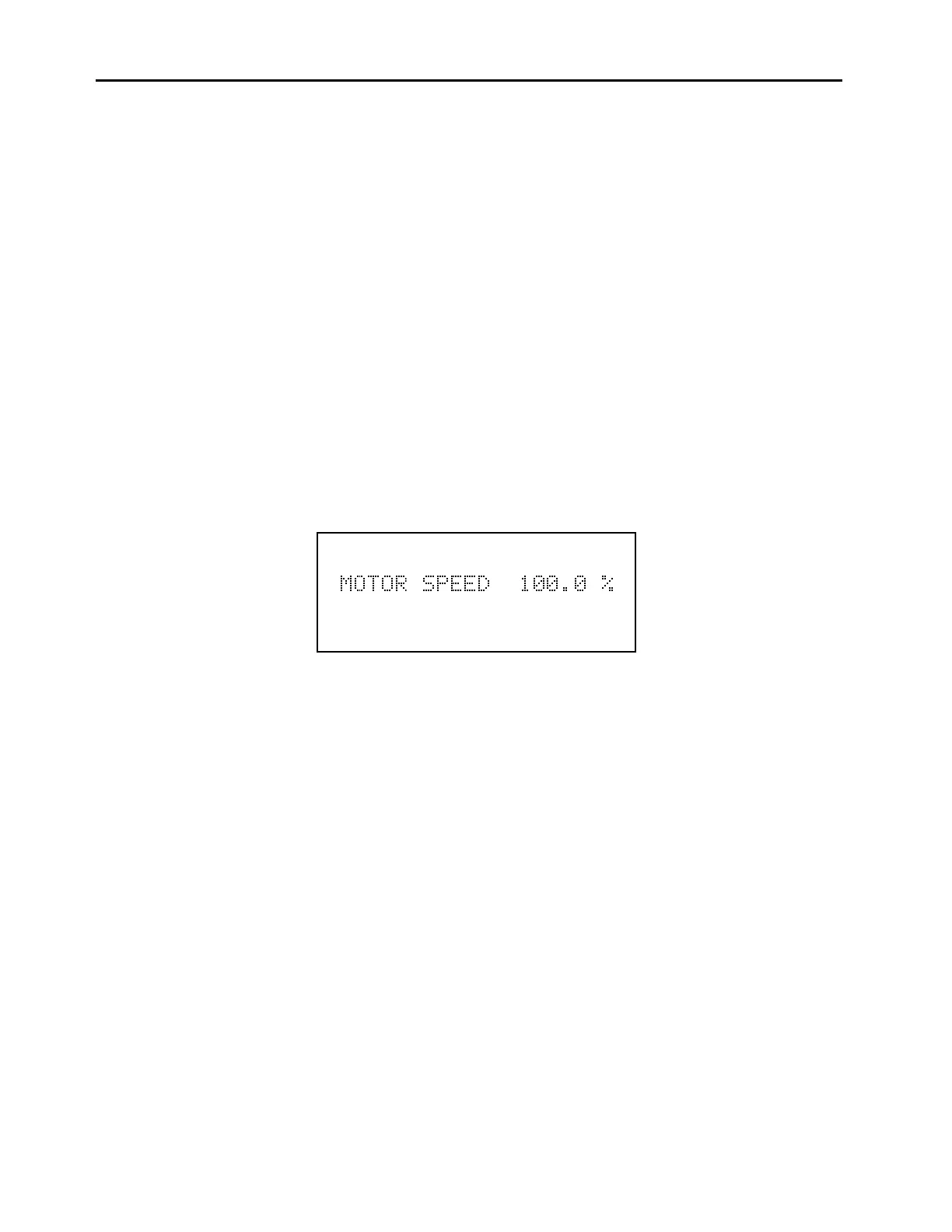

The Motor Speed screen, shown below, displays the status of the chopper motor.
A reading of 100.0% means that the motor speed is correct. A reading other than
100.0% indicates that there is a problem with the chopper motor or power supply.
To display the Motor Speed screen:
From the Main Menu choose Diagnostics
From the Diagnostics menu choose Motor Speed
To use the Motor Speed screen:
This is a view only screen
Press
MENU
to return to the Diagnostics menu
Press
RUN
to return to the Run screen
Motor Speed Screen
