Chapter 3 Operation
3-58
AGC Intensity

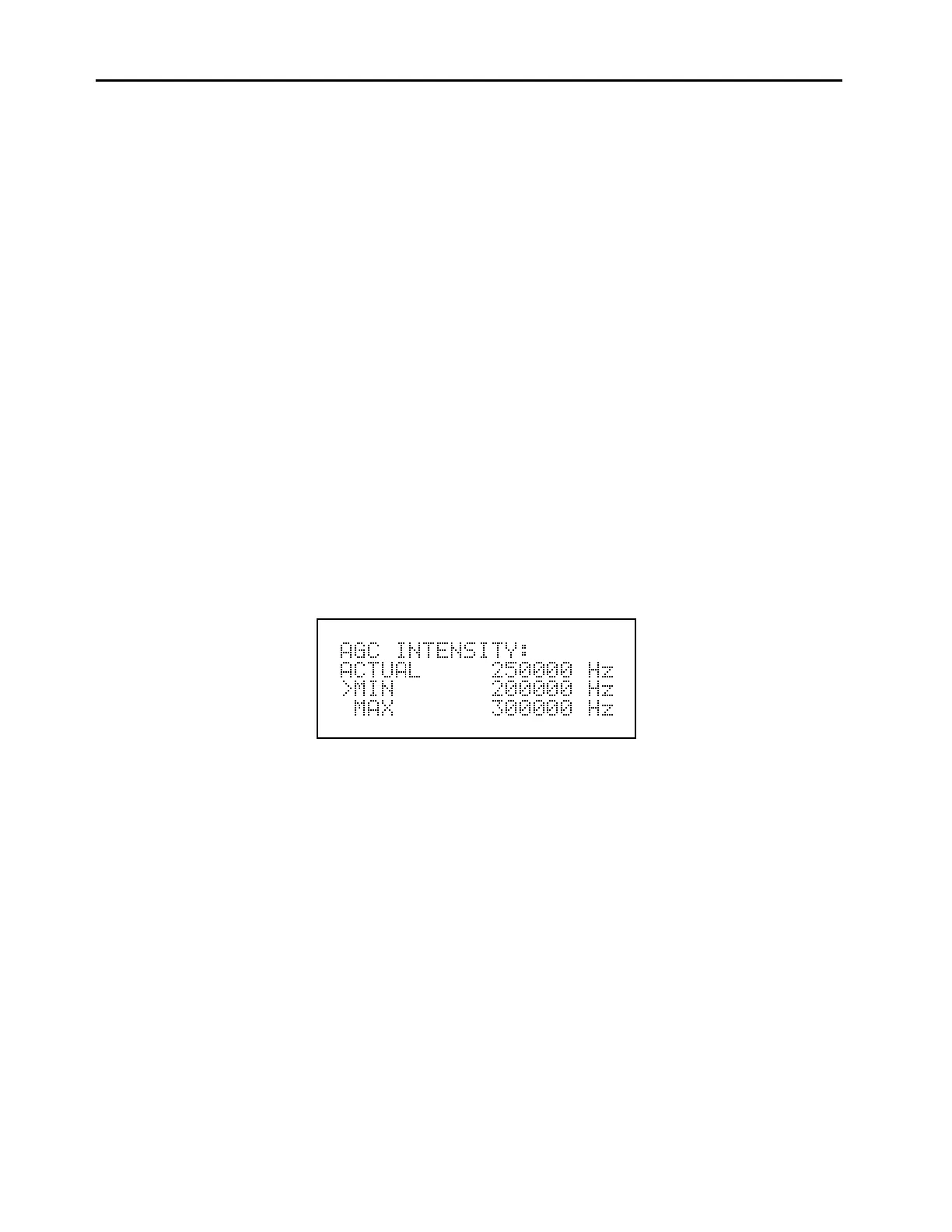

The AGC Intensity screen, shown below, displays the current AGC Intensity reading and
the factory-set min and max alarm limits. The min and max alarm limits can be changed
when the instrument is in the service mode. Acceptable alarm limits range from 150,000
to 300,000 Hertz. If the AGC intensity reading goes beyond either the min or max alarm
limit, an alarm is activated. The word “Alarm” appears in the Run screen and in the Main
Menu.
To display the AGC Intensity screen:
From the Main Menu choose Alarm
From the Alarm menu choose AGC Intensity
To use the AGC Intensity screen:
Use the
↑
and
↓
pushbuttons to move up and down (service mode on)
Press
ENTER
to select a choice (service mode on)
Press
MENU
to return to the Alarm menu
Press
RUN
to return to the Run screen
Set Min AGC Intensity Screen
