Thermo Electron 48C - Test Analog Outputs

Chapter 3 Operation
3-42
Test Analog Outputs
The Test Analog Outputs menu contains three choices as shown below. These
functions enable the analog outputs to be set to zero and fullscale in order to
adjust the analog outputs to agree with the front panel display. In addition, a
digital to analog (DAC) ramp can be generated to fully test the analog outputs.
To display the Test Analog Outputs menu:

From the Main Menu choose Diagnostics

From the Diagnostics menu choose Test Analog Outputs
To use the Test Analog Output menu:

Use the
↑
and
↓
pushbuttons to move the cursor up and down

Press
ENTER
to select a choice

Press
MENU
to return to the Instrument Controls menu

Press
RUN
to return to the Run screen

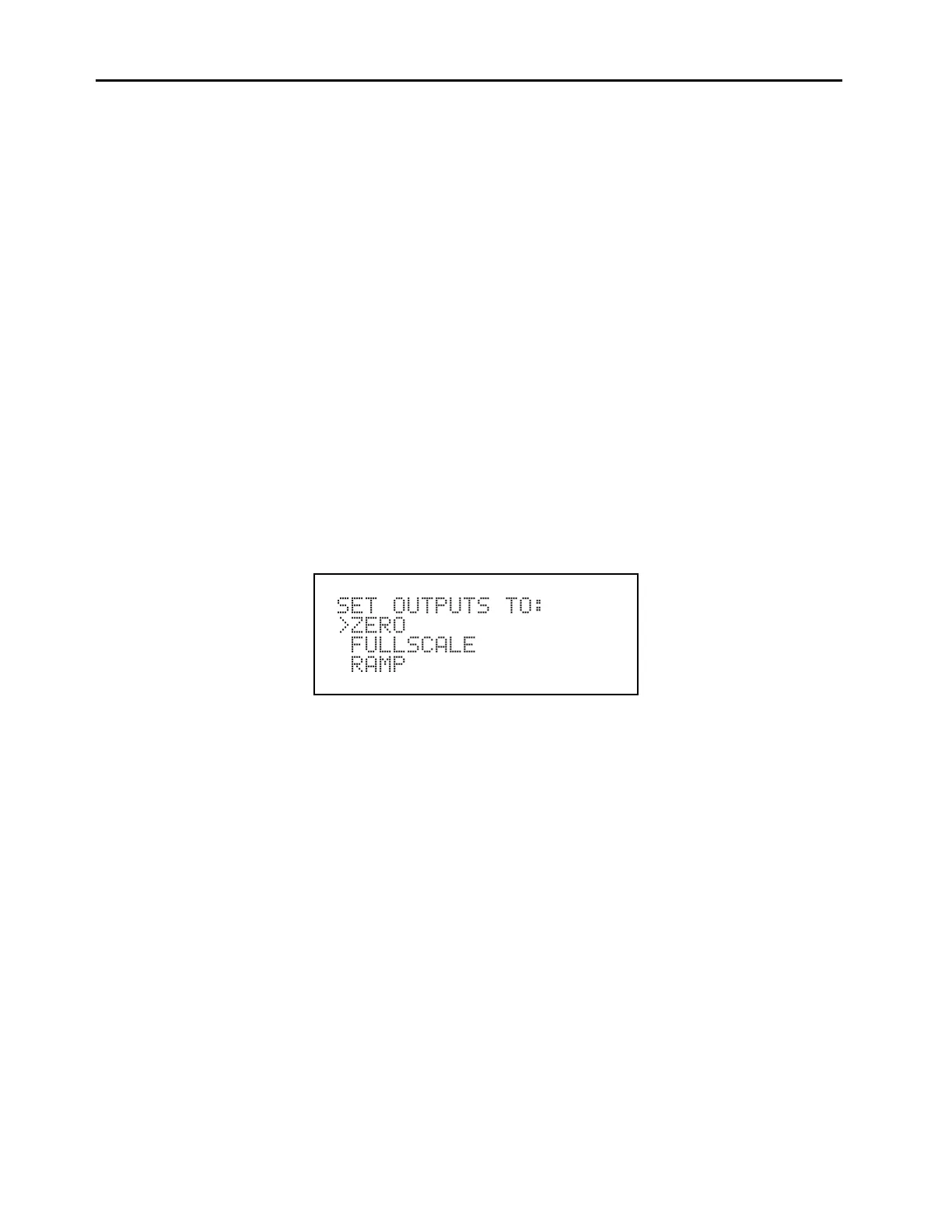

Test Analog Outputs Menu
