Chapter 3 Operation
3-65
Flow
The Flow screen, shown below, shows the flow reading. The flow reading is updated
every second. This screen is used while the flow sensor potentiometers are adjusted. The
potentiometer closest to the floor plate is the zero adjust potentiometer and the
potentiometer farthest from the floor plate is the span potentiometer.
CAUTION:
Some internal components can be damaged by small amounts of static
electricity. A properly grounded antistatic wrist strap must be worn while handling any
internal component. For more information about appropriate safety precautions, see
Chapter 7, “Servicing.”
To display the Flow screen:
From the Main Menu choose Service Mode
From the Service Mode menu choose Flow
To use the Flow screen:
This is a view only screen
Press
MENU
to return to the Service Mode menu
Press
RUN
to return to the Run screen

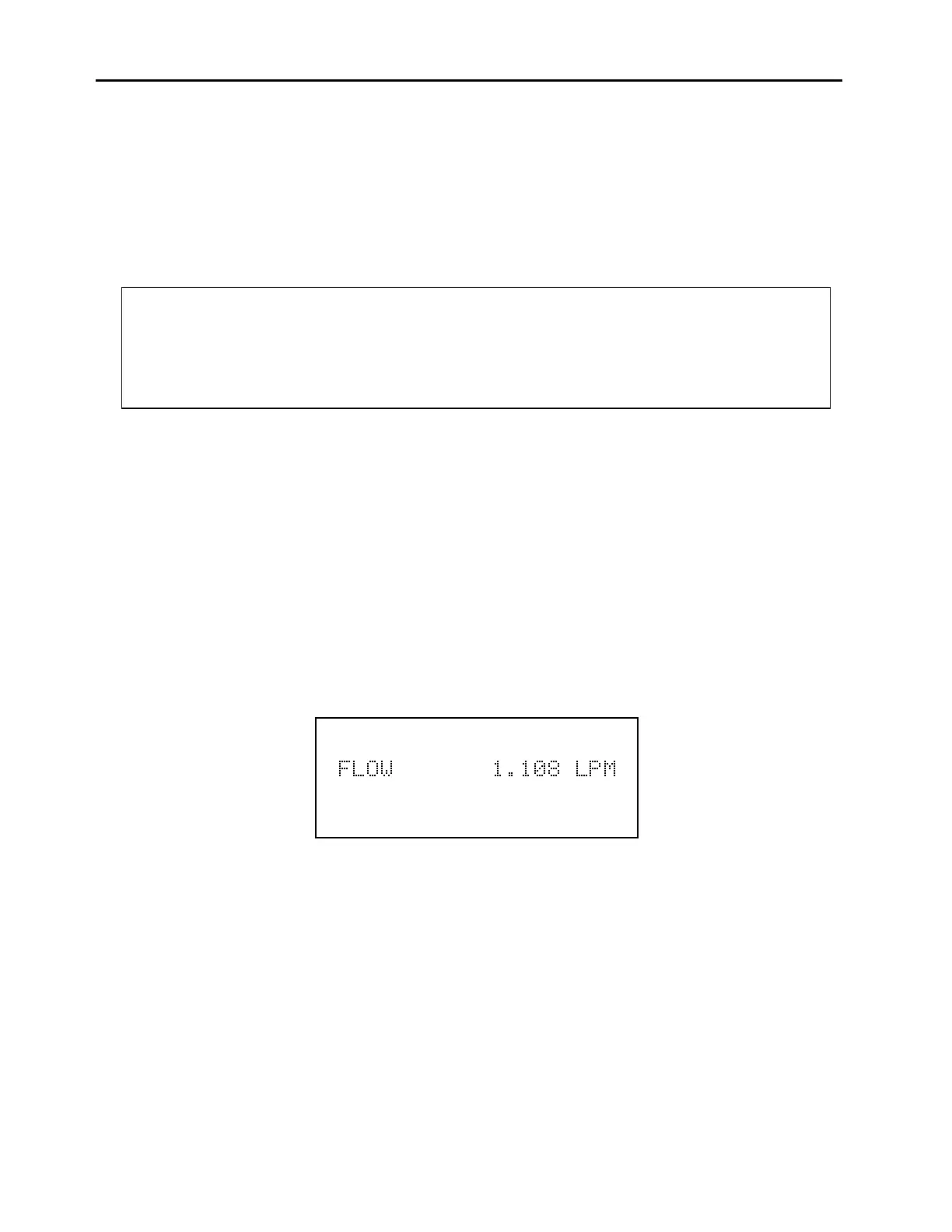

Flow Screen
To Next Page
