Chapter 3 Operation
3-59
Min and Max AGC Intensity Limits

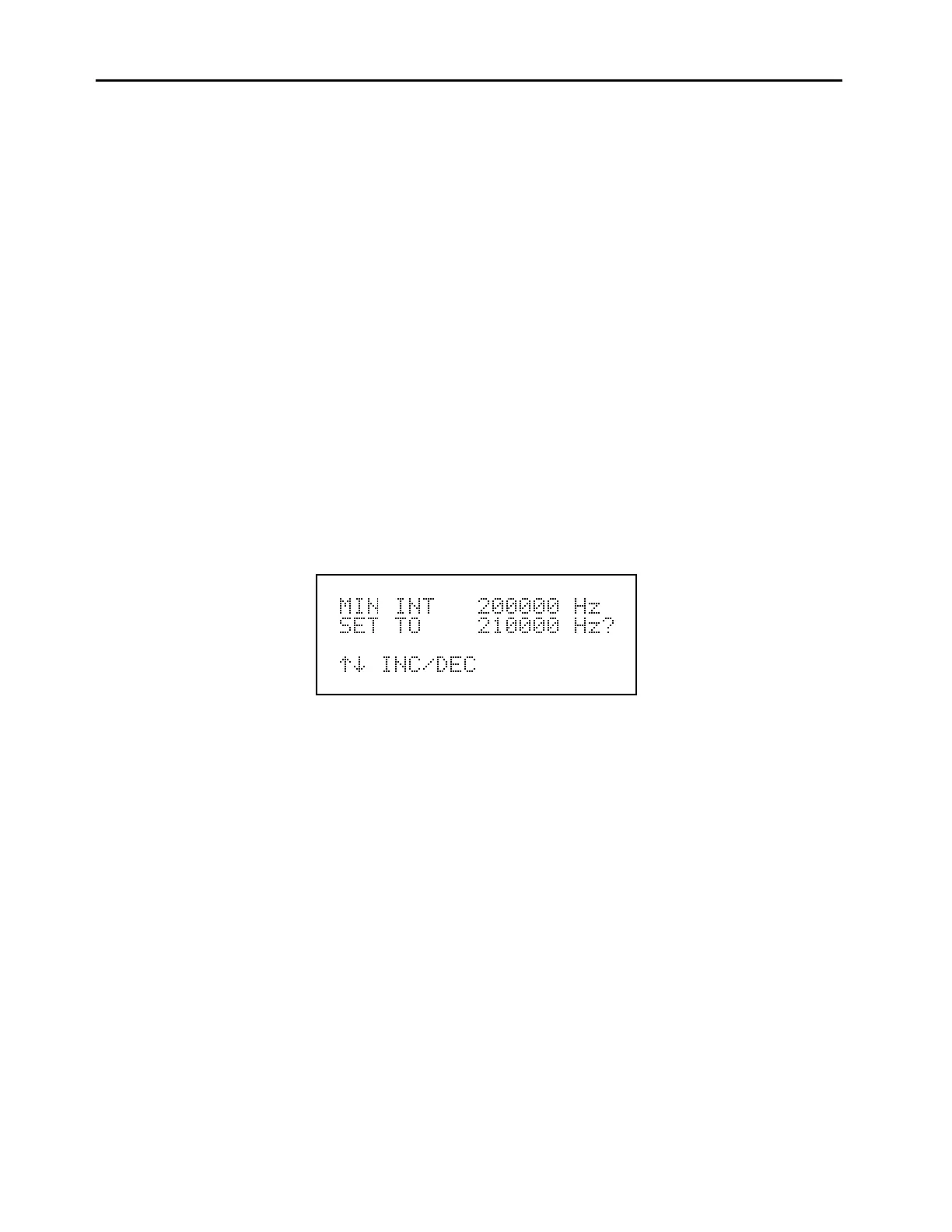

. The Min AGC Intensity limit screen,
shown below, is accessible only when the instrument is in the service mode. It is used to
change the min AGC intensity alarm limit. The min and max AGC Intensity screens
function the same way.
To display the Min or Max AGC Intensity limit screen (service mode on):
From the Main Menu choose Alarm
From the Alarm menu choose AGC Intensity
From the AGC Intensity menu choose Min or Max
To use the Min or Max AGC Intensity limit screen (service mode on):
Use the
↑
and
↓
pushbuttons to increment/decrement the value
Press
ENTER
to accept the change
Press
MENU
to return to the AGC Intensity menu
Press
RUN
to return to the Run screen
Set Min Intensity Screen
