Thermo King SB-210+ - Figure 119:Pretrip Display; Figure 120:Pass Pretrip Display

Optional Rear Remote Control Panel
144
4. When the Pretrip Test is running the display will show PrE
trP. The HMI Control Panel will show the Pretrip Test
progress.

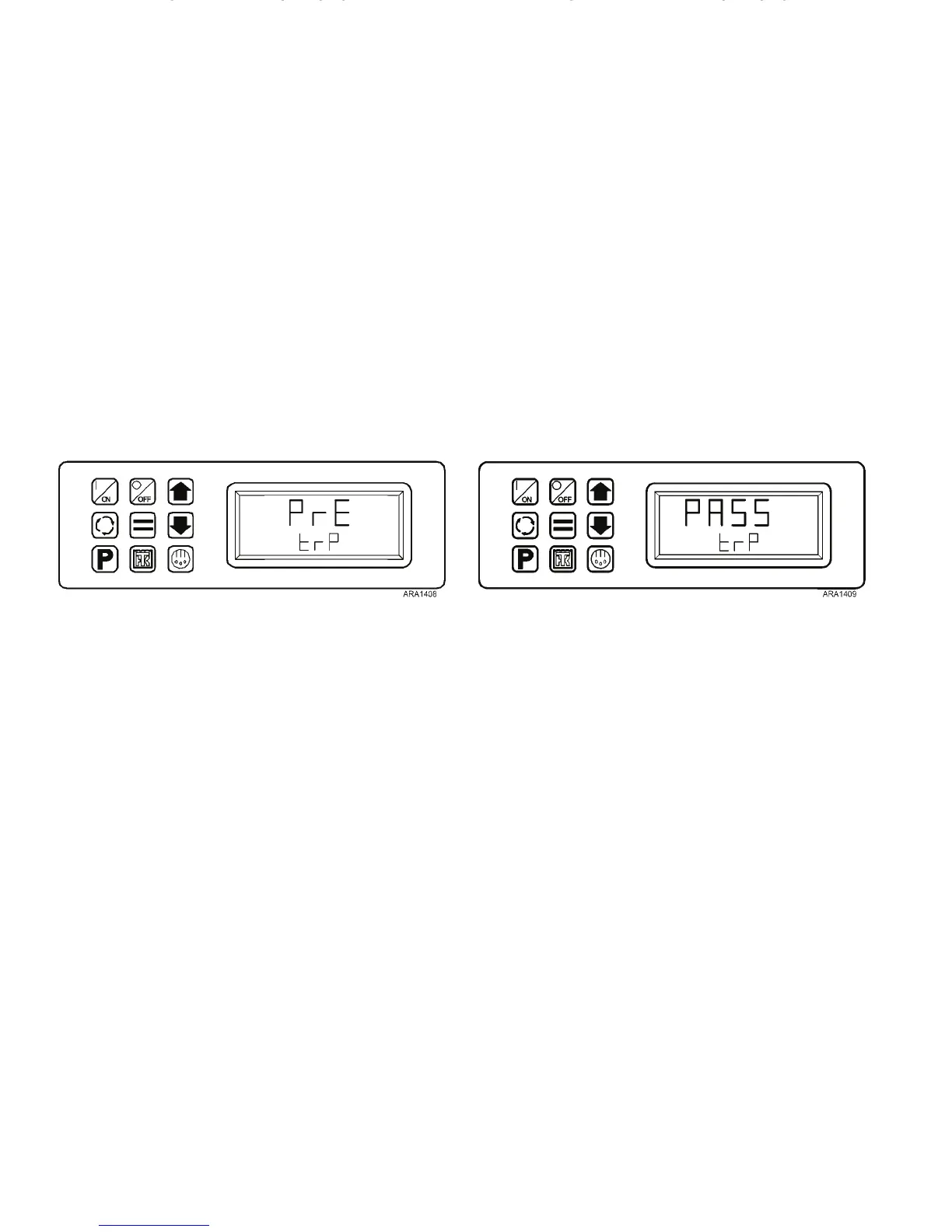

Figure 119: Pretrip Display
5. When the Pretrip Test is complete the display will show
PASS, CHEC or FAIL. Pressing the Select Key will return
to the Remote Standard Display.
Figure 120: Pass Pretrip Display
