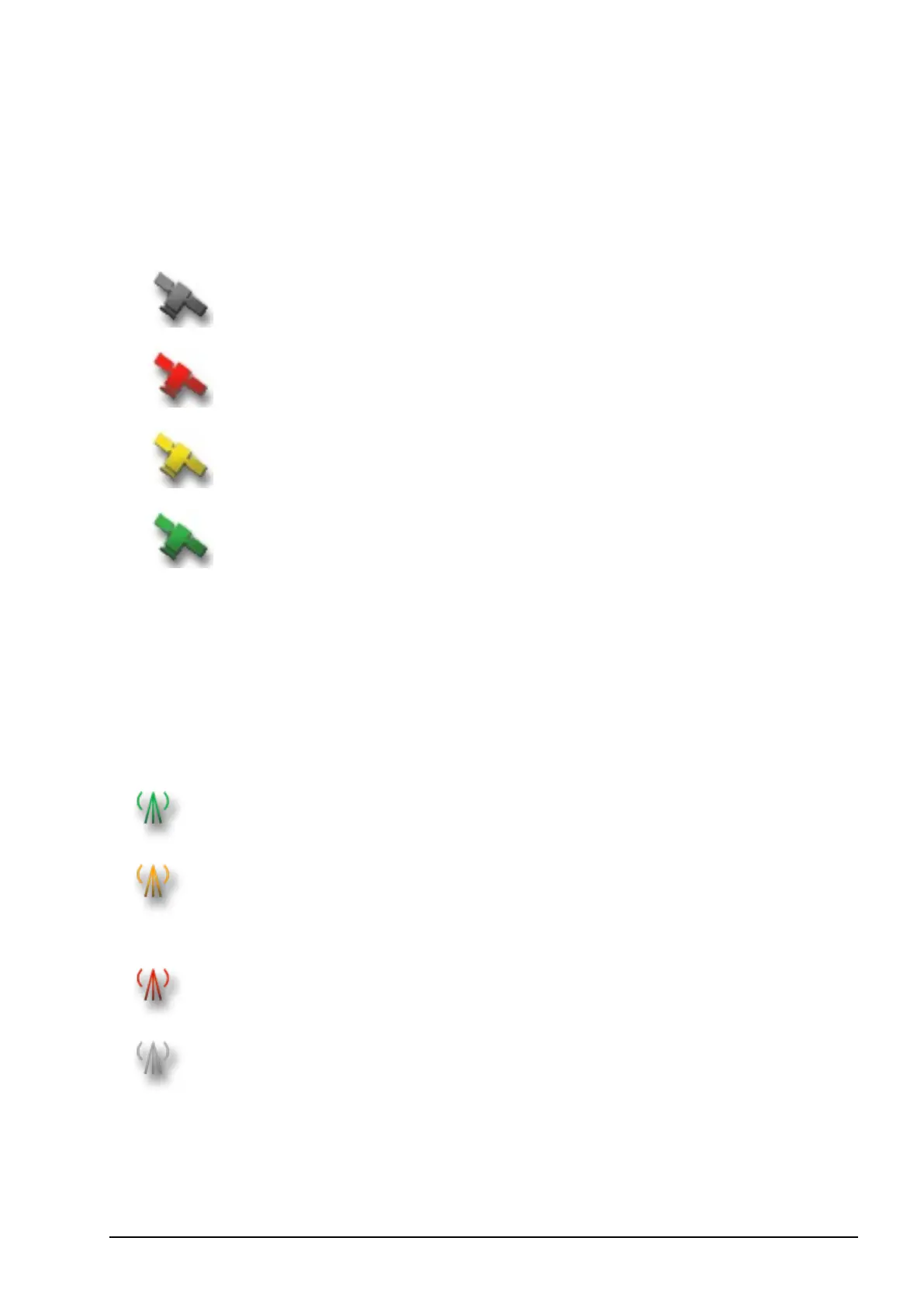

Satellite icon
A green satellite icon shows that the GPS and correction source are
converged and is based on HDOP. Other colors indicate that
information is not available:
Grey: No correction source, no signal
Red: Poor accuracy
Yellow: Average accuracy
Green: Good accuracy
Note: If AUTOMATIC was chosen during GPS setup, the colors may
shift during operation as different correction sources are detected. If a
specific source was chosen during GPS setup, then the system will seek
to detect the chosen system. Refer to page 31 for more information on
correction sources and to page 60 for more information on HDOP.
Correction icon
Green: Correction source has converged for auto steering.
(Position accuracy on steering status panel page is green.)
Yellow: Correction source received but not accurate enough to
engage auto-steering. Check differential correction and
position accuracy on steering status.
Red: Correction source received is different from
configuration.
Grey: No correction source received.
