9.7. Monitoring on the dashboard
62

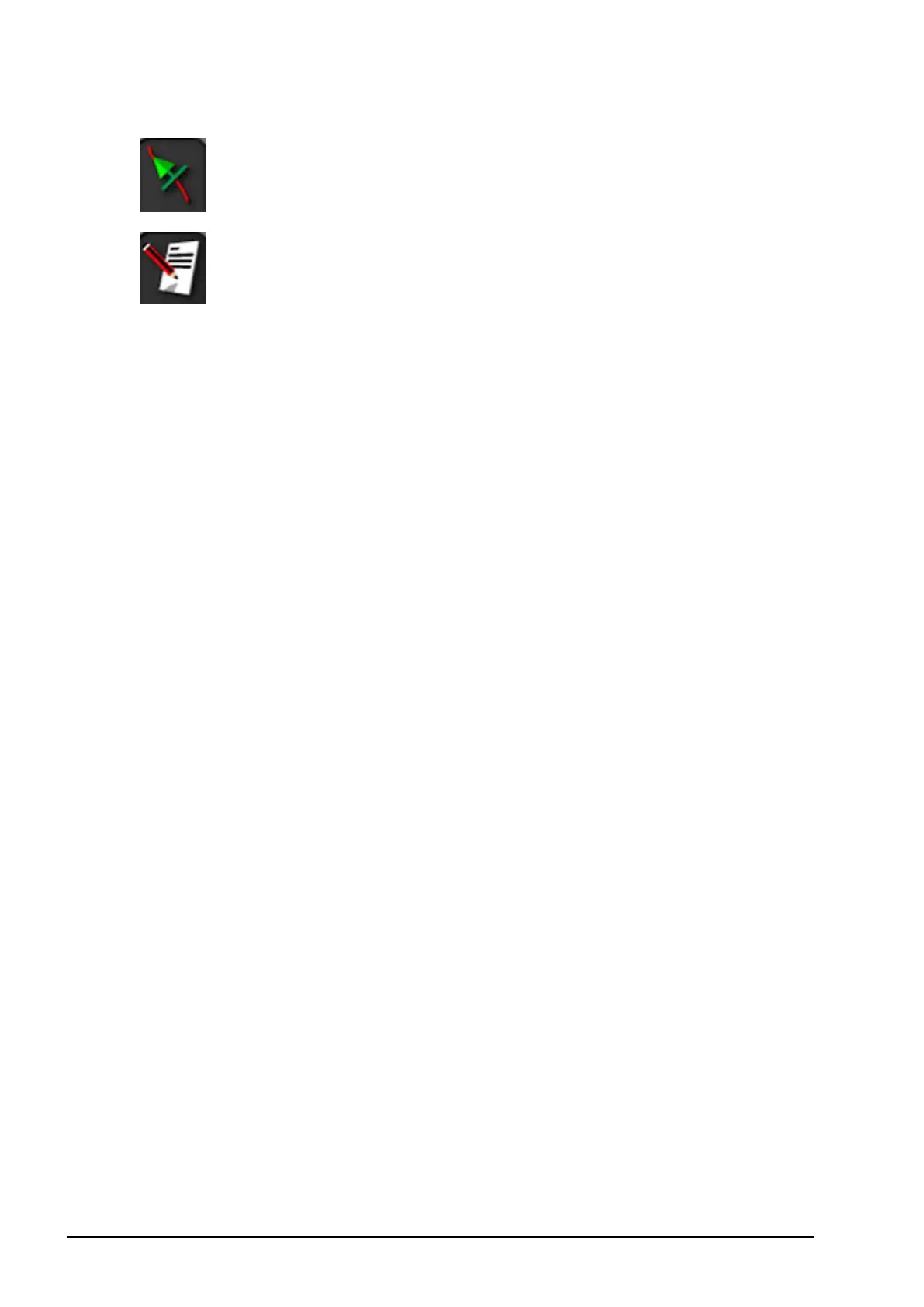

Guidance Settings
Job Notes - Select anywhere in the Job Notes screen to bring
up a keyboard.
If an implement with more than one boom is selected, an icon is
displayed to select the boom about which to view information.
9.7. Monitoring on the dashboard
The display on the dashboard can be adjusted.
9.7.1. Customizing the dashboard
1. Select anywhere on the dashboard to customize what is shown on
the dashboard.
2. Press again on the particular panel to be customized and further
options display.
3. Deselect and select options as required.
4. Confirm the new dashboard display. The chosen options appear
on the dashboard.
GPS and correction source
The GPS panel shows:
l System readiness (satellite icon) and the number of satellite
signals available
l Correction quality and position accuracy
l Correction source in use (DGPS, PPS, RTK, Float RTK, SBAS,
OmniSTAR VBS, Invalid, Unknown, Estimated, GPS, Manual
Input).
Accuracy to within 2 cm is high level accuracy.
Note: If correction source is set to Autonomous, the dashboard
displays GPS.
