10.2. Calibrating the wheel angle sensor
68

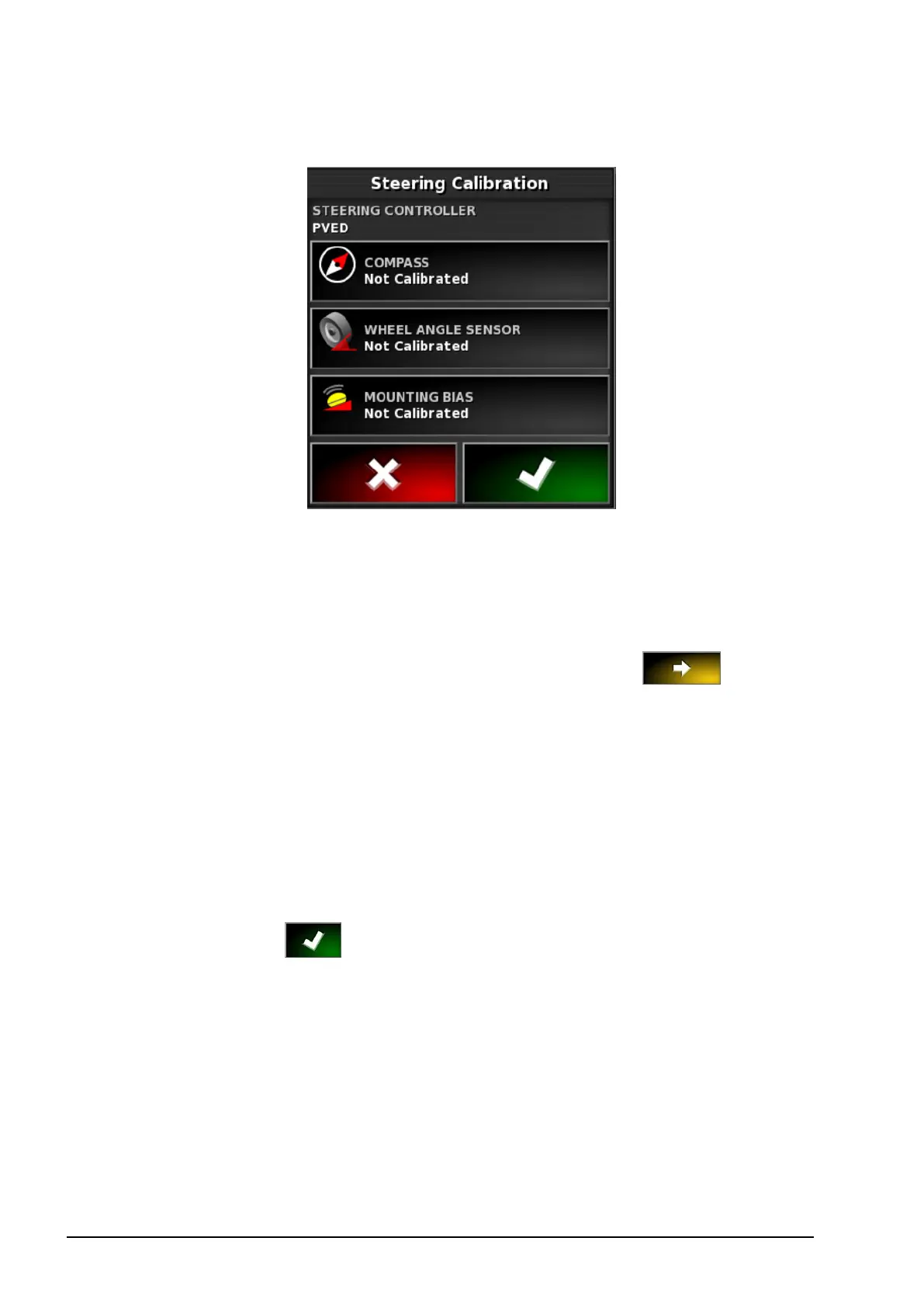

The Steering Calibration screen displays.
2. Select COMPASS. If the component reports as calibrated, still
complete the calibration procedure if the receiver has not been
calibrated on this vehicle.
3. Read the screen and find an appropriate flat place away from high
voltage and large metal objects. Then select next .
4. Drive the vehicle in a circle at approximately 75% of full lock,
the direction does not matter. Once 1 and ½ turns have been
completed, stop and select next.
5. Drive the vehicle straight ahead for approximately 100 m then
STOP the vehicle. Select next.
6. The system will begin to save calibration data. Wait until the
screen states that the calibration is completed successfully and
then confirm .
10.2. Calibrating the wheel angle sensor
Note: Wheel angle sensor calibration should be performed once
every 6-12 months.
