E6582062
2-57 2. Installation and wiring
2
3
9
10

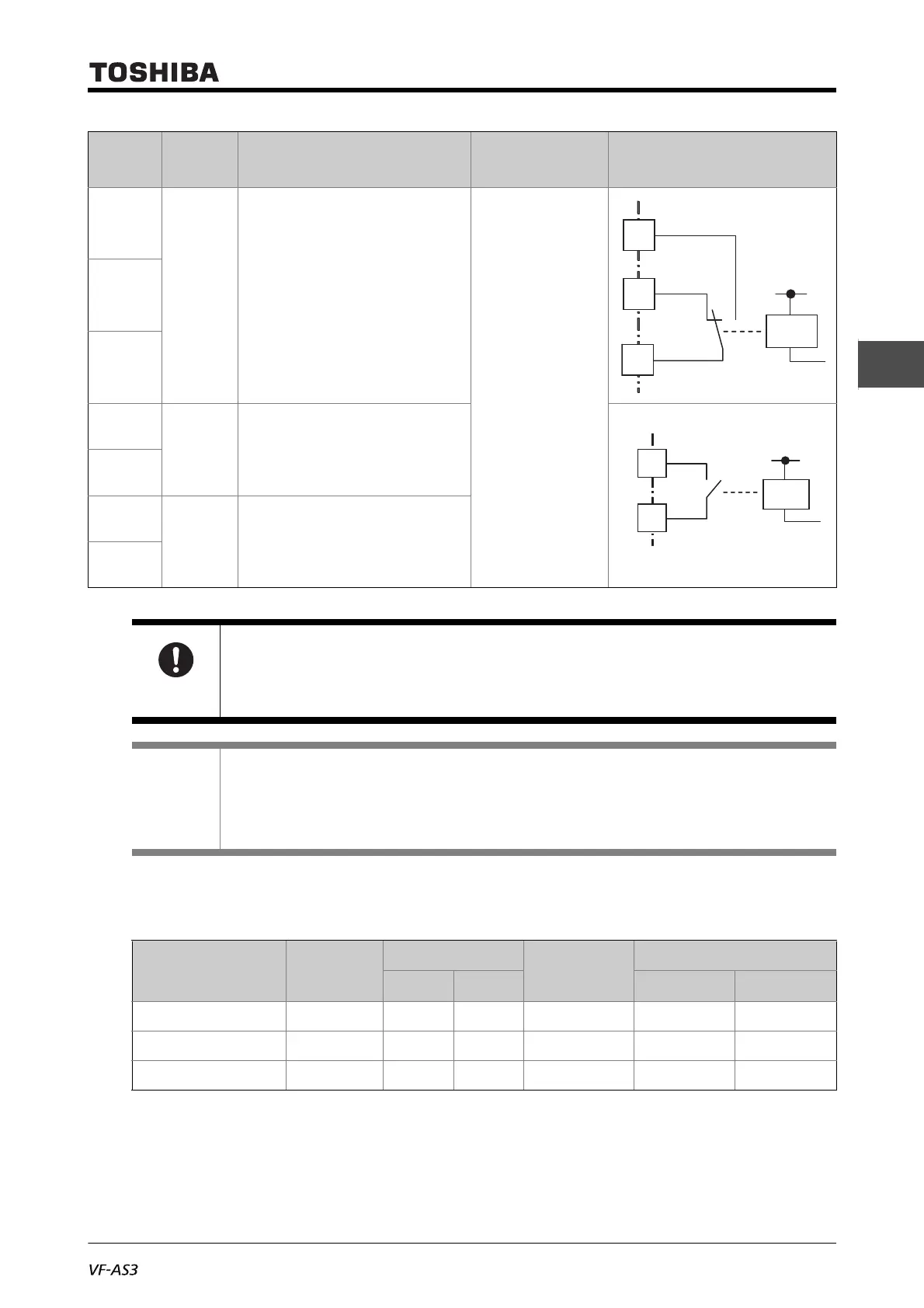

■ Recommended tightening torque of control terminal screws
Control terminal torque and wire strip length
FLA
Output
Multifunction programmable relay
contact output. Operation of the
protection function of the inverter
is detected in the default setting.
The contact across [FLA]-[FLC] is
closed and [FLB]-[FLC] is opened
during protection function operation.
Maximum contact
capacity
• 250 Vac-2 A
(cosφ=1)
• 30 Vdc-2 A (at
resistive load)
• 250 Vac-1 A
(cosφ=0.4)
• 30 Vdc-1A
(L/R=7 ms)
Minimum contact
capacity
• 24 Vdc-5 mA
Life
• 100000 times
FLB
FLC
R1A
Output
Multifunction programmable relay
contact output. A low-speed signal
is output in the default setting.
R1C
R2A
Output
Multifunction programmable relay
contact output. It is not assigned in
the default setting. The function
can be set with <F134: Terminal
R2 function >.
R2C
Important
• With relay contact output, chattering (momentary ON/OFF of contact) is generated by external
factors of the vibration and the impact, etc. In particular, please set a filter of 10 ms or more, or
timer for measures when connecting it directly to the input unit of the programmable controller.
Reference
• To change the function of the terminals [F], [R], [RES], and [S1] - [S5] → Refer to [6. 3. 2]
• To change the function of the terminals [FP], [FL], [R1], and [R2] → Refer to [6. 3. 3]
• To change the function of the terminals [RR] and [RX] → Refer to [6. 2]
• To change the function of the terminals [FM] and [AM] → Refer to [5. 2. 6], [6. 33. 3]
Screw size
Tor qu e
Strip length
(mm)
Screwdriver size
(N・m) (lb・in)
Width (mm) Thickness
Relay M3 0.5 4.4 11 3.5 0.5
Except Relay (2nd) M3 0.5 4.4 6 or 7 3.5 0.5
Except Relay (1st) M3 0.5 4.4 6 3.5 0.5
Terminal
symbol
Input/
output
Function
Electrical
specifications
Internal circuit
+24V
R1A
R2A
R1C
R2C
To Next Page
