refer to chapter 6.2: Erection

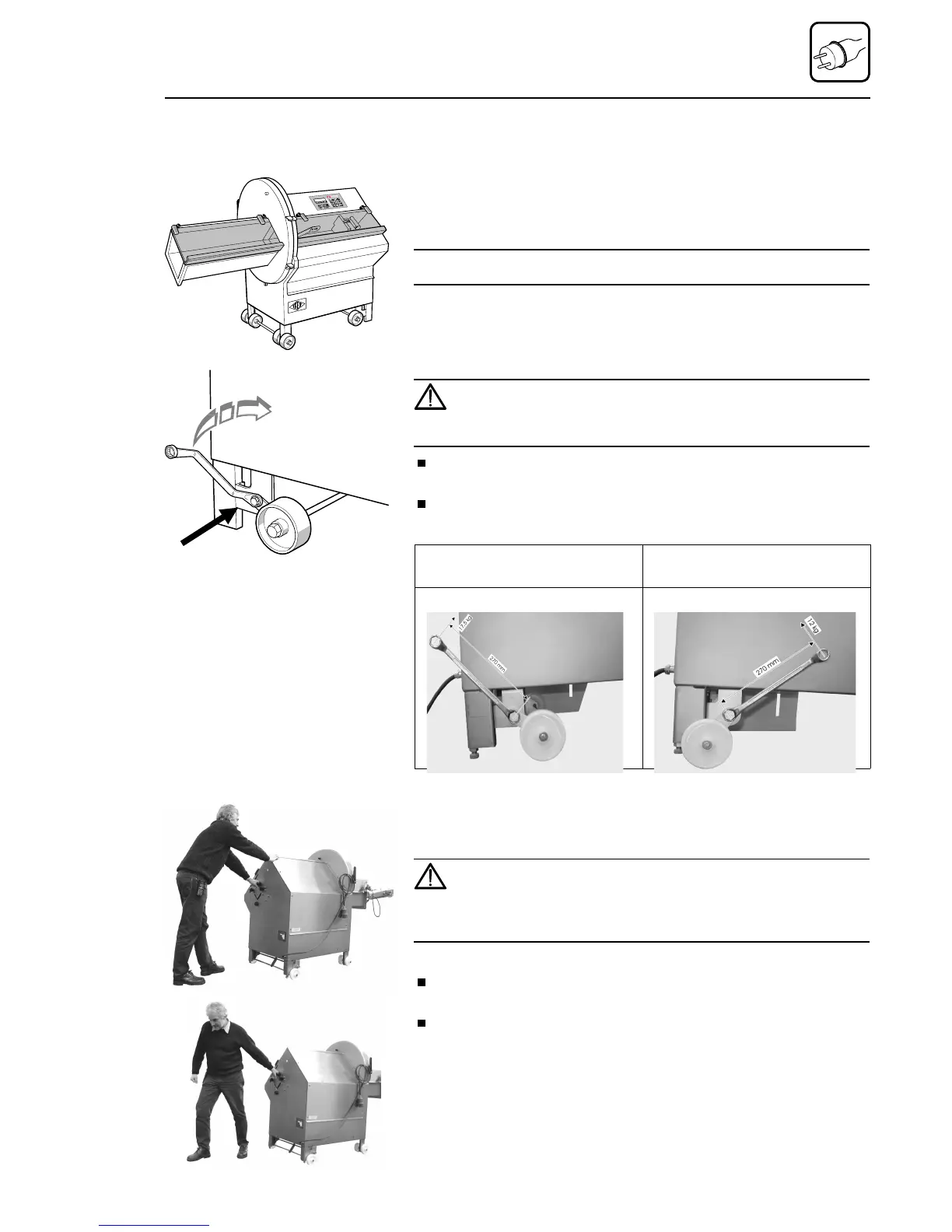

If your machine is fitted with wheels: (optional extra)
A set of wheels is available as an optional extra for the TREIF PUMA-CE
’electronic’. The wheels shown on the right in the drawing are castors.
During cutting operations, the wheels must be retracted, i.e. the
machine must be resting on its feet !
Retracting/extending wheels:
Caution: Danger of pinching.
For reasons of safety, the ring spanner must only be applied
to the axle bracket extension. (See illustration) Otherwise your
fingers could get pinched.
Place the ring spanner supplied on the hexagon nut on the axle
mounting bracket.
Extend or retract the wheels as appropriate.
force required to fold out the
running gear
force required to fold in the
running gear
Moving the machine:
Caution:
Machines with running gear must not be moved manually
across “inclines” with an angle of inclination greater than 5°.
If the machine must be moved over a steeper incline, a hand
lift or a forklift must be used.
On rising inclines, hold the machine by the handle as illustrated and
push upwards.
On falling inclines, hold the machine by the handle as illustrated and
pull downwards.
Danger of injury
Transport and erection
02/2005 123842-GB Page 19
