7.3. Removing / fitting conveyor belt
(only for dismounted conveyor)

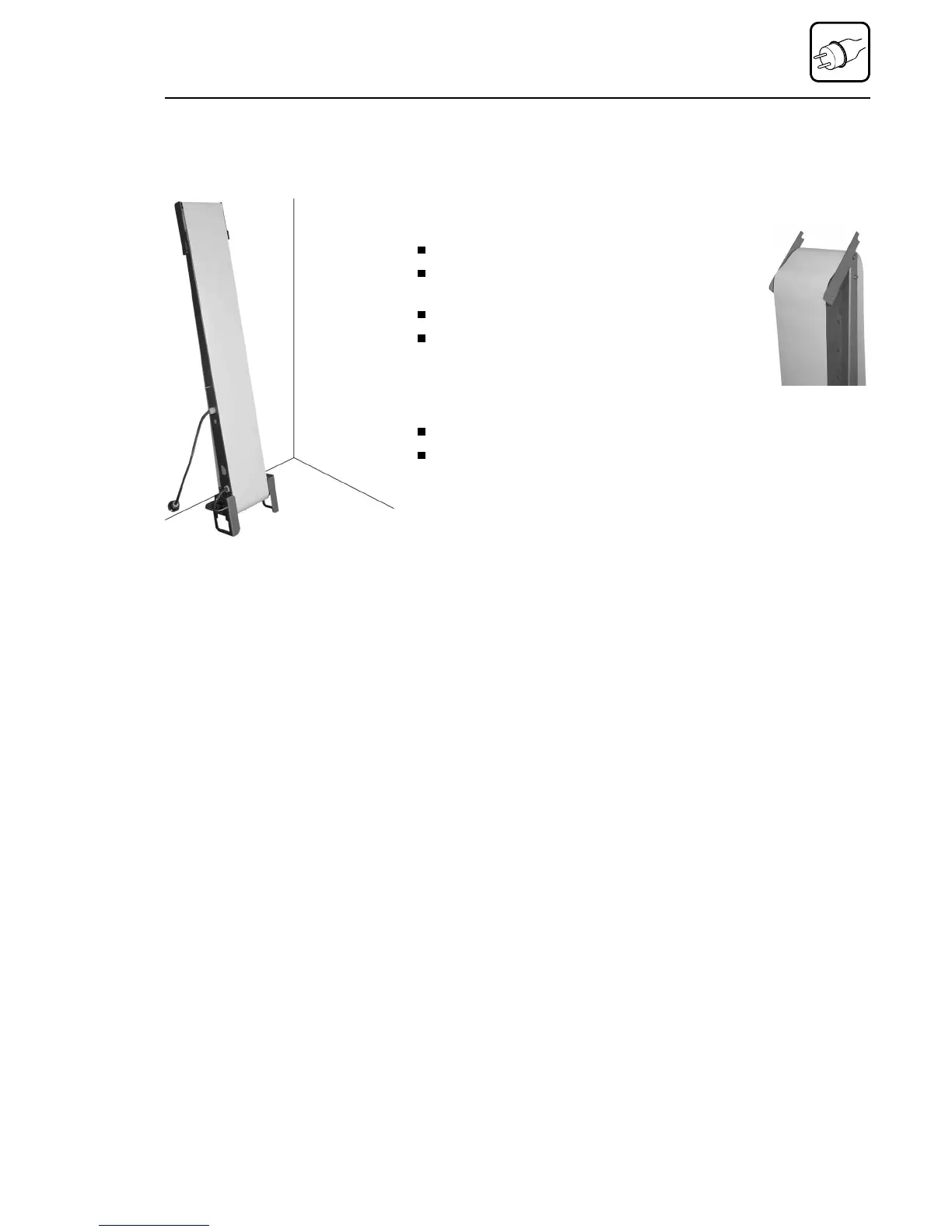

Remove conveyor belt
Dismount conveyor (cf. chapter 7.1).
Rest the conveyor belt on the holding device of
the friction-drum motor.
Tilt the roller bearing as shown.
Slant the conveyor belt and remove the belt to
the side.
Fitting conveyor belt
Fit conveyor belt
Fit roller bearing in compliance with sketch and move it upwards with
firm pressure.
If the roller bearing may be moved upwards too easily, the tension of the
conveyor belt must be readjusted (cf. chapter 15.6).
Fitting conveyor
02/2005 123842-GB Page 23
