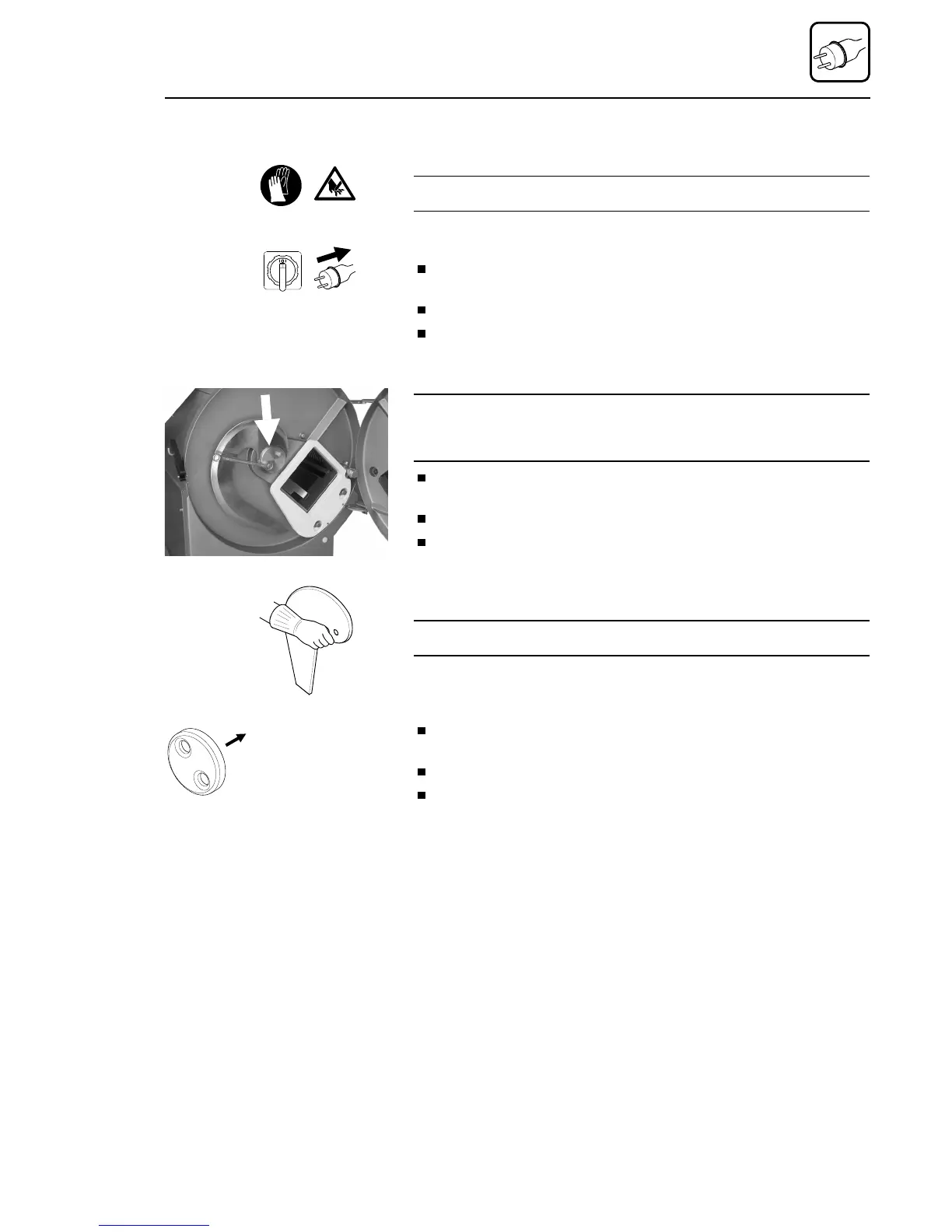

9.2. Mount / Change of knife
Always wear your personal protective clothes and equipment
described in the chapter “ Safety” when handling knifes !
Dismounting of knife:
Set the main switch to position OFF, and remove the mains plug from
the power outlet.
Dismount conveyor when fitted.
Open knife box door.
If the knife is partly covered by the counterblade, have the machine
carry out a SINGLE CUT. (cf. chapter 12.6)
If the knife continues to come to a standstill behind the counterbla-
de, the machine must not be operated any more until the knife brake
has been readjusted or changed by the aftersales services staff of
TREIF.
Loosen both hexagonal nuts (SW24) by means of the provided ring
spanner. (refer to photo).
Hold the knife with one hand and unscrew both nuts.
Remove retaining disc (arrow) and take the knife off.
Caution:
Get hold of the knife only in the way shown in the drawing !
Mounting of knife:
Place the knife on the knife shaft (wrong fitting is not possible due to
the different diameters of the mounting holes).
Place retaining disc (observe fitting position !).
Tighten hexagon nuts.
Setting up operations
02/2005 123842-GB Page 29
