14.1. Preparatory work for cleaning
For machines with a conveyor belt only
Disassemble the conveyor belt (cf. chapter 7.1.)
No water may penetrate into the plug housing when cleaning
the conveyor belt !
Remove conveyor belt (cf. chapter 7.3)

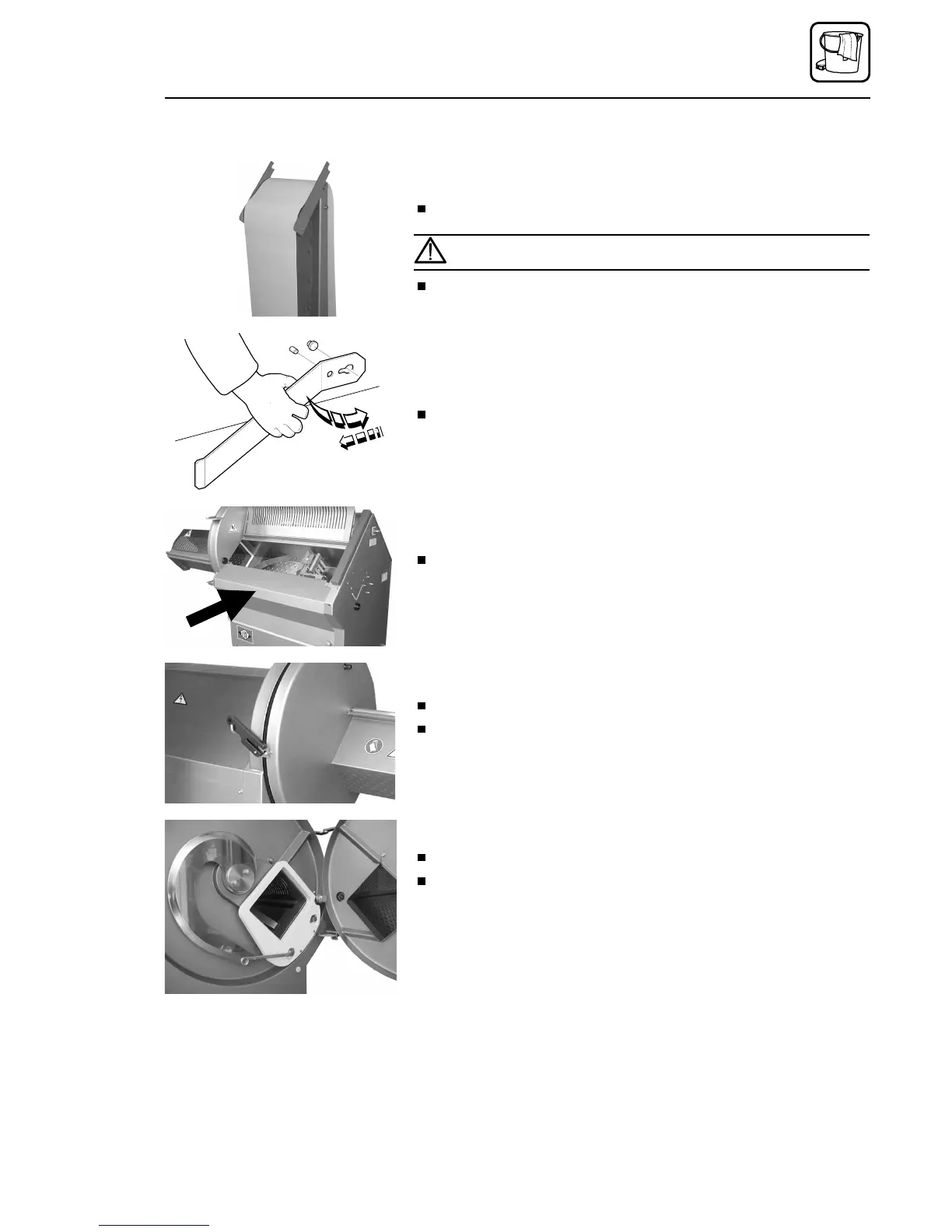

Dismounting the holding appliance:
Lift retainer away from the chamber wall slightly and pull back.
Remove the feed cover:
Use both hands to get hold of the feed cover at the upper inside edge,
and remove the unit to the top.
Open knife box door and remove the door latch:
Move the door latch and open the knife box.
Relocate the door latch and remove it.
Unscrew the counter-blade:
Unscrew the hexagonal screws 1
Remove counter-blade
ATTENTION: the counterblade is fragile. Do not drop it !
Cleaning
02/2005 123842-GB Page 63
