refer to chapter 14.1: Preparatory work for cleaning

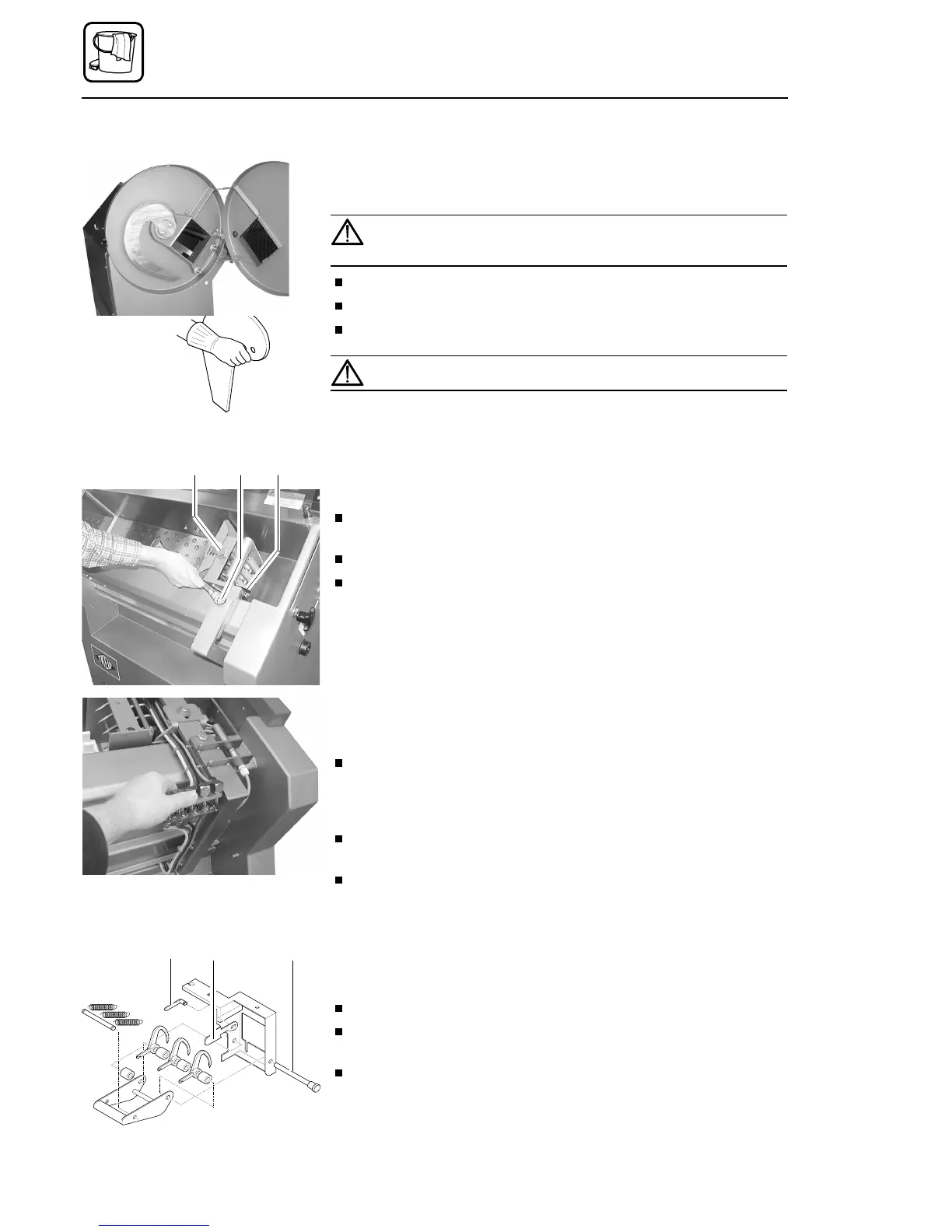

Removing the knife:
Always wear the personal protective gear prescribed in the
chapter "safety" when working in the open cutting range and
when cleaning the knife! !
Loosen both hexagonal nuts by means of the provided ring spanner.
Hold the knife with one hand and unscrew both nuts.
Remove retaining disc and take the knife off
Attention:
Get hold of the knife only in the way shown in the drawing !
Removing the product feed holder:
Raise the locking lever 3 and open the product feed holder.
(With manual cutting material holders only)
Unscrew the locking handle 1 and remove the clamp.
Lift the feed plate out of the retainer.
With pneumatic cutting material holders:
Loosen pneumatic connection.
With the ring spanner supplied, unscrew the hexagon screw 2 a few
turns.
Remove the product feed holder upwards out of the machine.
Disassembly of the product feed holder:
(With manual cutting material holders only)
Unhook the springs from the gripping spikes.
Pull out axle 3:
the product feed holder will then separate into its component parts.
Turn spindle 1 through 90° and remove locking lever 2.
1 2 3
1 2 3
Cleaning
Page 64 02/2005 123842-GB
