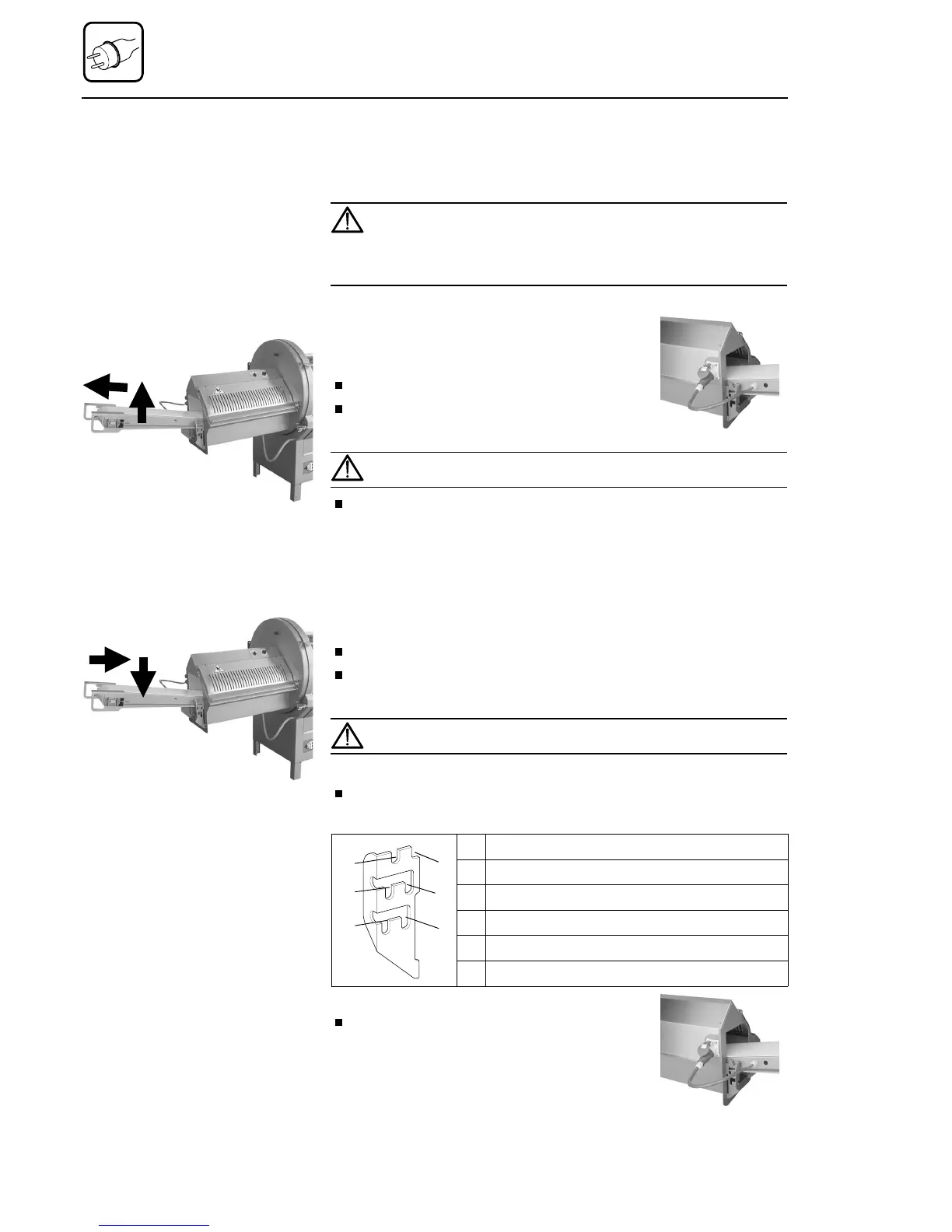

7. Fitting conveyor
(only on machines with conveyor)
Attention: DANGER OF TILTING !
When the conveyor is fitted the machine is top heavy when the
knife box door is opened !
For this reason always dismount the conveyor when you wish
to open the knife box door !
7.1. Dismounting conveyor
Close knife box door.
Disconnect the power supply plug of the
conveyor belt (refer to photo).
The power supply plug of the conveyor belt has to be removed
before the conveyor belt is disassembled (cf. drawing).
Lift conveyor slightly and draw it out of the outlet channel.
7.2. Fitting conveyor
Close knife box door.
Slide conveyor into outlet channel (observe mounting position) and
hang it in the conveyor support using the bolts at the side.
The conveyor belt has to be pushed underneath the two bolts
located on the side of the removal chamber !
Adjust the outlet height for cutting operations with and without
counterblades on the conveyor belt carrier.
1 Outlet heigh 900 mm without counterblade
2 Outlet heigh 900 mm with counterblade
3 Outlet heigh 800 mm without counterblade
4 Outlet heigh 800 mm with counterblade
5 Outlet heigh 700 mm without counterblade
6 Outlet heigh 700 mm with counterblade
Plug in the power supply plug (refer to photo).
2 1
4 3
6 5
Fitting conveyor
Page 22 02/2005 123842-GB
