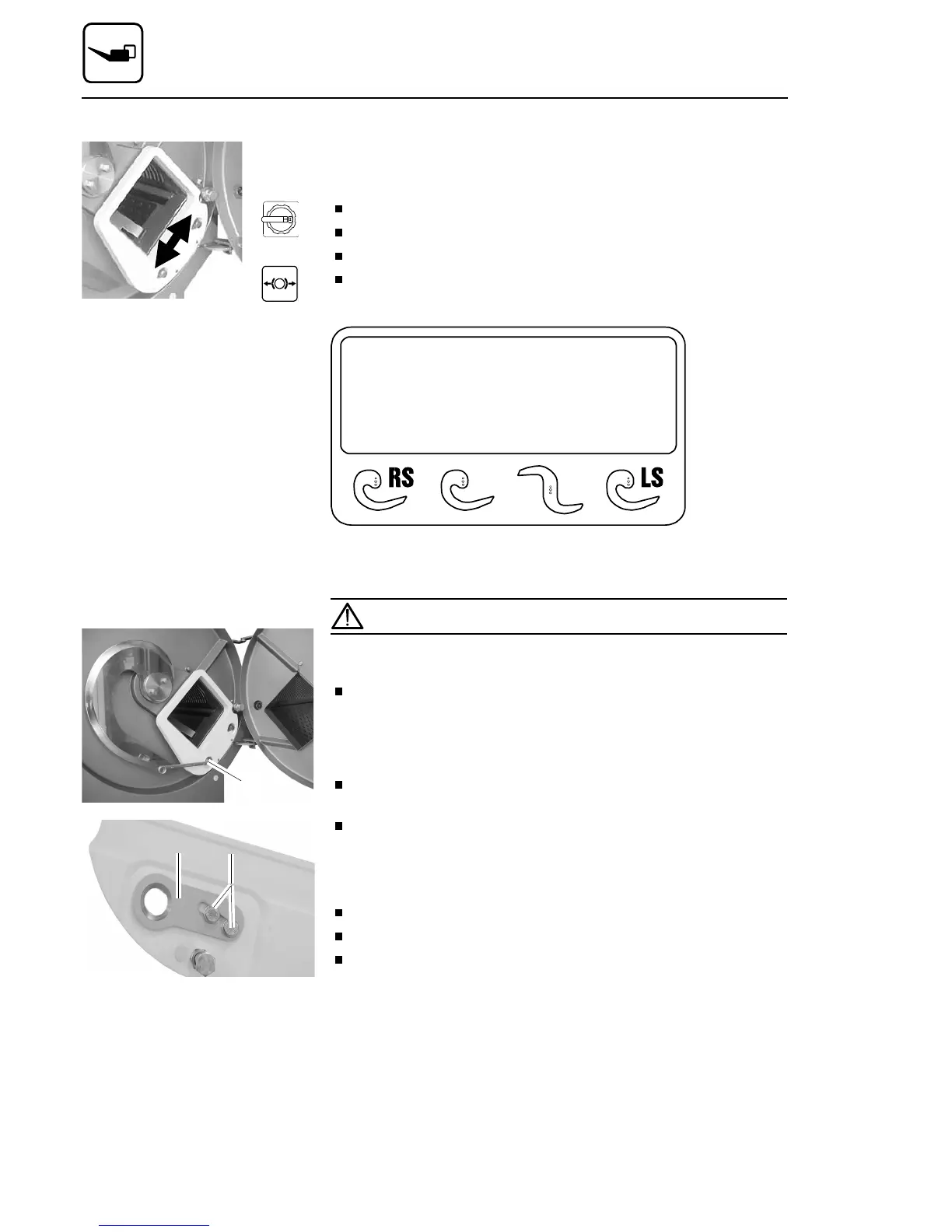

15.5. Height adjustment of the counter-blade
The height of the counter-blade can be adjusted to suit the respective
cutting material, in order to attain a better cutting result
Set the main switch to “ON”.
Dismount conveyor when fitted.
Open the knife box door.
Press the ’Brake release’ push-button:
The following indication will appear on the display:
Brake of knife
- release -
The brake of the knife motor is released, and the knife can be turned
freely.
Never touch the knife edge! Always wear the personal protecti-
ve gear specified in chapter ,,Safety“ when handling knives!
Undo collar nuts 1 and disassemble the counterblade.
Loosen both hexagon head screws 3 on the back side of the
counter-blade.
Shift locking plate 2 until the desired adjustment is achieved.
- with soft or fresh cutting material = setting "bottom"
- with firm or semi-frozen cutting material = setting "top"
Fit the counterblade correctly, and use collar nuts 1 to screw down.
Close the knife box door.
Press the “RELEASE BRAKE” key again:
The “KNIFE BRAKE RELEASED” function is cancelled.
The knife will be adjustet automatically in the correct position. After-
wards the machine is is ready for operation.
1
2 3
Maintenance
Page 76 02/2005 123842-GB
