6.4. Pneumatic connection
Pneumatic facility:
- Operating pressure: 6 bar
- Air consumption: max. 60 Ltr./min.
(Refer to label on the machine)
NOTE: The air supply must be free of oil and water !
Connection to the maintenance units takes place via a plug connector.

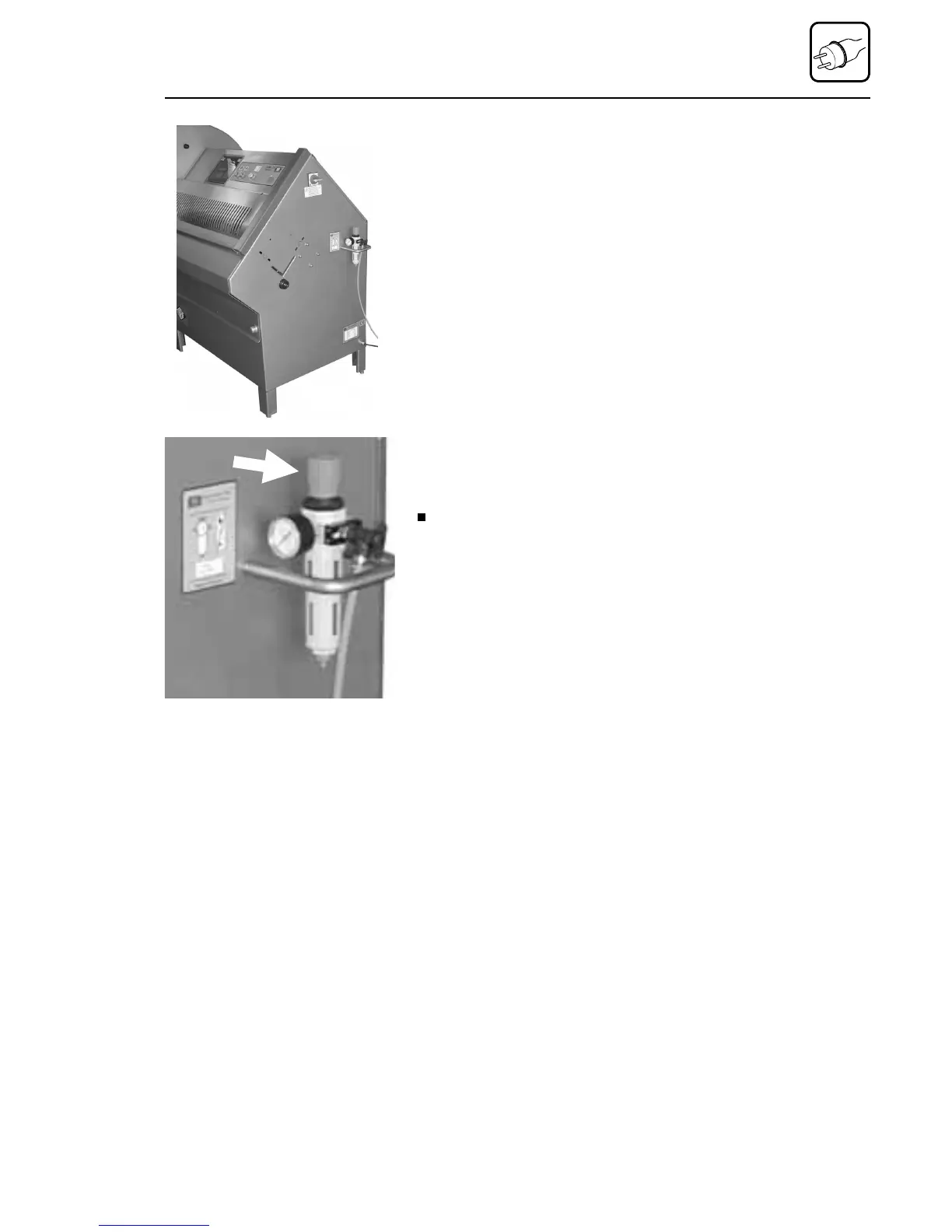

6.4.1 Adjustment/correction of operating pressure
The operating pressure of the compressed air supply must constantly be
adjusted to 6 bar. If the manometer indicator should show a different value:
Press the rotary knob (arrow) and twist until an operating pressure
of 6 bars is indicated.
Transport and erection
02/2005 123842-GB Page 21
