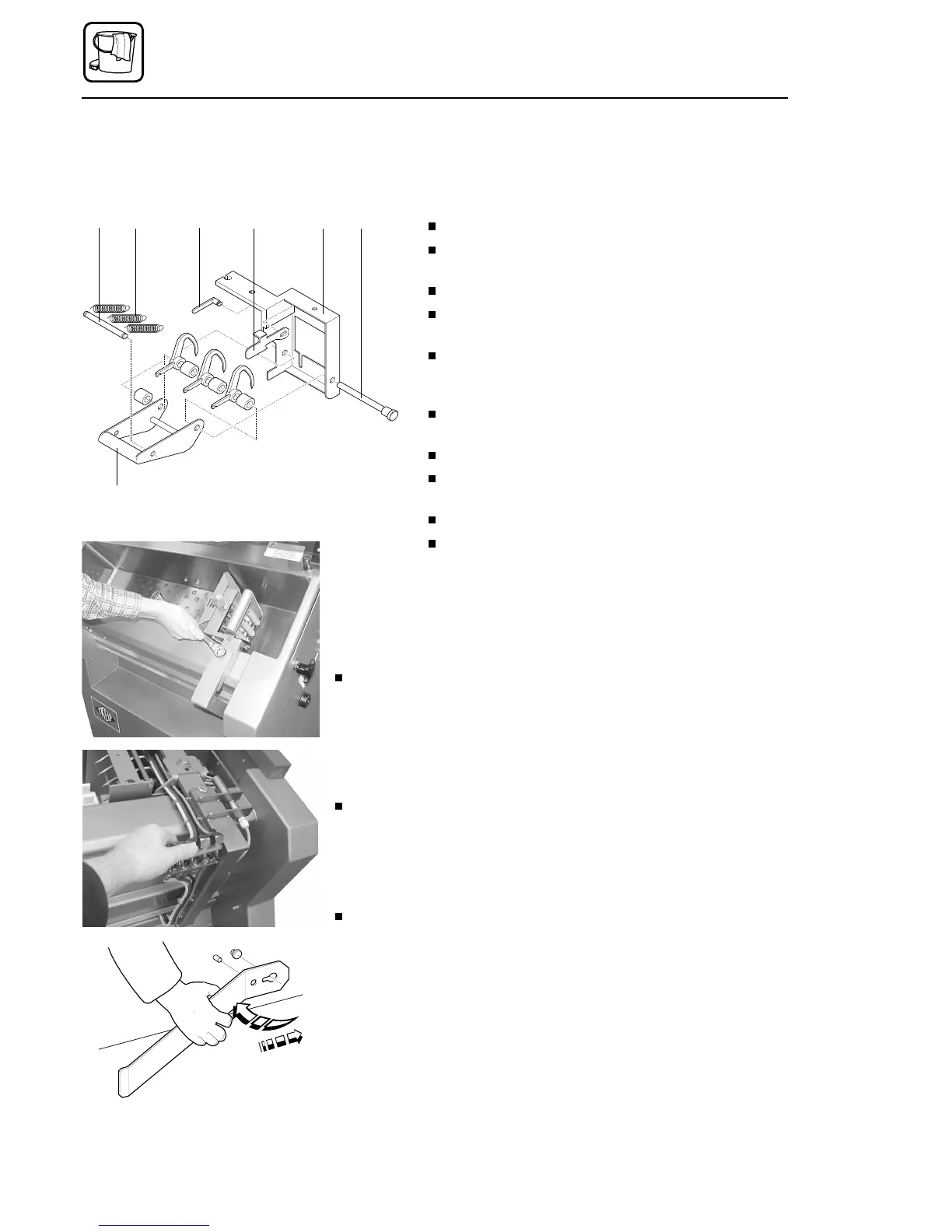

14.4. Remounting after cleaning
Assembly of product feed holder:
(With manual cutting material holders only)
Insert spindle 3 as shown in the drawing.
Install locking lever 4 and turn spindle 3
downwards.
Fit clamping lever 6 (observe correct fitting position).
Push shaft 7 into the frame 5 of the product feed
holder to a distance of a few centimetres.
In the following sequence, install a spacer, gripping
spike, spacer, gripping spike, etc. on the shaft as
shown in the drawing.
Now push the shaft 7 fully through the retaining pla-
te.
Install the springs 2 on the locking pin 1.
Place the locking pin with springs in the clamping
lever.
Hook the springs into the holes in the gripping spikes.
Raise the clamping lever 6 and secure locking lever
4.
Installing the product feed holder:
Fit the product feed holder under the retaining bar.
With the ring spanner supplied, tighten hexagon screw .
With pneumatic cutting material holders:
Reattach pneumatic connection.
Installing the clamping arm
Secure downholder as diagrammed.
1 2 3 4 5 7
6
Cleaning
Page 68 02/2005 123842-GB
